2006 Scooter YP250R - YP250R (1C03) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

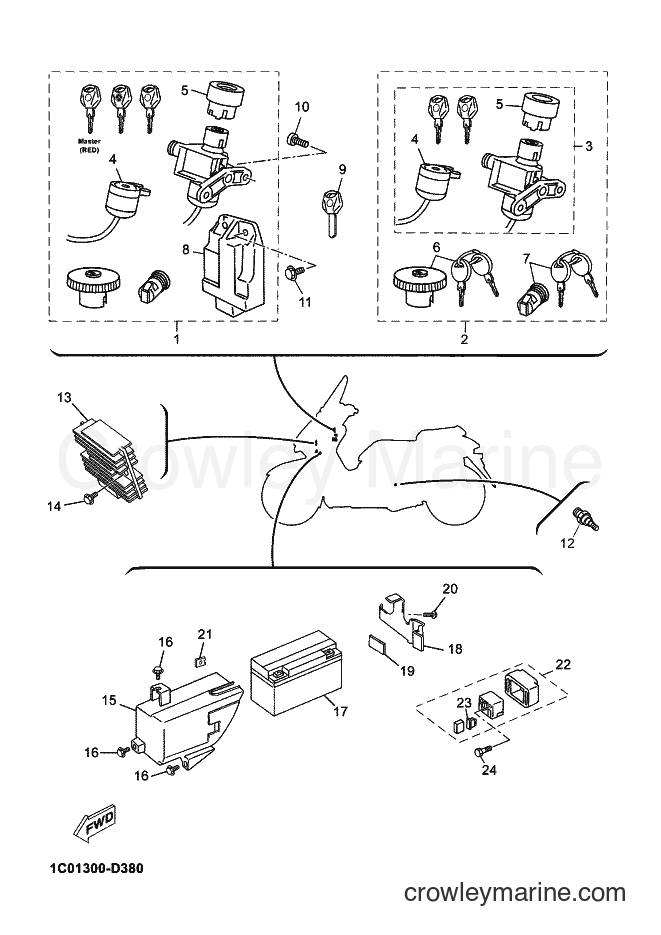

Yamaha Motors YP250R (1C03) [010] - ELECTRICAL 1
Change View:
MAIN SW. INMOBILIZER KIT
1
Yamaha Motors
MAIN SW. INMOBILIZER KIT1C0-WH250-00
Required: 1
MAIN SW. INMOBILIZER KIT
Price unavailable
. MAIN SWITCH KIT
2
Yamaha Motors
. MAIN SWITCH KIT1C0-WH25A-00
Required: 1
. MAIN SWITCH KIT
Price unavailable
. . MAIN SWITCH ASSY
3
Yamaha Motors
. . MAIN SWITCH ASSY1C0-WH25B-00
Required: 1
. . MAIN SWITCH ASSY
Price unavailable
. . .
4
Yamaha Motors
. . . 1C0-WH814-00
Required: 1
. . .
Price unavailable
. . . CAP, SWITCH
5
Yamaha Motors
. . . CAP, SWITCH1C0-H2552-00
Required: 1
. . . CAP, SWITCH
Price unavailable
. . CAP ASSY
6
Yamaha Motors
. . CAP ASSY1B9-WF461-00
Required: 1
. . CAP ASSY
Price unavailable
. . LOCK ASSY
7
Yamaha Motors
. . LOCK ASSY4MJ-F1780-01
Required: 1
. . LOCK ASSY
Price unavailable
. C.D.I. UNIT ASSY
8
Yamaha Motors
. C.D.I. UNIT ASSY1C0-H5540-00
Required: 1
. C.D.I. UNIT ASSY
Price unavailable
KEY, MAIN SWITCH
9
Yamaha Motors
KEY, MAIN SWITCH1C0-H2511-09
Required: 1
KEY, MAIN SWITCH
Price unavailable
BOLT
10
Yamaha Motors
BOLT90109-06X03
Required: 2
BOLT
Price unavailable
THERMO UNIT
12
Yamaha Motors
THERMO UNIT1C0-H3591-00
Required: 1
THERMO UNIT
Price unavailable
-15%
Rectifier & Regulator Assembly
13
Yamaha Motors
Rectifier & Regulator Assembly4XY-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$194.99
$165.74
You save $29.25
More details
BOLT, FLANGE
14
Yamaha Motors
BOLT, FLANGE9582N-06020
Required: 2
BOLT, FLANGE
Price unavailable
BOX, BATTERY 1
15
Yamaha Motors
BOX, BATTERY 11B9-H212B-01
Required: 1
BOX, BATTERY 1
Price unavailable
BOLT
16
Yamaha Motors
BOLT90109-06X05
Required: 3
BOLT
Price unavailable
BRACKET, BATTERY
18
Yamaha Motors
BRACKET, BATTERY1B9-H2128-01
Required: 1
BRACKET, BATTERY
Price unavailable
DAMPER, LOCATING 3
19
Yamaha Motors
DAMPER, LOCATING 34MJ-F4183-00
Required: 1
DAMPER, LOCATING 3
Price unavailable
BOLT
20
Yamaha Motors
BOLT9700L-05016
Required: 1
BOLT
Price unavailable
NUT, SPRING
21
Yamaha Motors
NUT, SPRING90183-05817
Required: 1
NUT, SPRING
Price unavailable
-15%
Starter Relay Assembly
22
Yamaha Motors
Starter Relay Assembly4YR-81940-02-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$152.99
$130.04
You save $22.95
More details
-15%
Fuse (30A-Bl)
23
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT
24
Yamaha Motors
BOLT9701L-06008
Required: 2
BOLT
Price unavailable
