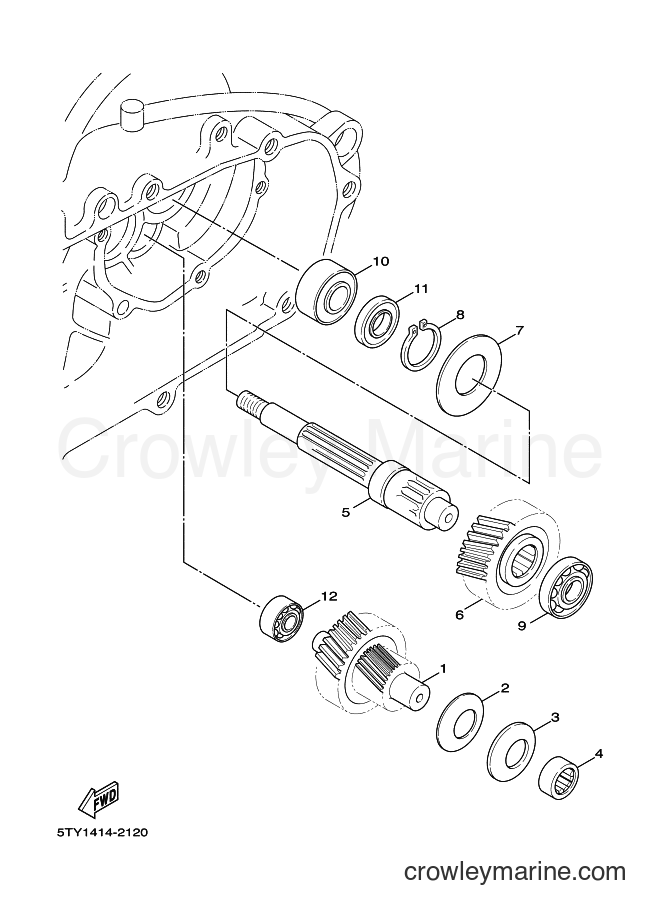

2006 Scooter XC125 - XC125 (5MLA) [040] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125 (5MLA) [040] - TRANSMISSION
Change View:
MAIN AXLE COMP.
1
Yamaha Motors
MAIN AXLE COMP.5ML-E7410-01
Required: 1
MAIN AXLE COMP.
Price unavailable
Plain Washer
2
Yamaha Motors
Plain Washer90201-15803-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$0.88
More details
WASHER, CONICAL SPRING
3
Yamaha Motors
WASHER, CONICAL SPRING90208-15801
Required: 1
WASHER, CONICAL SPRING
Price unavailable
-15%
BEARING
4
Yamaha Motors
BEARING93311-315Y2-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
AXLE, DRIVE
5
Yamaha Motors
AXLE, DRIVE5ML-E7421-01
Required: 1
AXLE, DRIVE
Price unavailable
GEAR, 1ST WHEEL
6
Yamaha Motors
GEAR, 1ST WHEEL5ML-E7211-01
Required: 1
GEAR, 1ST WHEEL
Price unavailable
WASHER, CONICAL SPRING
7
Yamaha Motors
WASHER, CONICAL SPRING90208-25800
Required: 1
WASHER, CONICAL SPRING
Price unavailable
-15%
Circle Clip
8
Yamaha Motors
Circle Clip99009-25400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BEARING
9
Yamaha Motors
BEARING93306-303Y8-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$10.52
More details
-15%
BEARING
10
Yamaha Motors
BEARING93306-204YH-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
BEARING
12
Yamaha Motors
BEARING93306-30113
Required: 1
BEARING
Price unavailable
