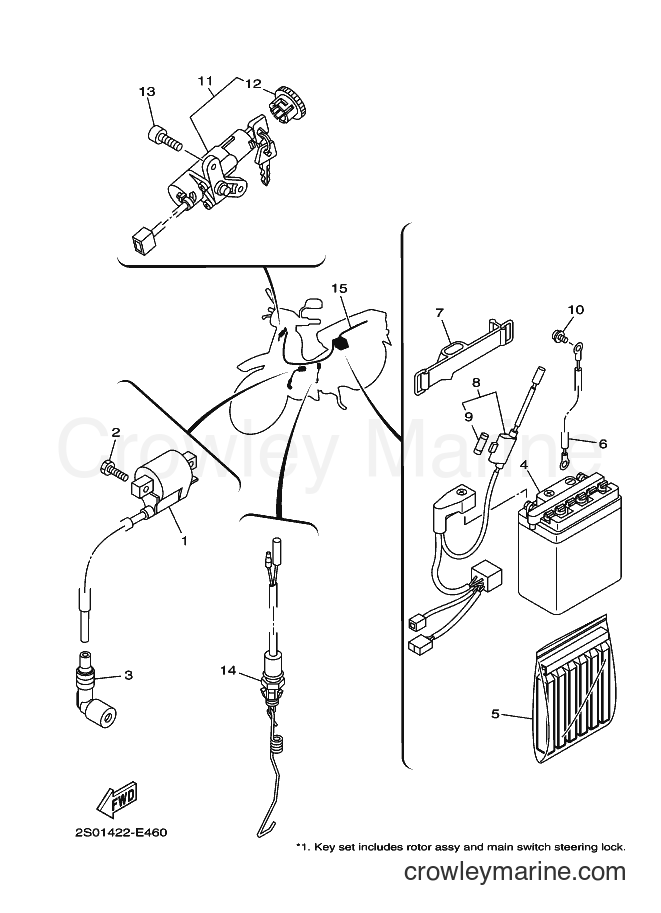

Yamaha Motors T110SE (2S01) [010] - ELECTRICAL 1
Change View:
IGNITION COIL ASSY
1
Yamaha Motors
IGNITION COIL ASSY5VT-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-15%
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG CAP ASSY
3
Yamaha Motors
PLUG CAP ASSY5VT-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
BATTERY ASSY (GS 12N5-3B)
4
Yamaha Motors
BATTERY ASSY (GS 12N5-3B)5HU-H2110-10
Required: 1
BATTERY ASSY (GS 12N5-3B)
Price unavailable
BOTTLE, ACID
5
Yamaha Motors
BOTTLE, ACID5VD-H2101-00
Required: 1
BOTTLE, ACID
Price unavailable
WIRE, MINUS LEAD
6
Yamaha Motors
WIRE, MINUS LEAD5VT-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
BAND, BATTERY
7
Yamaha Motors
BAND, BATTERY5VT-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
FUSE HOLDER ASSY
8
Yamaha Motors
FUSE HOLDER ASSY2S0-H2150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
FUSE (10A)
9
Yamaha Motors
FUSE (10A)5VT-H2151-00
Required: 1
FUSE (10A)
Price unavailable
SCREW,WITH WASHER
10
Yamaha Motors
SCREW,WITH WASHER97607-06210
Required: 1
SCREW,WITH WASHER
Price unavailable
MAIN SWITCH STEERING LOCK
11
Yamaha Motors
MAIN SWITCH STEERING LOCK5VT-H2501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
KEY SET
11
Yamaha Motors
KEY SET5VT-XH25A-00
Required: 1
KEY SET
Price unavailable
CAP, SWITCH
12
Yamaha Motors
CAP, SWITCH5VT-H2552-00
Required: 1
CAP, SWITCH
Price unavailable
-15%
Bolt (4MY)
13
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
STOP SWITCH ASSY
14
Yamaha Motors
STOP SWITCH ASSY5VT-H2530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
15
Yamaha Motors
WIRE HARNESS ASSY2S1-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
15
Yamaha Motors
WIRE HARNESS ASSY2S0-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
