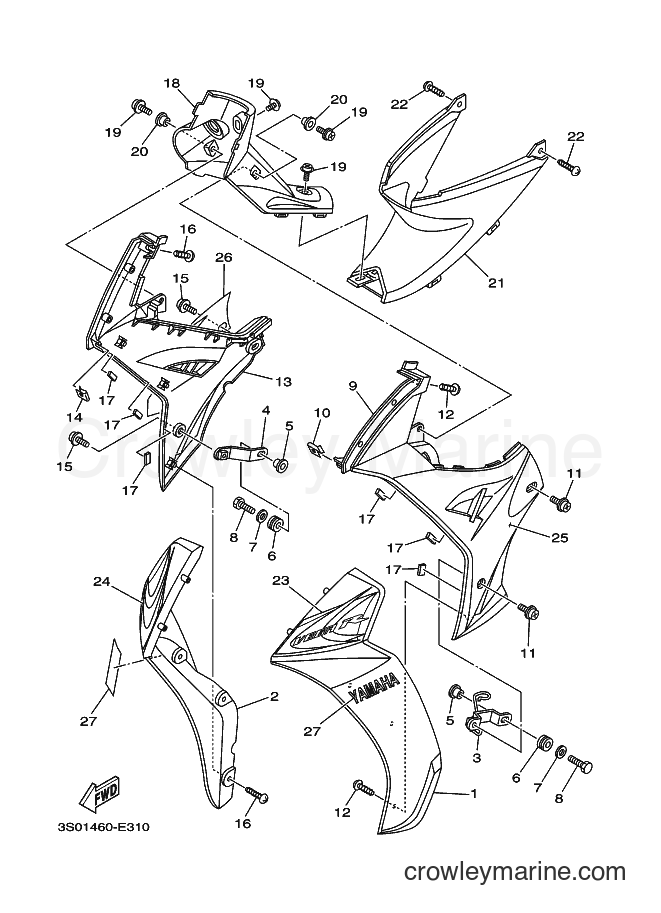

2006 Scooter T110LSE - T110LSE (4D71) [010] LEG SHIELD diagram
![Yamaha Motors T110LSE (4D71) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/2kijt3LC.png)
1
Yamaha Motors
LEG SHIELD 14D7-F8311-00-P0
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
LEG SHIELD 24D7-F8312-00-P0
Required: 1
LEG SHIELD 2
Price unavailable
3
Yamaha Motors
STAY 13S0-F8321-00
Required: 1
STAY 1
Price unavailable
4
Yamaha Motors
STAY 23S0-F8322-00
Required: 1
STAY 2
Price unavailable
5
Yamaha Motors
COLLAR90387-06841
Required: 2
COLLAR
Price unavailable
-15%
$8.07
You save $1.42
-15%
7
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
$3.02
You save $0.53
-15%
$3.45
You save $0.61
9
Yamaha Motors
COVER, LOWER4D7-F8385-00-P0
Required: 1
COVER, LOWER
Price unavailable
-50%
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
11
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
13
Yamaha Motors
COVER, UNDER4D7-F8395-00-P0
Required: 1
COVER, UNDER
Price unavailable
-50%
14
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
15
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
17
Yamaha Motors
DAMPER5LM-F8371-00
Required: 6
DAMPER
Price unavailable
18
Yamaha Motors
COVER 13S0-F842M-00
Required: 1
COVER 1
Price unavailable
19
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 4
SCREW, WITH WASHER
Price unavailable
20
Yamaha Motors
COLLAR90387-06846
Required: 2
COLLAR
Price unavailable
21
Yamaha Motors
COVER 23S0-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
23
Yamaha Motors
EMBLEM3S0-F8368-00
Required: 1
EMBLEM
Price unavailable
24
Yamaha Motors
GRAPHIC 143S0-F831Y-00
Required: 1
GRAPHIC 14
Price unavailable
25
Yamaha Motors
GRAPHIC 13S0-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
26
Yamaha Motors
GRAPHIC 23S0-F8392-00
Required: 1
GRAPHIC 2
Price unavailable
-15%
27
Yamaha Motors
YAMAHA EMBLEM (BLACK)99244-00120-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 99234-00120-00
$15.72
You save $2.77
-15%
27
Yamaha Motors
White Emblem99241-00120-00
Required: 2
EMBLEM, YAMAHA
Supersedes: 99231-00120-00
$22.94
You save $4.05
-15%
27
Yamaha Motors
99246-00120-0099236-00120-00
Required: 2
EMBLEM, YAMAHA
No longer availableSearch Nationwide Inventory
$3.36
You save $0.59
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
