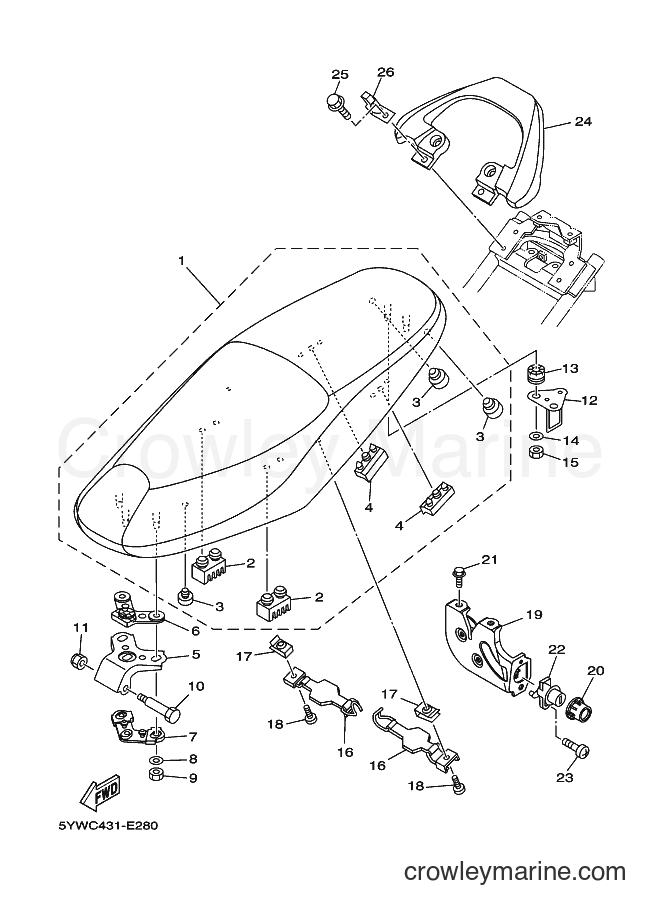

Yamaha Motors JC-110D (5YWC) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5YW-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. DAMPER, SEAT
2
Yamaha Motors
. DAMPER, SEAT4TT-F4723-00
Required: 2
. DAMPER, SEAT
Price unavailable
. PAD, SEAT
3
Yamaha Motors
. PAD, SEAT2JK-F4741-00
Required: 3
. PAD, SEAT
Price unavailable
. DAMPER, SEAT
4
Yamaha Motors
. DAMPER, SEAT5LN-F4747-00
Required: 2
. DAMPER, SEAT
Price unavailable
HINGE, SEAT
5
Yamaha Motors
HINGE, SEAT5LN-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
DAMPER, SEAT
6
Yamaha Motors
DAMPER, SEAT5LN-F4737-00
Required: 1
DAMPER, SEAT
Price unavailable
PAD, SEAT 2
7
Yamaha Motors
PAD, SEAT 25LN-F4763-00
Required: 1
PAD, SEAT 2
Price unavailable
WASHER, PLATE
8
Yamaha Motors
WASHER, PLATE90201-068N7
Required: 3
WASHER, PLATE
Price unavailable
-15%
Nut
9
Yamaha Motors
Nut95317-06600-00
Required: 3
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
BOLT
10
Yamaha Motors
BOLT90109-06809
Required: 1
BOLT
Price unavailable
NUT
11
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
BRACKET, SEAT
12
Yamaha Motors
BRACKET, SEAT5LN-F4728-00
Required: 1
BRACKET, SEAT
Price unavailable
GROMMET
13
Yamaha Motors
GROMMET90480-14872
Required: 2
GROMMET
Price unavailable
-15%
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
HOOK, SEAT
16
Yamaha Motors
HOOK, SEAT5TN-F4754-00
Required: 2
HOOK, SEAT
Price unavailable
-15%
Spring Nut
17
Yamaha Motors
Spring Nut90183-05073-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
-15%
Bind Screw
18
Yamaha Motors
Bind Screw98907-05014-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
SEAT LOCK ASSY
19
Yamaha Motors
SEAT LOCK ASSY4TT-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
COVER
20
Yamaha Motors
COVER5NM-F4796-00
Required: 1
COVER
Price unavailable
ROTOR ASSY
22
Yamaha Motors
ROTOR ASSY5LN-F4799-00
Required: 1
ROTOR ASSY
Price unavailable
-15%
Pan Head Screw
23
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
HANDLE, SEAT
24
Yamaha Motors
HANDLE, SEAT5LN-F4773-00-P1
Required: 1
HANDLE, SEAT
Price unavailable
HANDLE, SEAT
24
Yamaha Motors
HANDLE, SEAT5LN-F4773-00-P0
Required: 1
HANDLE, SEAT
Price unavailable
HANGER, HELMET
26
Yamaha Motors
HANGER, HELMET5LN-F1398-00
Required: 2
HANGER, HELMET
Price unavailable
