2006 Scooter JC-110ED - JC-110ED (5YWD) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

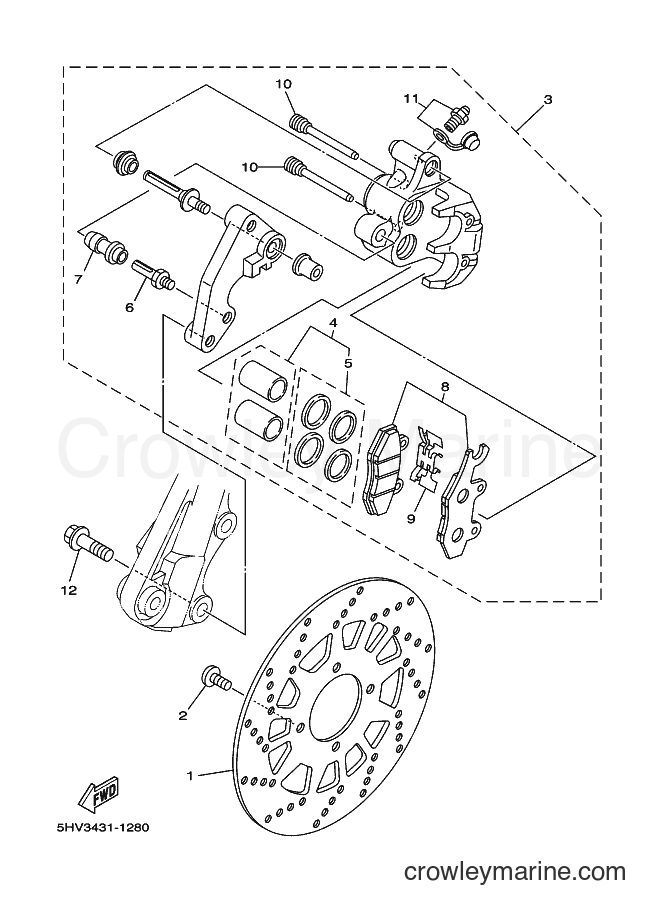

Yamaha Motors JC-110ED (5YWD) [010] - FRONT BRAKE CALIPER

Change View:

Yamaha Motors

DISK, BRAKE (RIGHT)5TN-F582U-00

Required: 1

DISK, BRAKE (RIGHT)

Price unavailable

-15%

Yamaha Motors

BOLT90109-084F7-00

Required: 4

BOLT

~~$10.49~~

$8.92

You save $1.57

More details

Yamaha Motors

CALIPER ASSY (RIGHT)5HV-F580U-00

Required: 1

CALIPER ASSY (RIGHT)

Price unavailable

Yamaha Motors

. PISTON ASSY, CALIPER5BU-WF057-00

Required: 1

. PISTON ASSY, CALIPER

Price unavailable

Yamaha Motors

. . CALIPER SEAL KIT3LC-WF047-50

Required: 1

. . CALIPER SEAL KIT

Price unavailable

Yamaha Motors

. BOLT3SP-F5926-51

Required: 1

. BOLT

Price unavailable

Yamaha Motors

. BOOT 21UY-F5937-51

Required: 1

. BOOT 2

Price unavailable

Yamaha Motors

. BRAKE PAD KIT 24TT-F0046-00

Required: 1

. BRAKE PAD KIT 2

Price unavailable

Yamaha Motors

. SPRING, PAD3LD-F5934-01

Required: 2

. SPRING, PAD

Price unavailable

Yamaha Motors

. PIN, PAD3LD-F5924-00

Required: 2

. PIN, PAD

Price unavailable

Yamaha Motors

. BLEED SCREW KIT1UY-WF048-50

Required: 1

. BLEED SCREW KIT

Price unavailable

Yamaha Motors

BOLT, FLANGE90105-10868

Required: 2

BOLT, FLANGE

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
