2006 Scooter JC-110ED - JC-110ED (5YWD) [010] FLASHER LIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

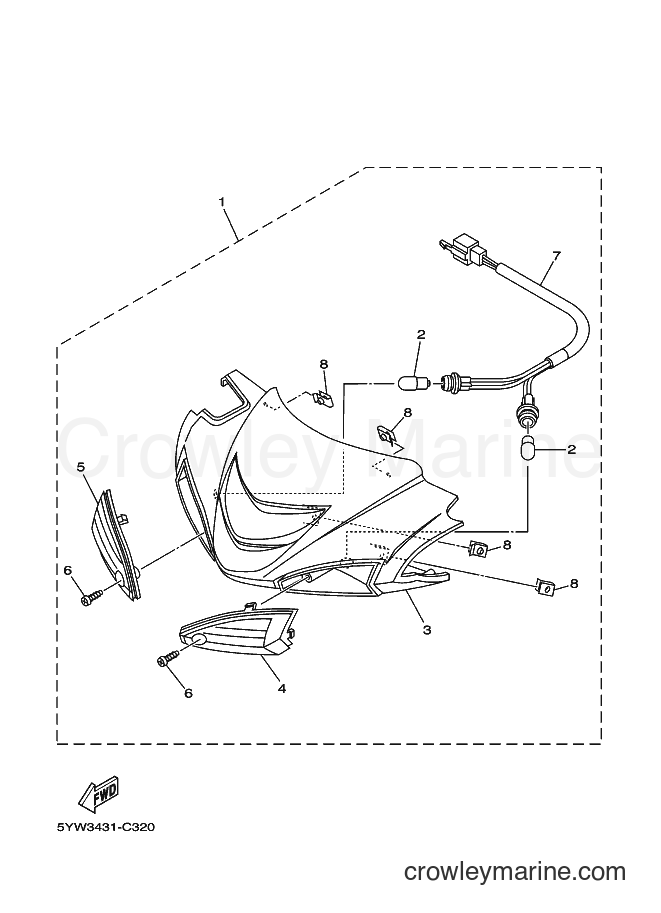

Yamaha Motors JC-110ED (5YWD) [010] - FLASHER LIGHT

Change View:

Yamaha Motors

FRONT FLASHER LIGHT ASSY 15YW-H3301-30-P1

Required: 1

FRONT FLASHER LIGHT ASSY 1

Price unavailable

Yamaha Motors

FRONT FLASHER LIGHT ASSY 15YW-H3301-20-P0

Required: 1

FRONT FLASHER LIGHT ASSY 1

Price unavailable

Yamaha Motors

. BULB, FLASHER (12V-10W)5HV-H3311-00

Required: 2

. BULB, FLASHER (12V-10W)

Price unavailable

Yamaha Motors

. COVER, HANDLEBAR UPPER 15YW-F6143-01-P2

Required: 1

. COVER, HANDLEBAR UPPER 1

Price unavailable

Yamaha Motors

. COVER, HANDLEBAR UPPER 15YW-F6143-01-P1

Required: 1

. COVER, HANDLEBAR UPPER 1

Price unavailable

Yamaha Motors

. COVER, HANDLEBAR UPPER 15YW-F6143-10-P1

Required: 1

. COVER, HANDLEBAR UPPER 1

Price unavailable

Yamaha Motors

. LENS, FLASHER5YW-H3332-10

Required: 1

. LENS, FLASHER

Price unavailable

Yamaha Motors

. LENS, FLASHER 25YW-H3342-10

Required: 1

. LENS, FLASHER 2

Price unavailable

Yamaha Motors

. SCREW, TAPPING9770L-40612

Required: 2

. SCREW, TAPPING

Price unavailable

Yamaha Motors

. CORD ASSY5LL-H4312-00

Required: 1

. CORD ASSY

Price unavailable

-50%

Yamaha Motors

Spring Nut90183-05042-00

Required: 4

. NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.50

You save $0.50

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2006 Scooter JC-110ED - JC-110ED (5YWD) [010] FLASHER LIGHT diagram
