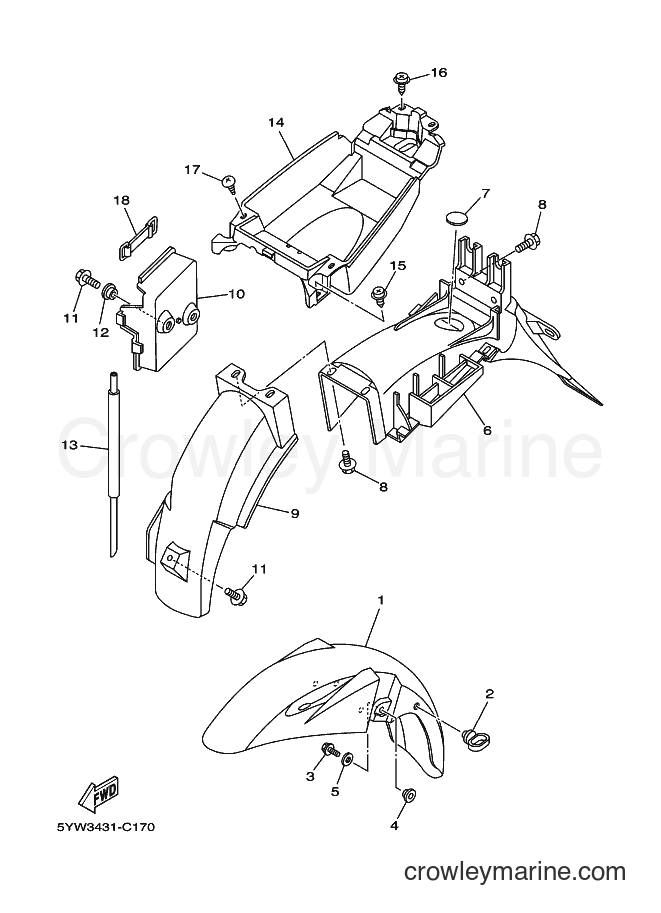

2006 Scooter JC-110D - JC-110D (5YWC) [010] FENDER diagram
![Yamaha Motors JC-110D (5YWC) [010] - FENDER](https://cdn.crowleymarine.com/yamaha/st3fvtCg.png)
1
Yamaha Motors
FENDER, FRONT5YW-F1511-00-P9
Required: 1
FENDER, FRONT
Price unavailable
1
Yamaha Motors
FENDER, FRONT5YW-F1511-00-P0
Required: 1
FENDER, FRONT
Price unavailable
2
Yamaha Motors
HOLDER, CABLE5R7-F1518-00
Required: 1
HOLDER, CABLE
Price unavailable
3
Yamaha Motors
BOLT, FLANGE9580N-06016
Required: 4
BOLT, FLANGE
Price unavailable
4
Yamaha Motors
COLLAR90387-06846
Required: 4
COLLAR
Price unavailable
-15%
5
Yamaha Motors
Plate Washer90201-06557-00
Required: 4
WASHER, PLATE
$3.02
You save $0.53
6
Yamaha Motors
FENDER, REAR5LN-F1611-00
Required: 1
FENDER, REAR
Price unavailable
7
Yamaha Motors
COVER 22JH-F139R-00
Required: 1
COVER 2
Price unavailable
-15%
8
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
9
Yamaha Motors
GUARD, FLAP5TN-F1642-00
Required: 1
GUARD, FLAP
Price unavailable
10
Yamaha Motors
BOX, BATTERY5TN-F177G-00
Required: 1
BOX, BATTERY
Price unavailable
-15%
11
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
12
Yamaha Motors
COLLAR90387-06832
Required: 2
COLLAR
Price unavailable
13
Yamaha Motors
HOSE (L350)90445-08816
Required: 1
HOSE (L350)
Price unavailable
14
Yamaha Motors
BOX5LN-F160E-00
Required: 1
BOX
Price unavailable
15
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
16
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
-15%
17
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
18
Yamaha Motors
BAND ASSY2W8-H2130-00
Required: 1
BAND ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
