2006 Scooter JCA-110E - JCA-110E (5YWE) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

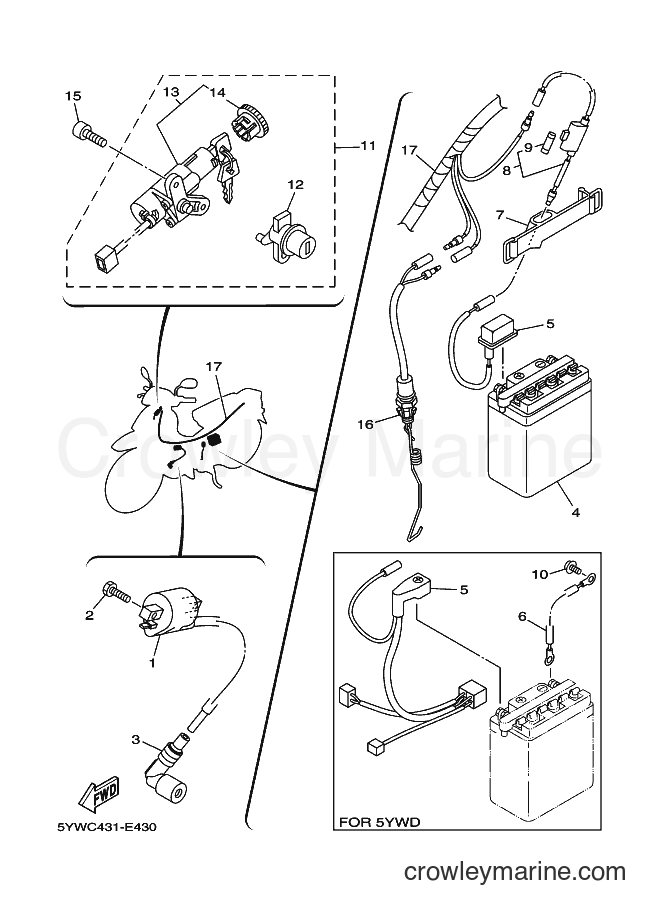

Yamaha Motors JCA-110E (5YWE) [010] - ELECTRICAL 1
Change View:
IGNITION COIL ASSY
1
Yamaha Motors
IGNITION COIL ASSY5YW-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-15%
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG CAP ASSY
3
Yamaha Motors
PLUG CAP ASSY5HV-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
BATTERY ASSY (GM5Z-3B)
4
Yamaha Motors
BATTERY ASSY (GM5Z-3B)4LY-H2110-00
Required: 1
BATTERY ASSY (GM5Z-3B)
Price unavailable
WIRE, PLUS LEAD
5
Yamaha Motors
WIRE, PLUS LEAD5TN-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, PLUS LEAD
5
Yamaha Motors
WIRE, PLUS LEAD4VJ-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, MINUS LEAD
6
Yamaha Motors
WIRE, MINUS LEAD5TN-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
BAND, BATTERY
7
Yamaha Motors
BAND, BATTERY5TN-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
FUSE HOLDER ASSY
8
Yamaha Motors
FUSE HOLDER ASSY5TN-H2150-00
Required: 1
FUSE HOLDER ASSY
Price unavailable
SCREW,WITH WASHER
10
Yamaha Motors
SCREW,WITH WASHER97607-06210
Required: 1
SCREW,WITH WASHER
Price unavailable
MAIN SW. STRG. LOCK SUB ASSY.
11
Yamaha Motors
MAIN SW. STRG. LOCK SUB ASSY.5TN-XH250-10
Required: 1
MAIN SW. STRG. LOCK SUB ASSY.
Price unavailable
. ROTOR ASSY
12
Yamaha Motors
. ROTOR ASSY5LN-F4799-00
Required: 1
. ROTOR ASSY
Price unavailable
. MAIN SWITCH STEERING LOCK
13
Yamaha Motors
. MAIN SWITCH STEERING LOCK5TN-H2501-00
Required: 1
. MAIN SWITCH STEERING LOCK
Price unavailable
. . CAP, SWITCH
14
Yamaha Motors
. . CAP, SWITCH5LN-H2552-00
Required: 1
. . CAP, SWITCH
Price unavailable
-15%
BOLT
15
Yamaha Motors
BOLT9131M-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
STOP SWITCH ASSY
16
Yamaha Motors
STOP SWITCH ASSY5TN-H2530-02
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
17
Yamaha Motors
WIRE HARNESS ASSY5YW-H2590-30
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
17
Yamaha Motors
WIRE HARNESS ASSY5YW-H2590-40
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE HARNESS ASSY
17
Yamaha Motors
WIRE HARNESS ASSY5YW-H2590-50
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
