2006 Scooter JC-110D - JC-110D (5YWC) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

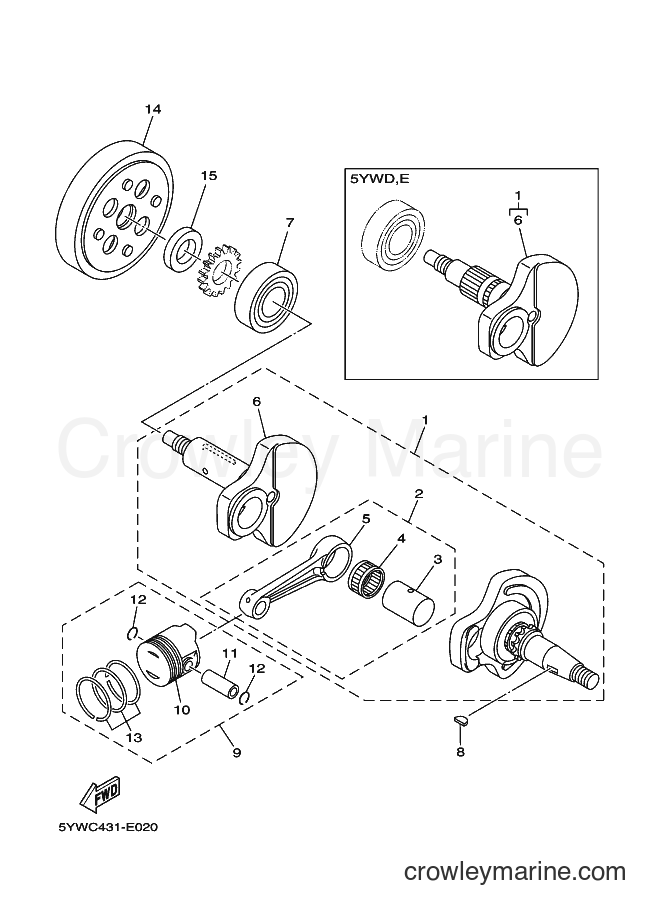

Yamaha Motors JC-110D (5YWC) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY5YW-WE140-02
Required: 1
CRANKSHAFT ASSY
Price unavailable
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY5TN-WE140-12
Required: 1
CRANKSHAFT ASSY
Price unavailable
. CONNECTING ROD ASSY
2
Yamaha Motors
. CONNECTING ROD ASSY5TN-E1650-02
Required: 1
. CONNECTING ROD ASSY
Price unavailable
. . PIN, CRANK 1
3
Yamaha Motors
. . PIN, CRANK 15HV-E1681-00
Required: 1
. . PIN, CRANK 1
Price unavailable
-15%
BEARING
4
Yamaha Motors
BEARING93310-526X0-00
Required: 1
. . BEARING
Cross Ship
Leaves in 2-5 days
$65.99
$56.09
You save $9.90
More details
Connecting Rod
5
Yamaha Motors
Connecting Rod5TN-E1651-02-00
Required: 1
. . ROD, CONNECTING
Cross Ship
Leaves in 2-5 days
$24.72
More details
. CRANK 2
6
Yamaha Motors
. CRANK 25YW-E1422-00
Required: 1
. CRANK 2
Price unavailable
. CRANK 2
6
Yamaha Motors
. CRANK 25TN-E1422-10
Required: 1
. CRANK 2
Price unavailable
BEARING
7
Yamaha Motors
BEARING93306-205YK
Required: 1
BEARING
Price unavailable
-15%
Woodruff Key
8
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
PISTON ASSY (0.50MM O/S)
9
Yamaha Motors
PISTON ASSY (0.50MM O/S)5TN-E1630-21
Required: 1
PISTON ASSY (0.50MM O/S)
Price unavailable
PISTON ASSY (STD)
9
Yamaha Motors
PISTON ASSY (STD)5TN-E1630-01
Required: 1
PISTON ASSY (STD)
Price unavailable
PISTON ASSY (1.00MM O/S)
9
Yamaha Motors
PISTON ASSY (1.00MM O/S)5TN-E1630-41
Required: 1
PISTON ASSY (1.00MM O/S)
Price unavailable
. PISTON (0.50MM O/S)
10
Yamaha Motors
. PISTON (0.50MM O/S)5TN-E1636-10
Required: 1
. PISTON (0.50MM O/S)
Price unavailable
. PISTON (STD)
10
Yamaha Motors
. PISTON (STD)5TN-E1631-10
Required: 1
. PISTON (STD)
Price unavailable
. PISTON (1.00MM O/S)
10
Yamaha Motors
. PISTON (1.00MM O/S)5TN-E1638-10
Required: 1
. PISTON (1.00MM O/S)
Price unavailable
. PIN, PISTON
11
Yamaha Motors
. PIN, PISTON4YS-E1633-00
Required: 1
. PIN, PISTON
Price unavailable
-15%
Circle Clip
12
Yamaha Motors
Circle Clip93450-14088-00
Required: 2
. CIRCLIP
2 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
. PISTON RING SET (0.50MM O/S)
13
Yamaha Motors
. PISTON RING SET (0.50MM O/S)5TN-E1605-00
Required: 1
. PISTON RING SET (0.50MM O/S)
Price unavailable
. PISTON RING SET (1.00MM O/S)
13
Yamaha Motors
. PISTON RING SET (1.00MM O/S)5TN-E1607-00
Required: 1
. PISTON RING SET (1.00MM O/S)
Price unavailable
. PISTON RING SET (STD)
13
Yamaha Motors
. PISTON RING SET (STD)5TN-E1603-00
Required: 1
. PISTON RING SET (STD)
Price unavailable
FLYWHEEL ASSY
14
Yamaha Motors
FLYWHEEL ASSY5YW-E1570-00
Required: 1
FLYWHEEL ASSY
Price unavailable
WASHER, PLATE
15
Yamaha Motors
WASHER, PLATE90201-20811
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
