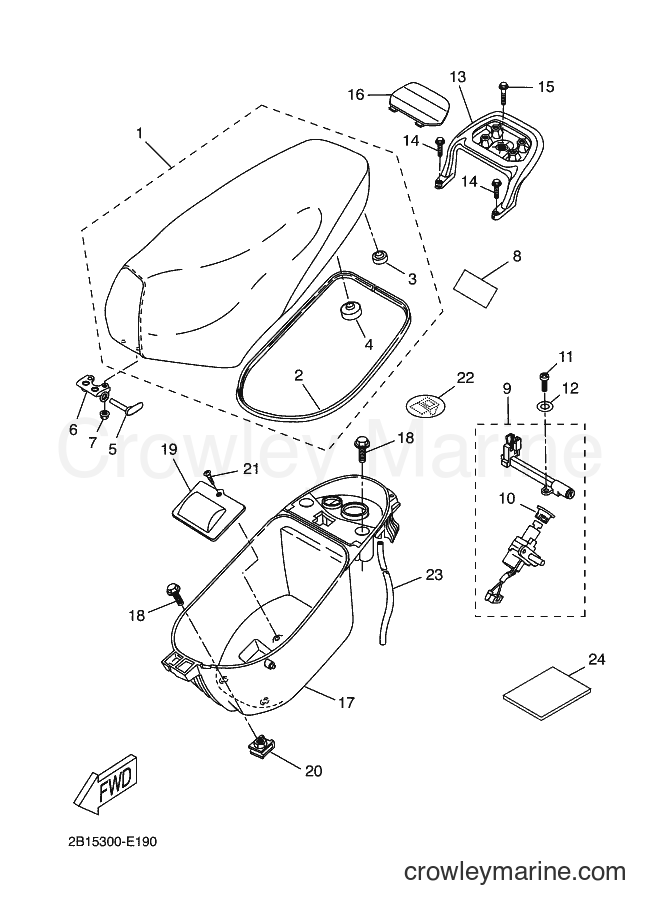

Yamaha Motors CW50RS (2B15) [040] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5FX-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAL
2
Yamaha Motors
. SEAL4SB-F475M-00
Required: 1
. SEAL
Price unavailable
-15%
Seat Pad
3
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
PIN
5
Yamaha Motors
PIN90241-10X00
Required: 1
PIN
Price unavailable
HINGE, SEAT
6
Yamaha Motors
HINGE, SEAT4CU-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
Nut
7
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
LABEL 1
8
Yamaha Motors
LABEL 15RJ-F4875-01
Required: 1
LABEL 1
Price unavailable
KEY SET
9
Yamaha Motors
KEY SET1B0-H2021-00
Required: 1
KEY SET
Price unavailable
-15%
Cap
10
Yamaha Motors
Cap1S0-H2552-00-00
Required: 1
. CAP
Supersedes: 4VV-H2532-00-00
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
-15%
Plate Washer
12
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
CARRIER, REAR
13
Yamaha Motors
CARRIER, REAR5FX-F4842-10
Required: 1
CARRIER, REAR
Price unavailable
-15%
Washer Based Bolt
14
Yamaha Motors
Washer Based Bolt90105-06X02-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT, FLANGE
15
Yamaha Motors
BOLT, FLANGE90105-08X02
Required: 1
BOLT, FLANGE
Price unavailable
COVER 2
16
Yamaha Motors
COVER 25FX-F4846-00
Required: 1
COVER 2
Price unavailable
BOX 1
17
Yamaha Motors
BOX 14SB-F473R-02
Required: 1
BOX 1
Price unavailable
BOLT
18
Yamaha Motors
BOLT90109-06X05
Required: 4
BOLT
Price unavailable
LID 1
19
Yamaha Motors
LID 14SB-F473T-00
Required: 1
LID 1
Price unavailable
-15%
Nut
20
Yamaha Motors
Nut25G-21535-00-00
Required: 3
NUT 1
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
LABEL, CAUTION
22
Yamaha Motors
LABEL, CAUTION5DN-F415A-10
Required: 1
LABEL, CAUTION
Price unavailable
PIPE, OVERFLOW
23
Yamaha Motors
PIPE, OVERFLOW4SB-F4318-41
Required: 1
PIPE, OVERFLOW
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-P0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-G0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-S0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-H0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-F0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-E0
Required: 1
MANUAL,OWNER'S
Price unavailable
MANUAL,OWNER'S
24
Yamaha Motors
MANUAL,OWNER'S1B0-F8199-D0
Required: 1
MANUAL,OWNER'S
Price unavailable
