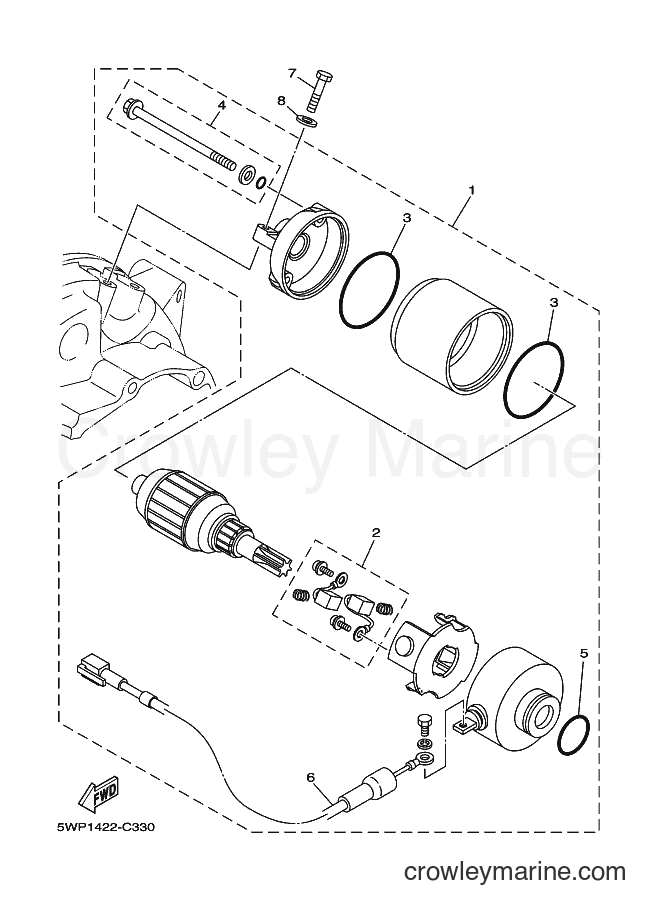

2006 Scooter AL115C - AL115C (5WP9) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors AL115C (5WP9) [010] - STARTING MOTOR

Change View:

Yamaha Motors

STARTING MOTOR ASSY5WP-H1800-00

Required: 1

STARTING MOTOR ASSY

Price unavailable

-15%

Yamaha Motors

Brush Set3KW-H1801-00-00

Required: 1

. BRUSH SET

~~$17.49~~

$14.87

You save $2.62

-15%

. O-RING

~~$9.49~~

$8.07

You save $1.42

. BOLT 2

$0.84

More details

Yamaha Motors

. O-RING 15VD-H182L-00

Required: 1

. O-RING 1

Price unavailable

Yamaha Motors

. CORD COMP.5WP-H183G-00

Required: 1

. CORD COMP.

Price unavailable

-15%

Yamaha Motors

Bolt97017-06025-00

Required: 2

BOLT

Supersedes: 97007-06025-00

~~$4.55~~

$3.87

You save $0.68

More details

-15%

Yamaha Motors

Plate Washer92907-06600-00

Required: 2

WASHER, PLATE

~~$1.00~~

$0.85

You save $0.15

More details
