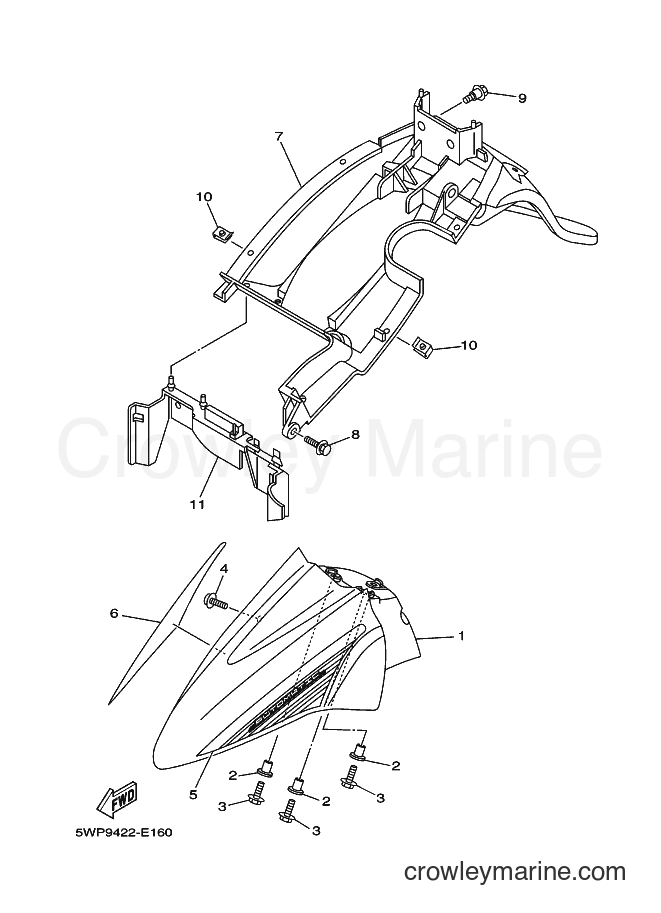

2006 Scooter AL115C - AL115C (5WP9) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors AL115C (5WP9) [010] - FENDER

Change View:

Yamaha Motors

FENDER, FRONT5WP-F1511-00-P8

Required: 1

FENDER, FRONT

Price unavailable

-50%

Yamaha Motors

COLLAR90387-07717-00

Required: 3

COLLAR

In stock

Only 4 remaining

~~$9.49~~

$4.75

You save $4.75

More details

-50%

Yamaha Motors

Flange Bolt95817-06014-00

Required: 3

BOLT, FLANGE

Supersedes: 95807-06014-00

In stock

Only 1 remaining

~~$2.80~~

$1.40

You save $1.40

More details

-15%

Yamaha Motors

Screw with Washer90159-06181-00

Required: 1

SCREW, WITH WASHER

No longer availableSearch Nationwide Inventory

~~$4.00~~

$3.40

You save $0.60

More details

Yamaha Motors

GRAPHIC 15WP-F1569-00

Required: 1

GRAPHIC 1

Price unavailable

Yamaha Motors

GRAPHIC 25WP-F1579-00

Required: 1

GRAPHIC 2

Price unavailable

Yamaha Motors

FENDER, REAR5WP-F1611-00

Required: 1

FENDER, REAR

Price unavailable

-15%

Yamaha Motors

Bolt with Washer90119-06242-00

Required: 1

BOLT, WITH WASHER

Supersedes: 90119-06044-00

~~$8.49~~

$7.22

You save $1.27

-15%

BOLT

~~$3.10~~

$2.63

You save $0.47

More details

Yamaha Motors

NUT, SPRING90183-050A1

Required: 4

NUT, SPRING

Price unavailable

Yamaha Motors

FLAP5WP-F1621-00

Required: 1

FLAP

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
