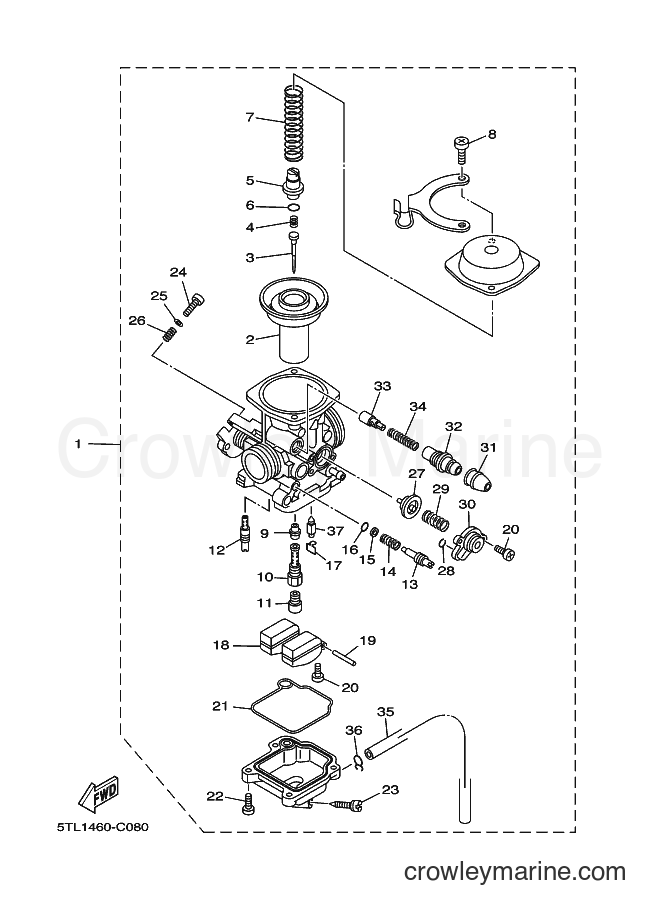

2006 Scooter AL115C - AL115C (5WP9) [010] CARBURETOR diagram
![Yamaha Motors AL115C (5WP9) [010] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/nIPaja5Z.png)
1
Yamaha Motors
CARBURETOR ASSY 15WP-E4901-01
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Yamaha Motors
. DIAPHRAGM ASSY5TL-E4940-00
Required: 1
. DIAPHRAGM ASSY
Price unavailable
3
Yamaha Motors
. NEEDLE5TL-E4116-00
Required: 1
. NEEDLE
Price unavailable
4
Yamaha Motors
. SPRING, THROTTLE STOP5TL-E4133-00
Required: 1
. SPRING, THROTTLE STOP
Price unavailable
5
Yamaha Motors
. SEAT, SPRING5TL-E4936-00
Required: 1
. SEAT, SPRING
Price unavailable
-15%
$8.07
You save $1.42
7
Yamaha Motors
. SPRING, DIAPHRAGM5TL-E4933-00
Required: 1
. SPRING, DIAPHRAGM
Price unavailable
8
Yamaha Motors
. SCREW, PAN HEAD5TL-E4D25-00
Required: 2
. SCREW, PAN HEAD
Price unavailable
9
Yamaha Motors
. JET, NEEDLE5TL-E4947-00
Required: 1
. JET, NEEDLE
Price unavailable
10
Yamaha Motors
. PIPE, MAIN BREED5TL-E414G-00
Required: 1
. PIPE, MAIN BREED
Price unavailable
11
Yamaha Motors
. JET, MAIN (#110)5TL-E4943-29
Required: 1
. JET, MAIN (#110)
Price unavailable
12
Yamaha Motors
. JET (#38)5TL-E4948-02
Required: 1
. JET (#38)
Price unavailable
13
Yamaha Motors
. SCREW, PILOT5TL-E4923-00
Required: 1
. SCREW, PILOT
Price unavailable
14
Yamaha Motors
. COIL, SPRING4JH-14160-00
Required: 1
. COIL, SPRING
Price unavailable
-15%
$6.37
You save $1.12
-15%
16
Yamaha Motors
O-Ring8ES-14147-00-00
Required: 1
. O-RING
Supersedes: 3TJ-14562-40-00
$9.34
You save $1.65
-20%
17
Yamaha Motors
Clip633-14159-00-00
Required: 1
. CLIP
Supersedes: 663-14159-00-00
$13.19
You save $3.30
-15%
No longer availableSearch Nationwide Inventory
$8.92
You save $1.57
-15%
19
Yamaha Motors
Float Arm Pin663-14548-00-00
Required: 1
. PIN, FLOAT ARM
Supersedes: 676-14548-00-00
$5.09
You save $0.90
-15%
20
Yamaha Motors
Screw98580-04008-00
Required: 3
. SCREW
Supersedes: 688-14592-00-00
$5.52
You save $0.97
-50%
21
Yamaha Motors
Float Chamber Gasket5TL-E4984-00-00
Required: 1
. GASKET, FLOAT CHAMBER
In stock
Only 1 remaining
$1.20
You save $1.20
-15%
22
Yamaha Motors
Pan Head Screw98502-04012-00
Required: 4
. SCREW, PAN HEAD
$0.30
You save $0.05
23
Yamaha Motors
. PLUG, DRAIN5TL-E4191-00
Required: 1
. PLUG, DRAIN
Price unavailable
24
Yamaha Motors
. SCREW, THROTTLE5TL-E4922-00
Required: 1
. SCREW, THROTTLE
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$3.06
You save $0.54
26
Yamaha Motors
Spring Adjust Screw5TL-E4531-00-00
Required: 1
. SPRING, ADJUST SCREW
No longer availableSearch Nationwide Inventory
$0.39
27
Yamaha Motors
. DIAPHRAGM ASSY5TL-E4170-00
Required: 1
. DIAPHRAGM ASSY
Price unavailable
-15%
$6.37
You save $1.12
29
Yamaha Motors
. SPRING5TL-E4275-00
Required: 1
. SPRING
Price unavailable
30
Yamaha Motors
. COVER, CARBURETOR5TL-E4280-00
Required: 1
. COVER, CARBURETOR
Price unavailable
31
Yamaha Motors
. COVER, PLUNGER CAP5TL-E4173-00
Required: 1
. COVER, PLUNGER CAP
Price unavailable
32
Yamaha Motors
. CAP, PLUNGER5TL-E4174-00
Required: 1
. CAP, PLUNGER
Price unavailable
33
Yamaha Motors
. PLUNGER, STARTER5TL-E4171-00
Required: 1
. PLUNGER, STARTER
Price unavailable
34
Yamaha Motors
. SPRING, THROTTLE STOP5TL-E4133-00
Required: 1
. SPRING, THROTTLE STOP
Price unavailable
35
Yamaha Motors
. PIPE5TL-E4196-00
Required: 1
. PIPE
Price unavailable
-15%
In stock
Only 3 remaining
$3.65
You save $0.65
37
Yamaha Motors
. FLOAT VALVE COMP.5TL-E4945-00
Required: 1
. FLOAT VALVE COMP.
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
