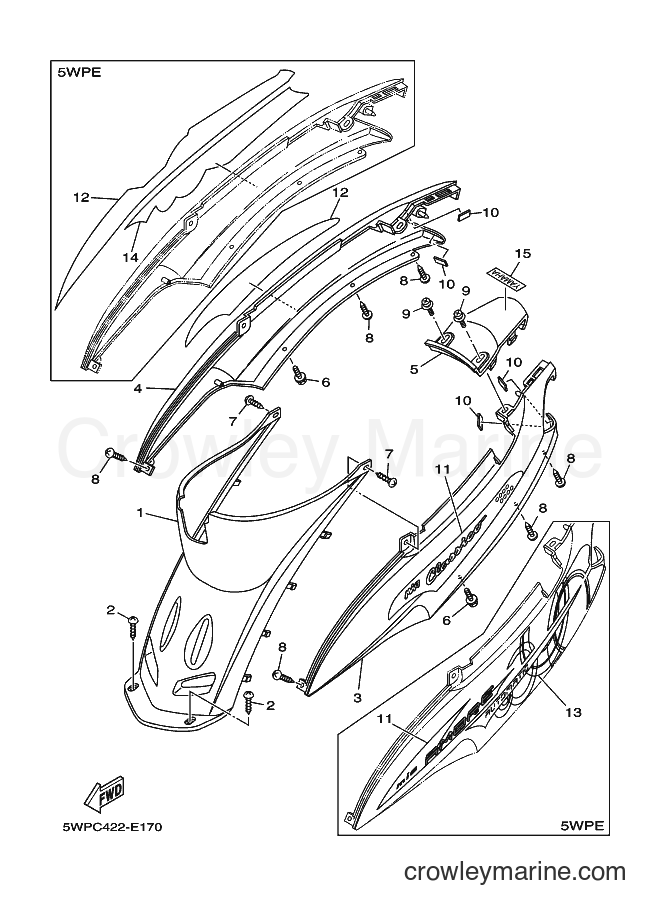

Yamaha Motors AL115 (5WPD) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 15WP-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
-15%
Truss Screw
2
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, SIDE 2
3
Yamaha Motors
COVER, SIDE 25WP-F1721-00-P3
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 2
3
Yamaha Motors
COVER, SIDE 25WP-F1721-00-P4
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 2
3
Yamaha Motors
COVER, SIDE 25WP-F1721-00-P8
Required: 1
COVER, SIDE 2
Price unavailable
COVER, SIDE 3
4
Yamaha Motors
COVER, SIDE 35WP-F1731-00-P8
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 3
4
Yamaha Motors
COVER, SIDE 35WP-F1731-00-P4
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 3
4
Yamaha Motors
COVER, SIDE 35WP-F1731-00-P3
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
5
Yamaha Motors
COVER, SIDE 45WP-F1741-00-P4
Required: 1
COVER, SIDE 4
Price unavailable
COVER, SIDE 4
5
Yamaha Motors
COVER, SIDE 45WP-F1741-00-P3
Required: 1
COVER, SIDE 4
Price unavailable
COVER, SIDE 4
5
Yamaha Motors
COVER, SIDE 45WP-F1741-00-P8
Required: 1
COVER, SIDE 4
Price unavailable
SCREW, TAPPING
6
Yamaha Motors
SCREW, TAPPING90163-05005
Required: 2
SCREW, TAPPING
Price unavailable
-15%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
-15%
Screw with Washer
9
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
DAMPER
10
Yamaha Motors
DAMPER5WP-F1746-00
Required: 4
DAMPER
Price unavailable
GRAPHIC 1
11
Yamaha Motors
GRAPHIC 15WP-F137N-00
Required: 1
GRAPHIC 1
Price unavailable
EMBLEM
11
Yamaha Motors
EMBLEM5WP-F416B-00
Required: 1
EMBLEM
Price unavailable
GRAPHIC 1
11
Yamaha Motors
GRAPHIC 15WP-F137N-10
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 1
11
Yamaha Motors
GRAPHIC 15WP-F137N-20
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
12
Yamaha Motors
GRAPHIC 25WP-F137P-00
Required: 1
GRAPHIC 2
Price unavailable
EMBLEM
12
Yamaha Motors
EMBLEM5WP-F417B-00
Required: 1
EMBLEM
Price unavailable
GRAPHIC 3
13
Yamaha Motors
GRAPHIC 35WP-F137R-00
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 4
14
Yamaha Motors
GRAPHIC 45WP-F137S-00
Required: 1
GRAPHIC 4
Price unavailable
EMBLEM, YAMAHA
15
Yamaha Motors
EMBLEM, YAMAHA5VD-F153E-00
Required: 1
EMBLEM, YAMAHA
Price unavailable
EMBLEM, YAMAHA
15
Yamaha Motors
EMBLEM, YAMAHA5VD-F153E-10
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
