2005 Scooter YP250R - YP250R (1C01) [030] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

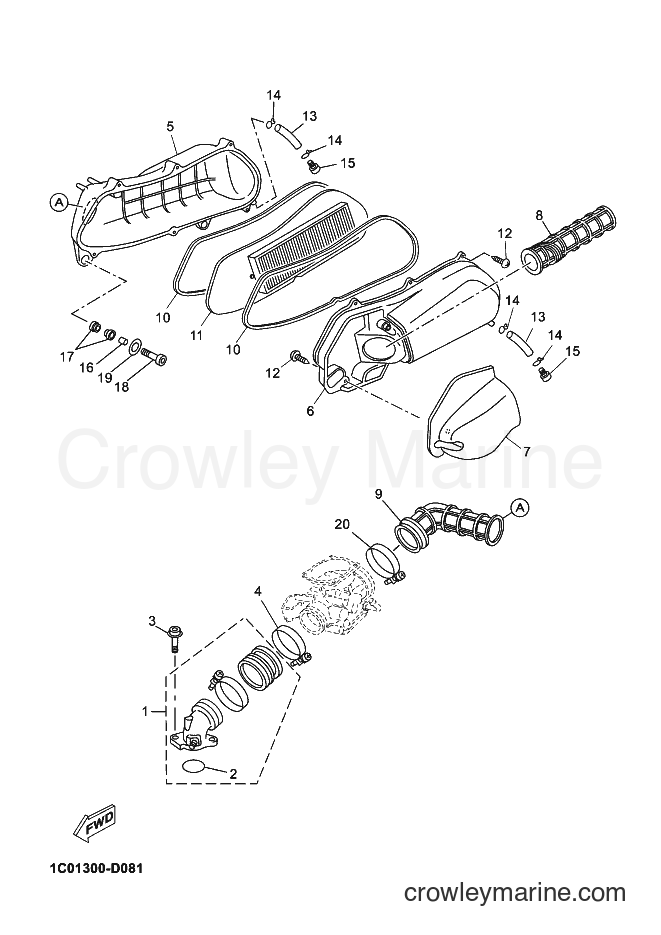

Yamaha Motors YP250R (1C01) [030] - INTAKE
Change View:
CARBURETOR JOINT ASSY
1
Yamaha Motors
CARBURETOR JOINT ASSY1C0-E3590-00
Required: 1
CARBURETOR JOINT ASSY
Price unavailable
. O-RING
2
Yamaha Motors
. O-RING93210-34X00
Required: 1
. O-RING
Price unavailable
BOLT, HEXAGON SOCKET HEAD
3
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X28
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
-15%
90450-50001-00
4
Yamaha Motors
90450-50001-0090460-52210-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
CASE, AIR CLEANER 1
5
Yamaha Motors
CASE, AIR CLEANER 11C0-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CAP, CLEANER CASE 1
6
Yamaha Motors
CAP, CLEANER CASE 11B9-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
COVER, CLEANER CASE 1
7
Yamaha Motors
COVER, CLEANER CASE 11B9-E441A-00
Required: 1
COVER, CLEANER CASE 1
Price unavailable
DUCT
8
Yamaha Motors
DUCT1C0-E4437-00
Required: 1
DUCT
Price unavailable
JOINT, AIR CLEANER 1
9
Yamaha Motors
JOINT, AIR CLEANER 11C0-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
SEAL
10
Yamaha Motors
SEAL1B9-E4452-00
Required: 2
SEAL
Price unavailable
ELEMENT, AIR CLEANER
11
Yamaha Motors
ELEMENT, AIR CLEANER1B9-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
-15%
Truss Screw
12
Yamaha Motors
Truss Screw97707-50525-00
Required: 10
SCREW, TAPPING
Supersedes: 97707-50125-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
HOSE
13
Yamaha Motors
HOSE90446-14X00
Required: 2
HOSE
Price unavailable
CLIP
14
Yamaha Motors
CLIP90467-12X00
Required: 4
CLIP
Price unavailable
COVER, DRAIN VALVE
15
Yamaha Motors
COVER, DRAIN VALVE5DS-E446M-00
Required: 2
COVER, DRAIN VALVE
Price unavailable
COLLAR
16
Yamaha Motors
COLLAR90387-06X31
Required: 2
COLLAR
Price unavailable
GROMMET
17
Yamaha Motors
GROMMET90480-13X01
Required: 4
GROMMET
Price unavailable
WASHER, PLATE
19
Yamaha Motors
WASHER, PLATE90201-06X06
Required: 2
WASHER, PLATE
Price unavailable
HOSE CLAMP ASSY
20
Yamaha Motors
HOSE CLAMP ASSY90450-60X01
Required: 1
HOSE CLAMP ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
