All diagrams for this model

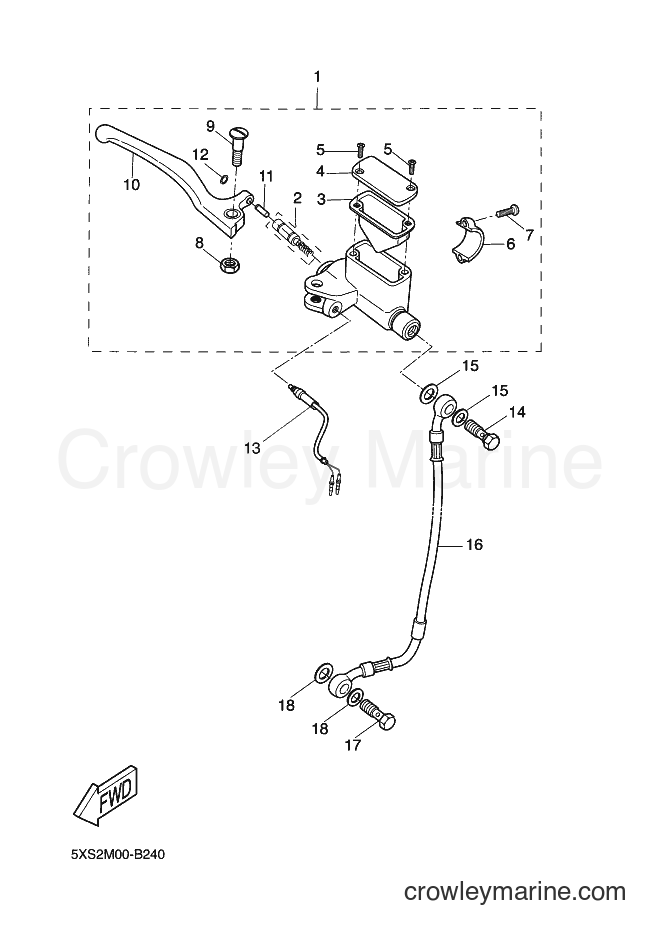

2005 Scooter YH50 - YH50 (5UB6) [050] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5UB6) [050] - FRONT MASTER CYLINDER
Change View:
MASTER CYLINDER ASSY
1
Yamaha Motors
MASTER CYLINDER ASSY5EU-F583T-00
Required: 1
MASTER CYLINDER ASSY
Price unavailable
. MASTER CYLINDER SUB ASSY
2
Yamaha Motors
. MASTER CYLINDER SUB ASSY5BK-F5870-00
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
. DIAPHRAGM, RESERVOIR
3
Yamaha Motors
. DIAPHRAGM, RESERVOIR5BK-F5854-00
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
. CAP, RESERVOIR
4
Yamaha Motors
. CAP, RESERVOIR5BK-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
. SCREW
5
Yamaha Motors
. SCREW5BK-F589H-00
Required: 2
. SCREW
Price unavailable
. BRACKET, MASTER CYLINDER
6
Yamaha Motors
. BRACKET, MASTER CYLINDER5EU-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
. NUT, LEVER FITTING
8
Yamaha Motors
. NUT, LEVER FITTING5BK-H3916-00
Required: 1
. NUT, LEVER FITTING
Price unavailable
. SCREW, LEVER FITTING
9
Yamaha Motors
. SCREW, LEVER FITTING5BK-H3925-00
Required: 1
. SCREW, LEVER FITTING
Price unavailable
. LEVER 2
10
Yamaha Motors
. LEVER 25EU-H3922-00
Required: 1
. LEVER 2
Price unavailable
. PIN, PAD
11
Yamaha Motors
. PIN, PAD4TD-F5924-00
Required: 1
. PIN, PAD
Price unavailable
. CLIP
12
Yamaha Motors
. CLIP4TD-F5925-00
Required: 1
. CLIP
Price unavailable
FRONT STOP SWITCH ASSY
13
Yamaha Motors
FRONT STOP SWITCH ASSY5JH-H3980-02
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
BOLT, UNION
14
Yamaha Motors
BOLT, UNION90401-10X03
Required: 1
BOLT, UNION
Price unavailable
-15%
Plain Washer
15
Yamaha Motors
Plain Washer90201-10X03-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
HOSE, BRAKE 1
16
Yamaha Motors
HOSE, BRAKE 15EU-F5872-00
Required: 1
HOSE, BRAKE 1
Price unavailable
BOLT, UNION
17
Yamaha Motors
BOLT, UNION90401-10X03
Required: 1
BOLT, UNION
Price unavailable
-15%
Plain Washer
18
Yamaha Motors
Plain Washer90201-10X03-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
