All diagrams for this model

2005 Scooter AT115C - AT115C (2B52) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

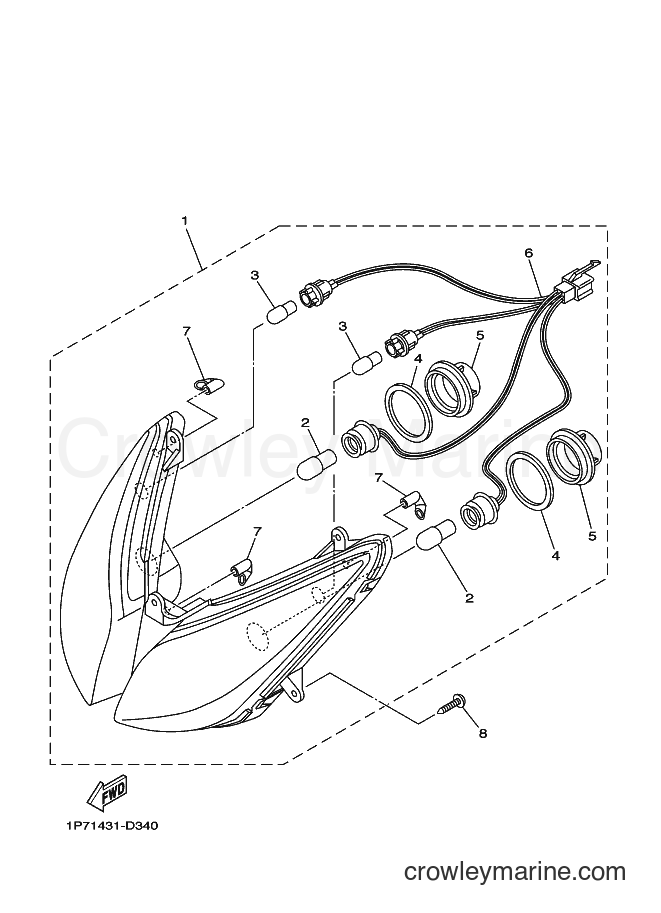

Yamaha Motors AT115C (2B52) [010] - HEADLIGHT
Change View:
HEADLIGHT ASSY
1
Yamaha Motors
HEADLIGHT ASSY2B5-H4300-00
Required: 1
HEADLIGHT ASSY
Price unavailable
. BULB, HEADLIGHT (12V 25/25W)
2
Yamaha Motors
. BULB, HEADLIGHT (12V 25/25W)5LL-H4314-00
Required: 2
. BULB, HEADLIGHT (12V 25/25W)
Price unavailable
. BULB, FLASHER (12V-10W)
3
Yamaha Motors
. BULB, FLASHER (12V-10W)5LL-H3311-00
Required: 2
. BULB, FLASHER (12V-10W)
Price unavailable
. O-RING 3
4
Yamaha Motors
. O-RING 32B5-H466J-00
Required: 2
. O-RING 3
Price unavailable
. COVER, SOCKET
5
Yamaha Motors
. COVER, SOCKET2B5-H4397-00
Required: 2
. COVER, SOCKET
Price unavailable
. HOLDER, SOCKET
6
Yamaha Motors
. HOLDER, SOCKET2B5-H4312-00
Required: 1
. HOLDER, SOCKET
Price unavailable
. CAP
7
Yamaha Motors
. CAP2B5-H411V-00
Required: 3
. CAP
Price unavailable
-15%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50014-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
