All diagrams for this model

2004 Scooter YQ50 - YQ50 (5SB6) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

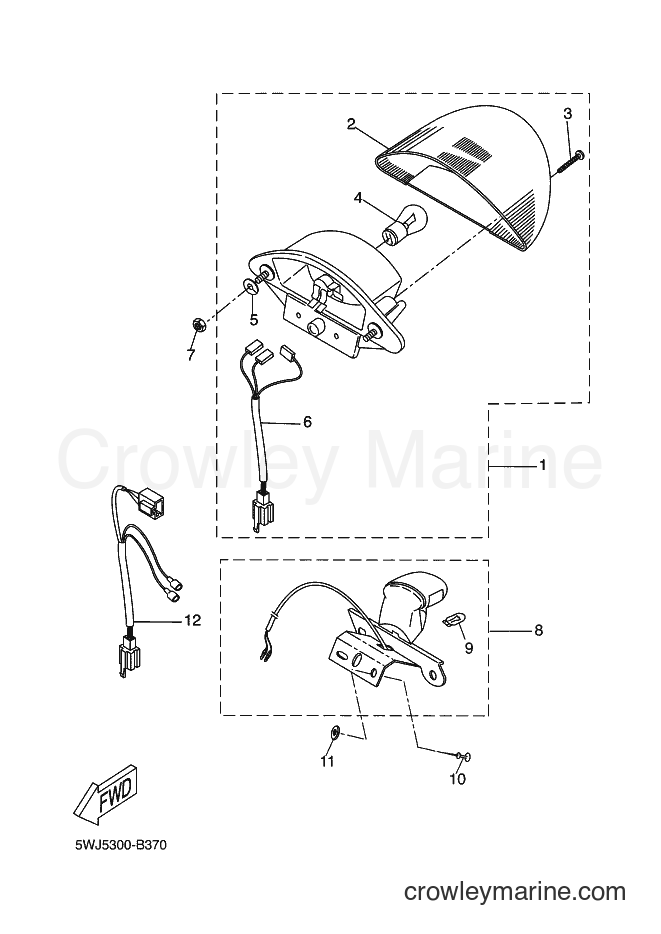

Yamaha Motors YQ50 (5SB6) [010] - TAILLIGHT
Change View:
TAILLIGHT ASSY
1
Yamaha Motors
TAILLIGHT ASSY5BR-H4700-01
Required: 1
TAILLIGHT ASSY
Price unavailable
. LENS, LICENCE LIGHT
2
Yamaha Motors
. LENS, LICENCE LIGHT5BR-H472F-00
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
. SCREW
3
Yamaha Motors
. SCREW5BR-H4726-00
Required: 2
. SCREW
Price unavailable
. BULB (12V-21/5W)
4
Yamaha Motors
. BULB (12V-21/5W)3HL-H4535-00
Required: 1
. BULB (12V-21/5W)
Price unavailable
. WASHER, SPECIAL
5
Yamaha Motors
. WASHER, SPECIAL5BR-H4754-00
Required: 2
. WASHER, SPECIAL
Price unavailable
. CORD ASSY
6
Yamaha Motors
. CORD ASSY5BR-H4735-00
Required: 1
. CORD ASSY
Price unavailable
-15%
Nut
7
Yamaha Motors
Nut90179-06X00-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
LICENCE LIGHT ASSY
8
Yamaha Motors
LICENCE LIGHT ASSY5ME-H4740-00
Required: 1
LICENCE LIGHT ASSY
Price unavailable
. BULB (12V-5W)
9
Yamaha Motors
. BULB (12V-5W)5FV-H3517-00
Required: 1
. BULB (12V-5W)
Price unavailable
RIVET, BLIND
10
Yamaha Motors
RIVET, BLIND90267-48X02
Required: 2
RIVET, BLIND
Price unavailable
-15%
Plain Washer
11
Yamaha Motors
Plain Washer90201-05X00-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
CORD, LICENCE LIGHT
12
Yamaha Motors
CORD, LICENCE LIGHT5WJ-H4547-00
Required: 1
CORD, LICENCE LIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
