2004 Scooter XP500 - XP500 (5VU1) [110] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

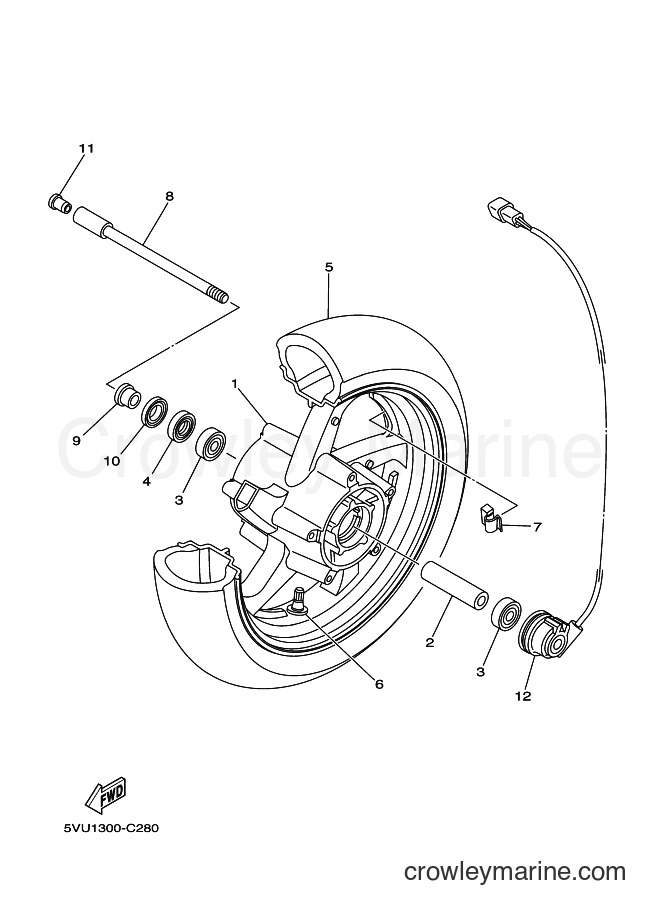

Yamaha Motors XP500 (5VU1) [110] - FRONT WHEEL
Change View:
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT5VU-25168-00-33
Required: 1
CAST WHEEL, FRONT
Price unavailable
COLLAR
2
Yamaha Motors
COLLAR90387-1508E
Required: 1
COLLAR
Price unavailable
-15%
BEARING
3
Yamaha Motors
BEARING93306-30212-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$44.99
$38.24
You save $6.75
More details
-15%
SD-TYPE OIL SEAL
4
Yamaha Motors
SD-TYPE OIL SEAL93102-22014-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
TIRE(120/70R14M/C55H D252F)
5
Yamaha Motors
TIRE(120/70R14M/C55H D252F)94112-14020
Required: 1
TIRE(120/70R14M/C55H D252F)
Price unavailable
TIRE(120/70R14M/C 55H TH01 F)
5
Yamaha Motors
TIRE(120/70R14M/C 55H TH01 F)94112-14024
Required: 1
TIRE(120/70R14M/C 55H TH01 F)
Price unavailable
-15%
Rim (Tr412) Valve
6
Yamaha Motors
Rim (Tr412) Valve93900-00030-00
Required: 1
VALVE, RIM (TR412)
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
-15%
Wheel Balancer
7
Yamaha Motors
Wheel Balancer5MT-25398-00-00
Required: 1
BALANCER, WHEEL (10G)
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
-15%
Wheel Balancer
7
Yamaha Motors
Wheel Balancer5MT-25398-10-00
Required: 1
BALANCER, WHEEL (20G)
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
-15%
Wheel Balancer
7
Yamaha Motors
Wheel Balancer5MT-25398-20-00
Required: 1
BALANCER, WHEEL (30G)
Cross Ship
Leaves in 2-5 days
$46.99
$39.94
You save $7.05
More details
AXLE, WHEEL
8
Yamaha Motors
AXLE, WHEEL5GJ-25181-01
Required: 1
AXLE, WHEEL
Price unavailable
-15%
WHEEL COLLAR
9
Yamaha Motors
WHEEL COLLAR5GJ-25183-00-00
Required: 1
COLLAR, WHEEL
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
SENSOR, SPEED
12
Yamaha Motors
SENSOR, SPEED5VU-83755-00
Required: 1
SENSOR, SPEED
Price unavailable
