2004 Scooter VP300 - VP300 (1S61) [080] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

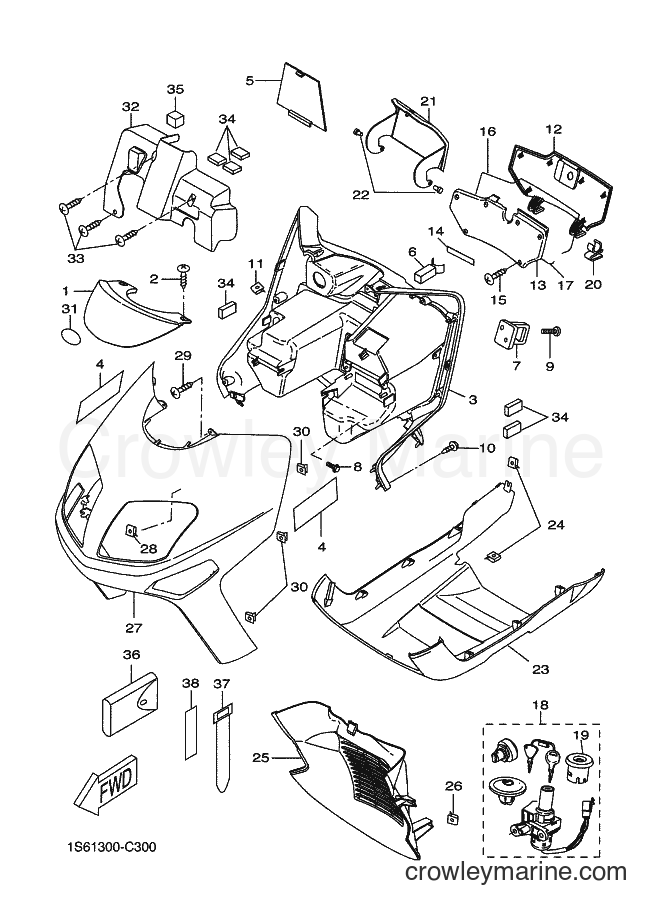

Yamaha Motors VP300 (1S61) [080] - LEG SHIELD
Change View:
PANEL, INNER 1
1
Yamaha Motors
PANEL, INNER 15SE-F836K-00-P5
Required: 1
PANEL, INNER 1
Price unavailable
LEG SHIELD ASSY
3
Yamaha Motors
LEG SHIELD ASSY5SE-F8300-20
Required: 1
LEG SHIELD ASSY
Price unavailable
GRAPHIC 1
4
Yamaha Motors
GRAPHIC 11S6-F8391-00
Required: 2
GRAPHIC 1
Price unavailable
LID 4
5
Yamaha Motors
LID 45SE-F839W-20
Required: 1
LID 4
Price unavailable
PLATE, LOCK 3
6
Yamaha Motors
PLATE, LOCK 34HC-24618-00
Required: 1
PLATE, LOCK 3
Price unavailable
HOOK
7
Yamaha Motors
HOOK5MF-F8379-00
Required: 1
HOOK
Price unavailable
BOLT,HEX. SOCKET BUTTON
9
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X00
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
LID
12
Yamaha Motors
LID5SE-F8313-20
Required: 1
LID
Price unavailable
LID 3
13
Yamaha Motors
LID 35SE-F839V-20
Required: 1
LID 3
Price unavailable
LABEL, FUSE
14
Yamaha Motors
LABEL, FUSE5SE-H2178-00
Required: 1
LABEL, FUSE
Price unavailable
SCREW, TAPPING
15
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 6
SCREW, TAPPING
Price unavailable
DAMPER
16
Yamaha Motors
DAMPER5SE-F8371-01
Required: 1
DAMPER
Price unavailable
DAMPER
17
Yamaha Motors
DAMPER1S6-F8372-00
Required: 1
DAMPER
Price unavailable
KEY SET
18
Yamaha Motors
KEY SET5SE-H2021-00
Required: 1
KEY SET
Price unavailable
. CAP, SWITCH
19
Yamaha Motors
. CAP, SWITCH5AD-H2552-00
Required: 1
. CAP, SWITCH
Price unavailable
HINGE
20
Yamaha Motors
HINGE5EU-F837F-00
Required: 2
HINGE
Price unavailable
LID 2
21
Yamaha Motors
LID 25SE-F831X-20
Required: 1
LID 2
Price unavailable
RIVET
22
Yamaha Motors
RIVET90269-50X00
Required: 2
RIVET
Price unavailable
COVER, LOWER
23
Yamaha Motors
COVER, LOWER5SE-F8385-00
Required: 1
COVER, LOWER
Price unavailable
GRILL, AIR INTAKE 1
25
Yamaha Motors
GRILL, AIR INTAKE 15SE-F837N-00
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
BODY, FRONT UPPER 1
27
Yamaha Motors
BODY, FRONT UPPER 15SE-F835G-00-P5
Required: 1
BODY, FRONT UPPER 1
Price unavailable
-15%
Spring Nut
28
Yamaha Motors
Spring Nut90183-06X00-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
PROTECTOR 2
32
Yamaha Motors
PROTECTOR 25SE-F834W-00
Required: 1
PROTECTOR 2
Price unavailable
SCREW, TAPPING
33
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 3
SCREW, TAPPING
Price unavailable
DAMPER
34
Yamaha Motors
DAMPER4SB-F174X-00
Required: 6
DAMPER
Price unavailable
DAMPER
35
Yamaha Motors
DAMPER4SB-F174X-20
Required: 1
DAMPER
Price unavailable
TOOL KIT
36
Yamaha Motors
TOOL KIT5SE-F8100-00
Required: 1
TOOL KIT
Price unavailable
BAND, TOOL
37
Yamaha Motors
BAND, TOOL5SE-F1376-00
Required: 1
BAND, TOOL
Price unavailable
STAY, TOOL HOLDER
38
Yamaha Motors
STAY, TOOL HOLDER5SE-F117H-00
Required: 1
STAY, TOOL HOLDER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
