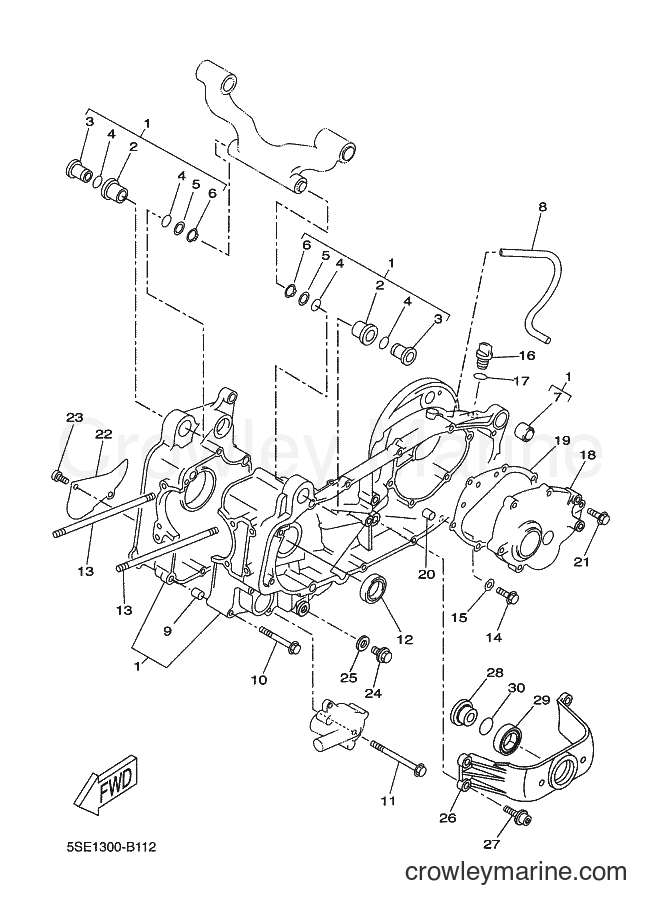

2004 Scooter VP300 - VP300 (1S61) [040] CRANKCASE diagram
![Yamaha Motors VP300 (1S61) [040] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/D83ovLXy.png)
1
Yamaha Motors
CRANKCASE ASSY5SE-E5100-01
Required: 1
CRANKCASE ASSY
Price unavailable
2
Yamaha Motors
. HOLDER4HC-15378-01
Required: 2
. HOLDER
Price unavailable
3
Yamaha Motors
. COLLAR90387-1006J
Required: 2
. COLLAR
Price unavailable
-20%
In stock
Only 1 remaining
$2.84
You save $0.71
-15%
5
Yamaha Motors
Plate Washer90201-162H4-00
Required: 2
. WASHER, PLATE
Supersedes: 90201-16242-00
$8.92
You save $1.57
6
Yamaha Motors
. CIRCLIP93410-16X00
Required: 2
. CIRCLIP
Price unavailable
-15%
7
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 1
. BUSH, REAR SHOCK ABSORBER
Supersedes: 4X6-F2216-00-00
$12.32
You save $2.17
8
Yamaha Motors
HOSE90445-13X00
Required: 1
HOSE
Price unavailable
9
Yamaha Motors
PIN, DOWEL91810-14X00
Required: 2
PIN, DOWEL
Price unavailable
10
Yamaha Motors
BOLT, FLANGE90105-06X08
Required: 4
BOLT, FLANGE
Price unavailable
11
Yamaha Motors
BOLT, FLANGE90105-06X09
Required: 5
BOLT, FLANGE
Price unavailable
-15%
$14.87
You save $2.62
13
Yamaha Motors
BOLT, STUD90116-08591
Required: 4
BOLT, STUD
Price unavailable
14
Yamaha Motors
BOLT, FLANGE90105-08X06
Required: 1
BOLT, FLANGE
Price unavailable
15
Yamaha Motors
GASKET90430-08X00
Required: 1
GASKET
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
17
Yamaha Motors
O-RING93210-14X01
Required: 1
O-RING
Price unavailable
18
Yamaha Motors
COVER, CRANKCASE 25SE-E5421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
19
Yamaha Motors
GASKET, CRANKCASE COVER 25SE-E5461-00
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
20
Yamaha Motors
PIN, DOWEL91810-14X00
Required: 2
PIN, DOWEL
Price unavailable
21
Yamaha Motors
BOLT, FLANGE90105-08X07
Required: 6
BOLT, FLANGE
Price unavailable
22
Yamaha Motors
COVER4HC-15492-00
Required: 1
COVER
Price unavailable
23
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X30
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
24
Yamaha Motors
PLUG, STRAIGHT SCREW90340-12X00
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
-15%
$5.52
You save $0.97
26
Yamaha Motors
BRACKET1C0-E5199-00
Required: 1
BRACKET
Price unavailable
-15%
$1.61
You save $0.28
28
Yamaha Motors
SPACER5GM-17649-00
Required: 1
SPACER
Price unavailable
29
Yamaha Motors
BEARING93306-90603
Required: 1
BEARING
Price unavailable
-50%
In stock
Only 5 remaining
$2.75
You save $2.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
