All diagrams for this model

2004 Scooter VP300 - VP300 (1S61) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

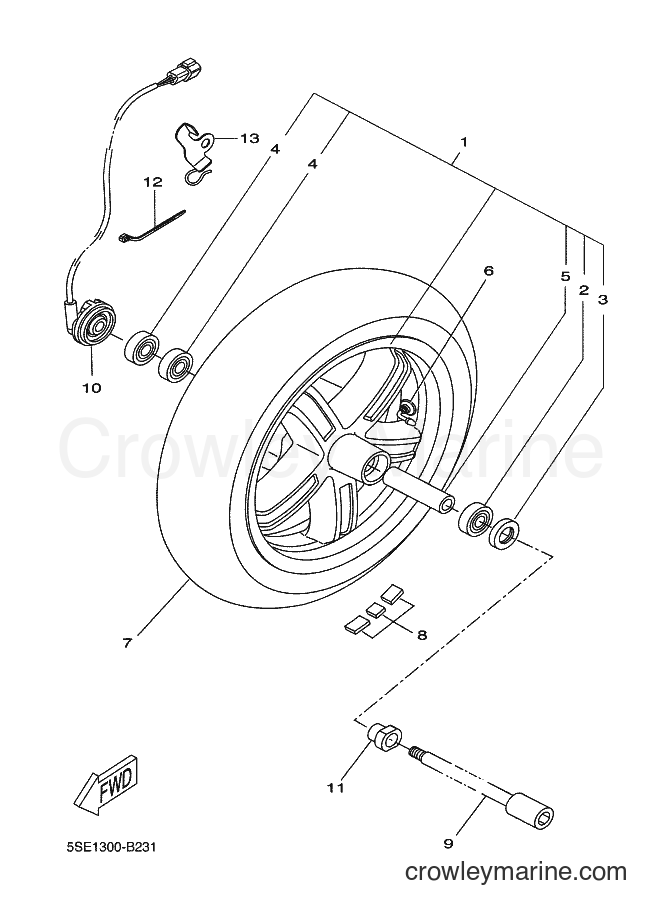

Yamaha Motors VP300 (1S61) [010] - FRONT WHEEL
Change View:
WHEEL ASSY
1
Yamaha Motors
WHEEL ASSY5SE-F5100-01
Required: 1
WHEEL ASSY
Price unavailable
. BEARING
2
Yamaha Motors
. BEARING93306-302X3
Required: 1
. BEARING
Price unavailable
. OIL SEAL
3
Yamaha Motors
. OIL SEAL93101-22800
Required: 1
. OIL SEAL
Price unavailable
. BEARING
4
Yamaha Motors
. BEARING93306-202YU
Required: 2
. BEARING
Price unavailable
. SPACER, BEARING
5
Yamaha Motors
. SPACER, BEARING5SE-F5117-00
Required: 1
. SPACER, BEARING
Price unavailable
-15%
Air Valve Assembly
6
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
TIRE ( 120/80-14 M/C 58P/TL)
7
Yamaha Motors
TIRE ( 120/80-14 M/C 58P/TL)94112-14X00
Required: 1
TIRE ( 120/80-14 M/C 58P/TL)
Price unavailable
BALANCER, WHEEL (10G)
8
Yamaha Motors
BALANCER, WHEEL (10G)5SE-F5198-00
Required: 1
BALANCER, WHEEL (10G)
Price unavailable
BALANCER, WHEEL (30G)
8
Yamaha Motors
BALANCER, WHEEL (30G)5SE-F5198-20
Required: 1
BALANCER, WHEEL (30G)
Price unavailable
BALANCER, WHEEL (20G)
8
Yamaha Motors
BALANCER, WHEEL (20G)5SE-F5198-10
Required: 1
BALANCER, WHEEL (20G)
Price unavailable
AXLE, WHEEL
9
Yamaha Motors
AXLE, WHEEL5SE-F5181-01
Required: 1
AXLE, WHEEL
Price unavailable
SENSOR, UNIT
10
Yamaha Motors
SENSOR, UNIT5SE-H3756-02
Required: 1
SENSOR, UNIT
Price unavailable
COLLAR
11
Yamaha Motors
COLLAR90387-15X08
Required: 1
COLLAR
Price unavailable
-15%
Switch Cord Band
12
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
HOLDER, CABLE
13
Yamaha Motors
HOLDER, CABLE5SE-F3317-00
Required: 1
HOLDER, CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
