2004 Scooter T110 - T110 (5XV1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

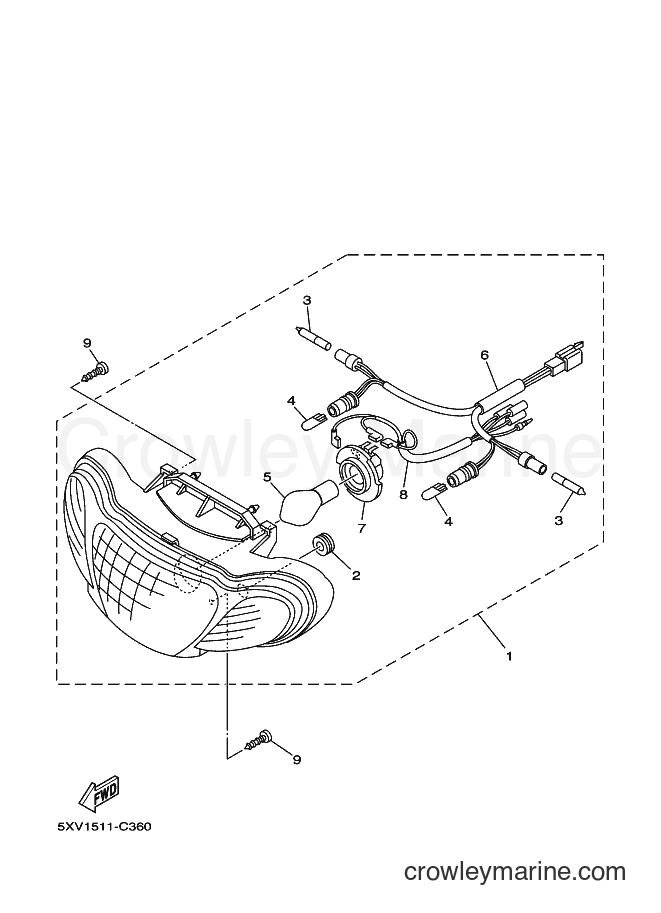

Yamaha Motors T110 (5XV1) [010] - HEADLIGHT

Change View:

Yamaha Motors

HEADLIGHT ASSY5XV-H4300-00

Required: 1

HEADLIGHT ASSY

Price unavailable

Yamaha Motors

. GROMMET5XV-H4352-00

Required: 1

. GROMMET

Price unavailable

Yamaha Motors

. BULB (12V-21W)5XV-H3311-00

Required: 2

. BULB (12V-21W)

Price unavailable

Yamaha Motors

. BULB (12V-3W)5XV-H4347-00

Required: 2

. BULB (12V-3W)

Price unavailable

Yamaha Motors

. BULB (12V-35/35W)5XV-H4314-00

Required: 1

. BULB (12V-35/35W)

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY 15XV-H4340-00

Required: 1

. SOCKET CORD ASSY 1

Price unavailable

Yamaha Motors

. SOCKET, HEADLIGHT5XV-H411W-00

Required: 1

. SOCKET, HEADLIGHT

Price unavailable

Yamaha Motors

. CORD, HEADLIGHT5XV-H4359-00

Required: 1

. CORD, HEADLIGHT

Price unavailable

-15%

Yamaha Motors

Truss Screw97707-50014-00

Required: 3

SCREW, TAPPING

~~$9.49~~

$8.07

You save $1.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
