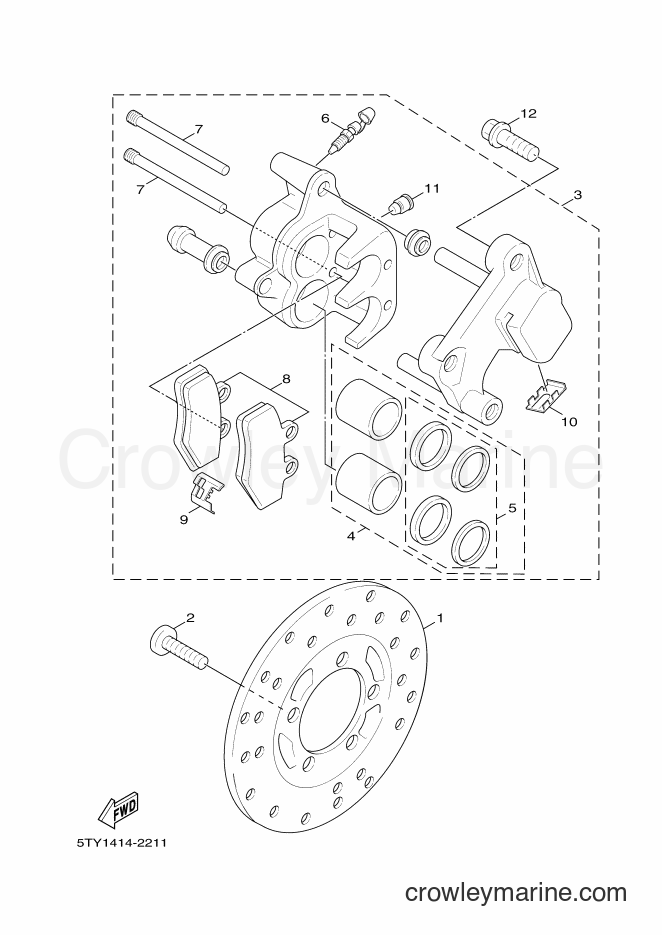

Yamaha Motors NXC125 (5ML2) [030] - FRONT BRAKE CALIPER
Change View:
DISK, BRAKE (RIGHT)
1
Yamaha Motors
DISK, BRAKE (RIGHT)5ML-F582U-00
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
-15%
Screw (M8 X 40)
2
Yamaha Motors
Screw (M8 X 40)90111-08834-00
Required: 5
SCREW
Supersedes: 90149-08814-00
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
CALIPER ASSY (RIGHT)
3
Yamaha Motors
CALIPER ASSY (RIGHT)5ML-F580U-00
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
. PISTON ASSY, CALIPER
4
Yamaha Motors
. PISTON ASSY, CALIPER5NW-W0057-00
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
. . CALIPER SEAL KIT
5
Yamaha Motors
. . CALIPER SEAL KIT5NW-W0047-00
Required: 1
. . CALIPER SEAL KIT
Price unavailable
. BLEED SCREW KIT
6
Yamaha Motors
. BLEED SCREW KIT5AG-W0048-10
Required: 1
. BLEED SCREW KIT
Price unavailable
. PIN, SLIDE
7
Yamaha Motors
. PIN, SLIDE5NW-F5914-00
Required: 2
. PIN, SLIDE
Price unavailable
. BRAKE PAD KIT
8
Yamaha Motors
. BRAKE PAD KIT5ML-W0045-00
Required: 1
. BRAKE PAD KIT
Price unavailable
. SUPPORT, PAD
9
Yamaha Motors
. SUPPORT, PAD5NW-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. SUPPORT, PAD
10
Yamaha Motors
. SUPPORT, PAD5NW-F5919-10
Required: 1
. SUPPORT, PAD
Price unavailable
-15%
Indicator Cap
11
Yamaha Motors
Indicator Cap5AG-F5845-00-00
Required: 1
. CAP, INDICATOR
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
