All diagrams for this model

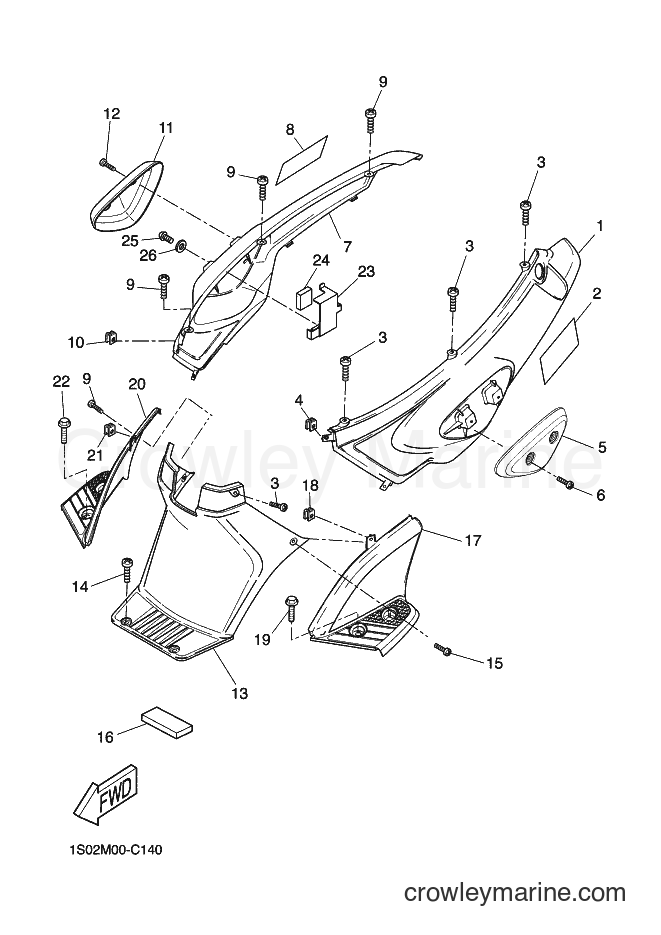

2004 Scooter EW50 - EW50 (1S12) [040] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EW50 (1S12) [040] - SIDE COVER
Change View:
COVER, SIDE 3
1
Yamaha Motors
COVER, SIDE 35JH-F1731-00-PC
Required: 1
COVER, SIDE 3
Price unavailable
GRAPHIC 3
2
Yamaha Motors
GRAPHIC 31S1-F174G-00
Required: 1
GRAPHIC 3
Price unavailable
DAMPER
5
Yamaha Motors
DAMPER5JH-F1747-20
Required: 1
DAMPER
Price unavailable
TAPPING SCREW
6
Yamaha Motors
TAPPING SCREW90169-05X01
Required: 2
TAPPING SCREW
Price unavailable
COVER, SIDE 4
7
Yamaha Motors
COVER, SIDE 45JH-F1741-01-PC
Required: 1
COVER, SIDE 4
Price unavailable
GRAPHIC 4
8
Yamaha Motors
GRAPHIC 41S1-F174H-00
Required: 1
GRAPHIC 4
Price unavailable
DAMPER
11
Yamaha Motors
DAMPER5JH-F1747-20
Required: 1
DAMPER
Price unavailable
TAPPING SCREW
12
Yamaha Motors
TAPPING SCREW90169-05X01
Required: 2
TAPPING SCREW
Price unavailable
COVER, SIDE 1
13
Yamaha Motors
COVER, SIDE 15JH-F1711-20
Required: 1
COVER, SIDE 1
Price unavailable
SCREW, TAPPING
14
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 4
SCREW, TAPPING
Price unavailable
DAMPER
16
Yamaha Motors
DAMPER5BR-F174X-00
Required: 1
DAMPER
Price unavailable
COVER, SIDE 5
17
Yamaha Motors
COVER, SIDE 55JH-F171E-20
Required: 1
COVER, SIDE 5
Price unavailable
BOLT, FLANGE
19
Yamaha Motors
BOLT, FLANGE90105-06X03
Required: 2
BOLT, FLANGE
Price unavailable
COVER, SIDE 6
20
Yamaha Motors
COVER, SIDE 65JH-F171X-20
Required: 1
COVER, SIDE 6
Price unavailable
BOLT, FLANGE
22
Yamaha Motors
BOLT, FLANGE90105-06X03
Required: 2
BOLT, FLANGE
Price unavailable
BRACKET 1
23
Yamaha Motors
BRACKET 15WK-F172K-00
Required: 1
BRACKET 1
Price unavailable
DAMPER
24
Yamaha Motors
DAMPER4SB-F174X-10
Required: 1
DAMPER
Price unavailable
BOLT,HEX. SOCKET BUTTON
25
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06X00
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
WASHER, PLATE
26
Yamaha Motors
WASHER, PLATE90201-06X11
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
