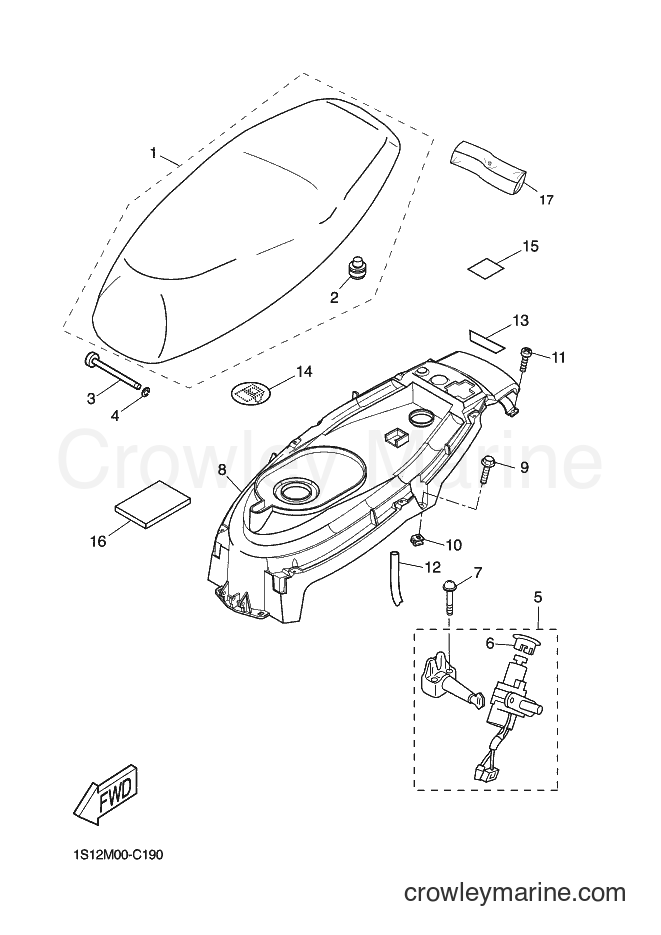

2004 Scooter EW50 - EW50 (1S12) [020] SEAT diagram
![Yamaha Motors EW50 (1S12) [020] - SEAT](https://cdn.crowleymarine.com/yamaha/4C4B4y6Z.png)
1
Yamaha Motors
DOUBLE SEAT ASSY5JH-F4730-30
Required: 1
DOUBLE SEAT ASSY
Price unavailable
-15%
$7.22
You save $1.27
3
Yamaha Motors
PIN 15EU-F4623-00
Required: 1
PIN 1
Price unavailable
4
Yamaha Motors
CLIP90468-05X00
Required: 1
CLIP
Price unavailable
5
Yamaha Motors
KEY SET5XW-H2021-00
Required: 1
KEY SET
Price unavailable
-15%
6
Yamaha Motors
Cap1S0-H2552-00-00
Required: 1
. CAP
Supersedes: 4VV-H2532-00-00
$6.79
You save $1.20
-15%
7
Yamaha Motors
Screw with Washer90159-06064-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
8
Yamaha Motors
COVER, FILLER5JH-F414A-20
Required: 1
COVER, FILLER
Price unavailable
-20%
9
Yamaha Motors
Flange Bolt95817-06016-00
Required: 5
BOLT, FLANGE
Supersedes: 90105-06X00-00
In stock
Only 3 remaining
$1.56
You save $0.39
-15%
$6.37
You save $1.12
-15%
11
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$3.53
You save $0.62
12
Yamaha Motors
PIPE, OVERFLOW4SB-F4318-41
Required: 1
PIPE, OVERFLOW
Price unavailable
13
Yamaha Motors
EMBLEM5BS-F8315-50
Required: 1
EMBLEM
Price unavailable
14
Yamaha Motors
LABEL, CAUTION5DN-F415A-10
Required: 1
LABEL, CAUTION
Price unavailable
15
Yamaha Motors
LABEL 15RJ-F4875-01
Required: 1
LABEL 1
Price unavailable
16
Yamaha Motors
MANUAL,OWNER'S 25WK-F819U-F0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
16
Yamaha Motors
MANUAL,OWNER'S 25WK-F819U-S0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
16
Yamaha Motors
MANUAL,OWNER'S 25WK-F819U-D0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
16
Yamaha Motors
MANUAL,OWNER'S 25WK-F819U-G0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
17
Yamaha Motors
TOOL KIT4BX-F8100-00
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
