2004 Scooter EW50 - EW50 (1S12) [030] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

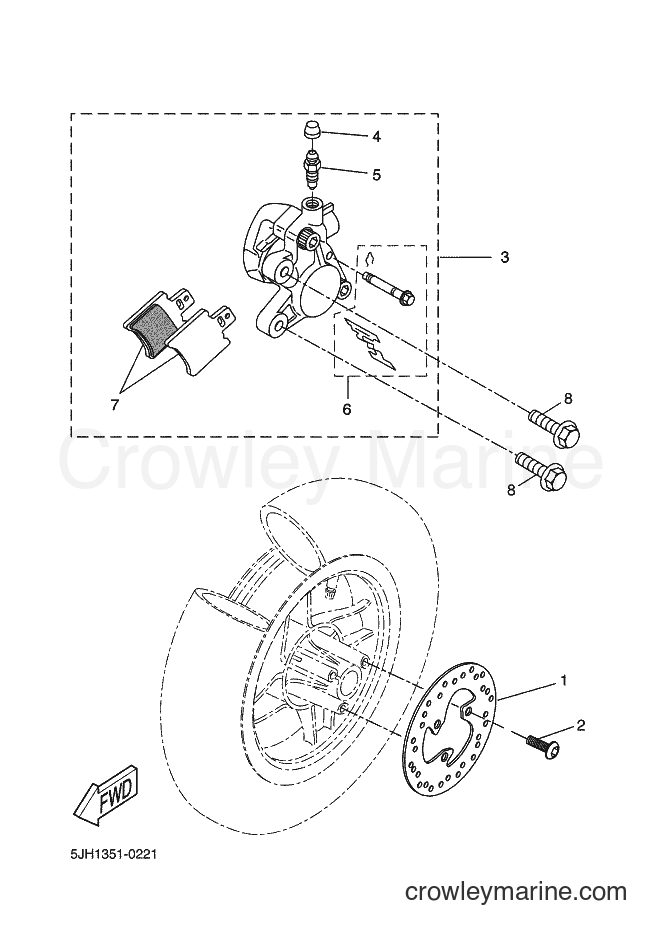

Yamaha Motors EW50 (1S12) [030] - FRONT BRAKE CALIPER
Change View:
DISC, BRAKE
1
Yamaha Motors
DISC, BRAKE5JH-F5831-00
Required: 1
DISC, BRAKE
Price unavailable
CALIPER ASSY, REAR 1
3
Yamaha Motors
CALIPER ASSY, REAR 15BR-F580V-00
Required: 1
CALIPER ASSY, REAR 1
Price unavailable
-15%
Cap
4
Yamaha Motors
Cap4CU-F5825-00-00
Required: 1
. CAP
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
. SUPPORT, PAD
6
Yamaha Motors
. SUPPORT, PAD5BR-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. PAD, CALIPER 2
7
Yamaha Motors
. PAD, CALIPER 25BR-F5811-00
Required: 1
. PAD, CALIPER 2
Price unavailable
-15%
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-08X00-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
