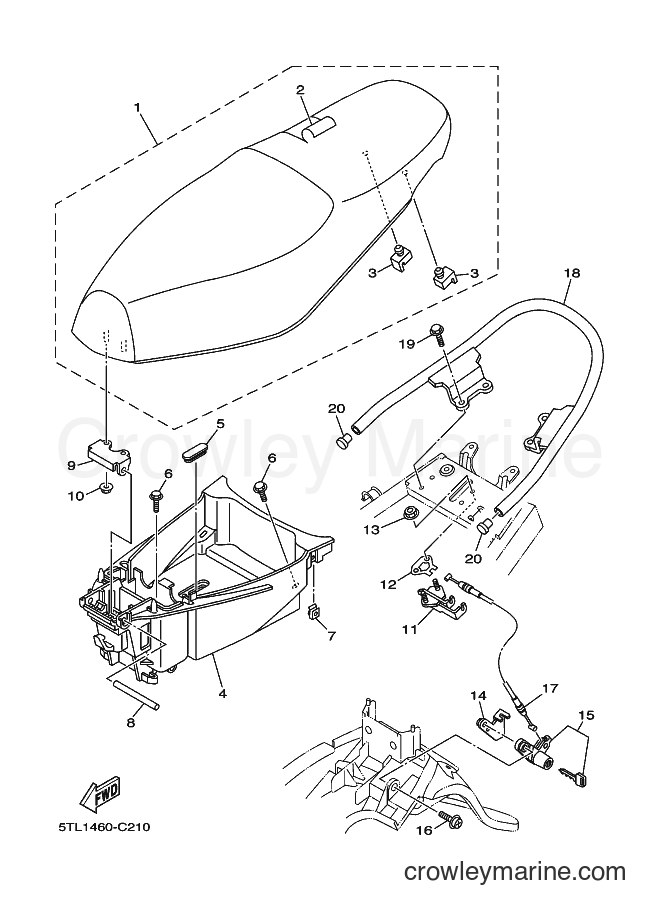

2004 Scooter AL115S - AL115S (5WP1) [010] SEAT diagram
![Yamaha Motors AL115S (5WP1) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/nx8gBUOY.png)
1
Yamaha Motors
DOUBLE SEAT ASSY5WP-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Yamaha Motors
. SEAT COVER COMP.5WP-F470F-00
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Yamaha Motors
. PAD, SEAT5WP-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
4
Yamaha Motors
BOX 15WP-F473R-00
Required: 1
BOX 1
Price unavailable
5
Yamaha Motors
PLUG, BLIND5WP-F6199-00
Required: 1
PLUG, BLIND
Price unavailable
-15%
6
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
7
Yamaha Motors
NUT, SPRING90183-050A1
Required: 2
NUT, SPRING
Price unavailable
8
Yamaha Motors
PIN, SEAT FITTING5WP-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
9
Yamaha Motors
HINGE, SEAT5WP-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
$0.85
You save $0.15
11
Yamaha Motors
SEAT LOCK ASSY5WP-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
12
Yamaha Motors
PLATE5WP-F4792-00
Required: 1
PLATE
Price unavailable
-15%
$0.85
You save $0.15
14
Yamaha Motors
STAY, LOCK5WP-F117K-00
Required: 1
STAY, LOCK
Price unavailable
15
Yamaha Motors
ROTOR ASSY5WP-F4799-00
Required: 1
ROTOR ASSY
Price unavailable
-15%
16
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
17
Yamaha Motors
CABLE, SEAT LOCK5WP-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
18
Yamaha Motors
HANDLE, SEAT5WP-F4773-00
Required: 1
HANDLE, SEAT
Price unavailable
-20%
19
Yamaha Motors
Flange Bolt95817-06016-00
Required: 4
BOLT, FLANGE
Supersedes: 95827-06016-00
In stock
Only 3 remaining
$1.56
You save $0.39
20
Yamaha Motors
PLUG90338-16800
Required: 2
PLUG
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
