2003 Scooter YQ50 - YQ50 (5SB2) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

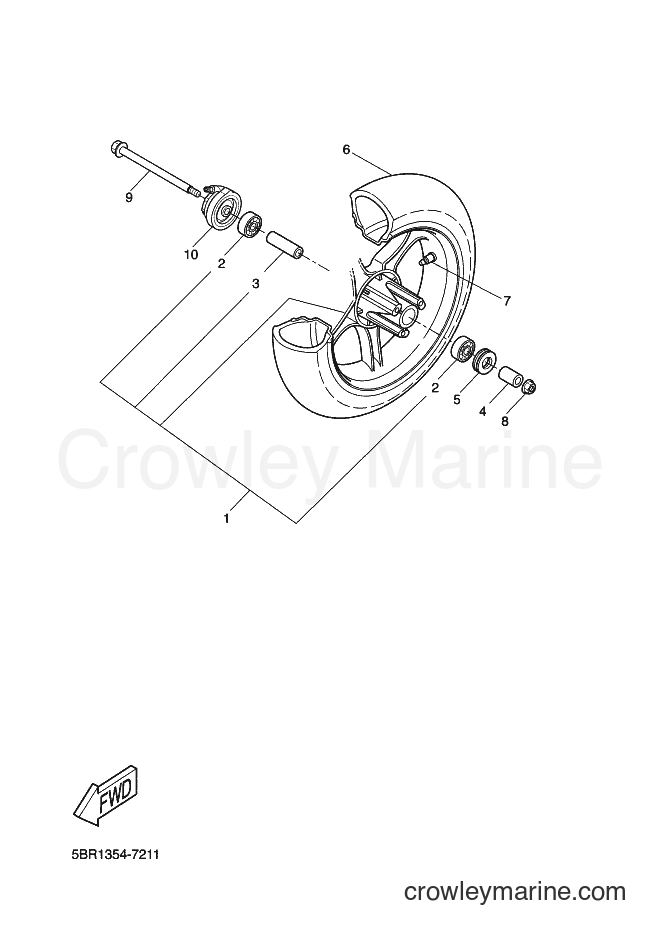

Yamaha Motors YQ50 (5SB2) [010] - FRONT WHEEL
Change View:
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT5BR-F5168-31
Required: 1
CAST WHEEL, FRONT
Price unavailable
COLLAR
4
Yamaha Motors
COLLAR90387-10X00
Required: 1
COLLAR
Price unavailable
TIRE (130/60-13 M/C 53L)
6
Yamaha Motors
TIRE (130/60-13 M/C 53L)*
Required: 1
TIRE (130/60-13 M/C 53L)
Price unavailable
AIR VALVE ASSY
7
Yamaha Motors
AIR VALVE ASSY5BR-F5170-00
Required: 1
AIR VALVE ASSY
Price unavailable
SHAFT, PIVOT
9
Yamaha Motors
SHAFT, PIVOT5BR-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
GEAR UNIT ASSY
10
Yamaha Motors
GEAR UNIT ASSY5PU-25190-00
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
