2003 Scooter YP180E - YP180E (5XM2) [010] SEAT diagram

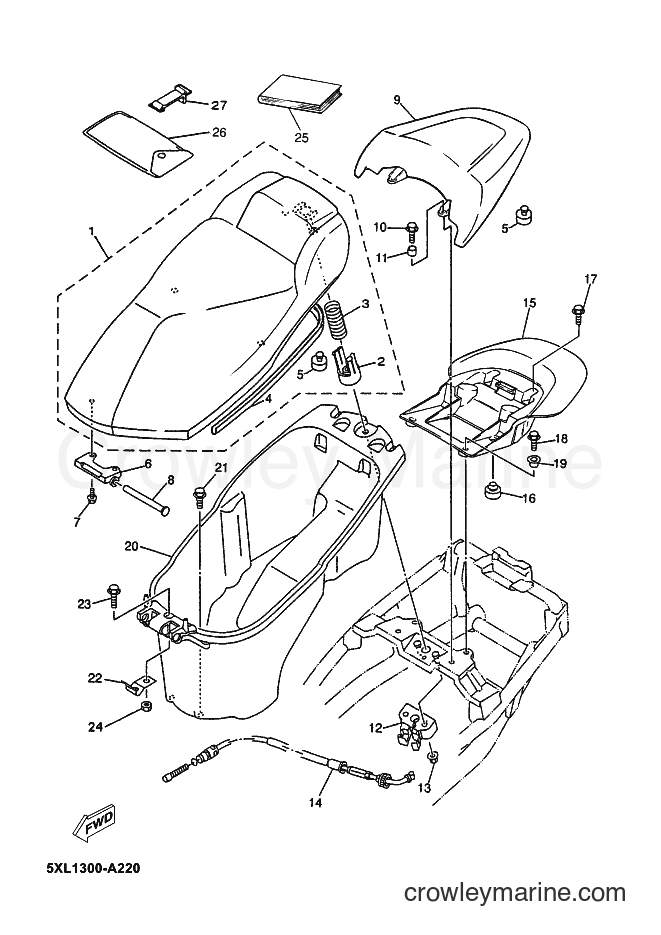

![Yamaha Motors YP180E (5XM2) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/eqGMbUxY.png)
1
Yamaha Motors
SINGLE SEAT ASSY5XL-F4710-10
Required: 1
SINGLE SEAT ASSY
Price unavailable
2
Yamaha Motors
. SUPPORT, SPRING 15DS-F4781-00
Required: 1
. SUPPORT, SPRING 1
Price unavailable
3
Yamaha Motors
. SPRING5DS-F479A-00
Required: 1
. SPRING
Price unavailable
4
Yamaha Motors
. SEAL5DS-F475M-00
Required: 1
. SEAL
Price unavailable
5
Yamaha Motors
. PAD, SEAT2RN-F4741-00
Required: 1
. PAD, SEAT
Price unavailable
6
Yamaha Motors
HINGE, SEAT5DS-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570N-06500-00
$0.85
You save $0.15
-15%
$11.47
You save $2.02
9
Yamaha Motors
TANDEM SEAT ASSY5XL-F4750-10
Required: 1
TANDEM SEAT ASSY
Price unavailable
10
Yamaha Motors
BOLT, FLANGE9582N-06020
Required: 2
BOLT, FLANGE
Price unavailable
-15%
11
Yamaha Motors
COLLAR90387-07573-00
Required: 2
COLLAR
Supersedes: 90387-06694-00
$8.92
You save $1.57
12
Yamaha Motors
SEAT LOCK ASSY5AD-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-15%
$5.94
You save $1.05
14
Yamaha Motors
CABLE, SEAT LOCK5DS-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
15
Yamaha Motors
HANDLE, SEAT5NR-F4773-00-4B
Required: 1
HANDLE, SEAT
Price unavailable
16
Yamaha Motors
PAD, SEAT2RN-F4741-00
Required: 2
PAD, SEAT
Price unavailable
-15%
$0.84
You save $0.15
-15%
18
Yamaha Motors
Flange Bolt95811-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 9580M-06025-00
No longer availableSearch Nationwide Inventory
$1.44
You save $0.26
19
Yamaha Motors
WASHER, PLATE90201-06815
Required: 2
WASHER, PLATE
Price unavailable
20
Yamaha Motors
BOX 15XL-F473R-00
Required: 1
BOX 1
Price unavailable
21
Yamaha Motors
BOLT90109-06X05
Required: 2
BOLT
Price unavailable
22
Yamaha Motors
SPRING5DS-F4758-00
Required: 1
SPRING
Price unavailable
-15%
23
Yamaha Motors
Flange Bolt95811-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06025-00
No longer availableSearch Nationwide Inventory
$1.44
You save $0.26
24
Yamaha Motors
NUT, FLANGE9570L-06300
Required: 1
NUT, FLANGE
Price unavailable
25
Yamaha Motors
MANUAL,OWNER'S 25XL-F819U-H0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
25
Yamaha Motors
MANUAL,OWNER'S 25XL-F819U-G0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
25
Yamaha Motors
MANUAL,OWNER'S 25XL-F819U-S0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
25
Yamaha Motors
MANUAL,OWNER'S 25XL-F819U-F0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
26
Yamaha Motors
TOOL KIT5DS-F8100-00
Required: 1
TOOL KIT
Price unavailable
27
Yamaha Motors
BAND, BATTERY1TK-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
