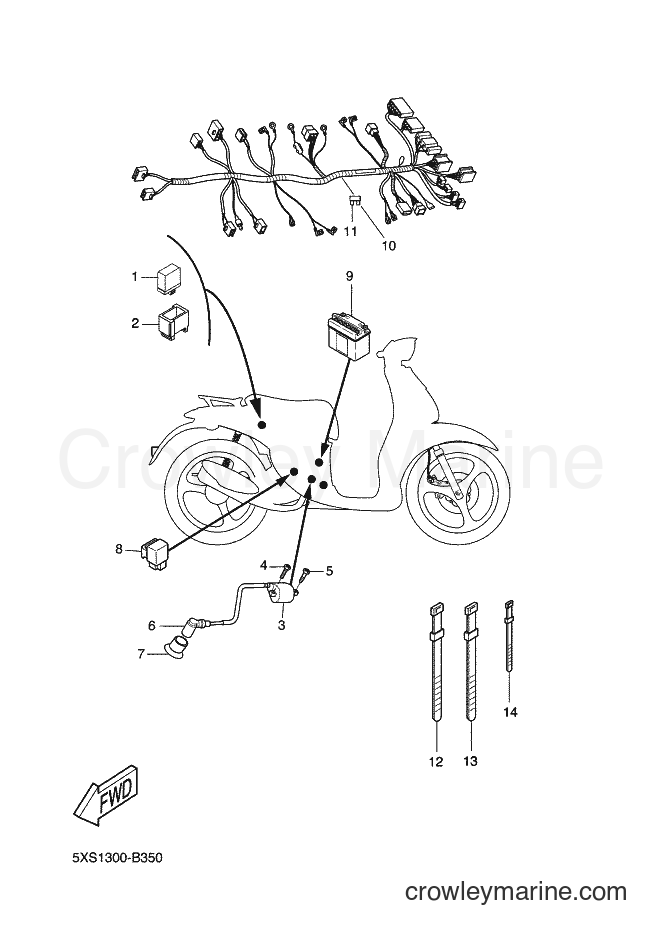

2003 Scooter YH50 - YH50 (5XS2) [020] ELECTRICAL 2 diagram
![Yamaha Motors YH50 (5XS2) [020] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/jesxCbOb.png)
1
Yamaha Motors
C.D.I. UNIT ASSY5BM-H5540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Yamaha Motors
BAND5WJ-H5546-00
Required: 1
BAND
Price unavailable
3
Yamaha Motors
IGNITION COIL ASSY3KJ-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-15%
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
$7.22
You save $1.27
5
Yamaha Motors
BOLT, FLANGE90105-06841
Required: 1
BOLT, FLANGE
Price unavailable
6
Yamaha Motors
PLUG CAP ASSY5PF-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
-15%
7
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
$7.22
You save $1.27
8
Yamaha Motors
RELAY ASSY5DS-H1950-00
Required: 1
RELAY ASSY
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$56.94
You save $10.05
9
Yamaha Motors
BATTERY ASSY4CU-H2110-30
Required: 1
BATTERY ASSY
Price unavailable
-15%
9
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY
Supersedes: 4SB-H2110-00-00
No longer availableSearch Nationwide Inventory
$25.49
You save $4.50
10
Yamaha Motors
WIRE HARNESS ASSY5XS-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Yamaha Motors
. FUSE 7.5A5BR-H2151-00
Required: 1
. FUSE 7.5A
Price unavailable
-15%
12
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
$4.67
You save $0.82
-15%
13
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 5
BAND, SWITCH CORD
$4.67
You save $0.82
-15%
14
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
