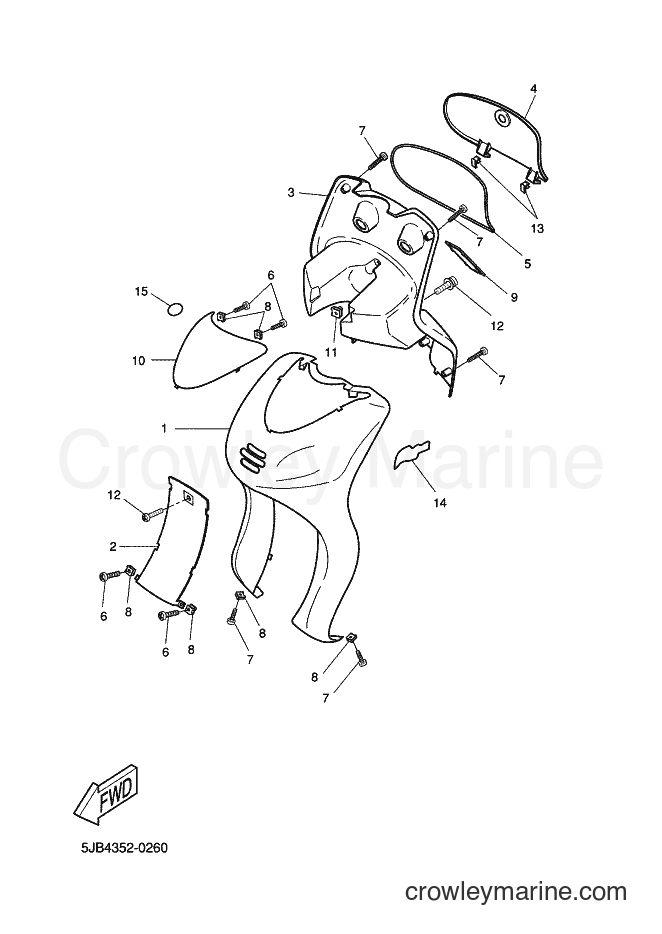

2003 Scooter YH50 - YH50 (5UB2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5UB2) [010] - LEG SHIELD
Change View:
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 15EU-F8311-00-P3
Required: 1
LEG SHIELD 1
Price unavailable
FENDER, INNER
2
Yamaha Motors
FENDER, INNER5EU-F1552-00-P3
Required: 1
FENDER, INNER
Price unavailable
LEG SHIELD 2
3
Yamaha Motors
LEG SHIELD 25EU-F8312-00-P3
Required: 1
LEG SHIELD 2
Price unavailable
LID
4
Yamaha Motors
LID5EU-F8313-00-P3
Required: 1
LID
Price unavailable
DAMPER
5
Yamaha Motors
DAMPER5EU-F8371-00
Required: 1
DAMPER
Price unavailable
SCREW, TAPPING
6
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 4
SCREW, TAPPING
Price unavailable
-15%
Cap
9
Yamaha Motors
Cap3WV-F8349-10-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
PANEL 1
10
Yamaha Motors
PANEL 15EU-F835U-00
Required: 1
PANEL 1
Price unavailable
-15%
Spring Nut
11
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
-15%
Screw with Washer
12
Yamaha Motors
Screw with Washer90159-06093-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
HINGE
13
Yamaha Motors
HINGE5EU-F837F-00
Required: 2
HINGE
Price unavailable
GRAPHIC 1
14
Yamaha Motors
GRAPHIC 15EU-F832C-00
Required: 1
GRAPHIC 1
Price unavailable
EMBLEM
15
Yamaha Motors
EMBLEM5MF-F8338-01
Required: 1
EMBLEM
Price unavailable
