All diagrams for this model

2003 Scooter XP500 - XP500 (5GJ9) [030] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

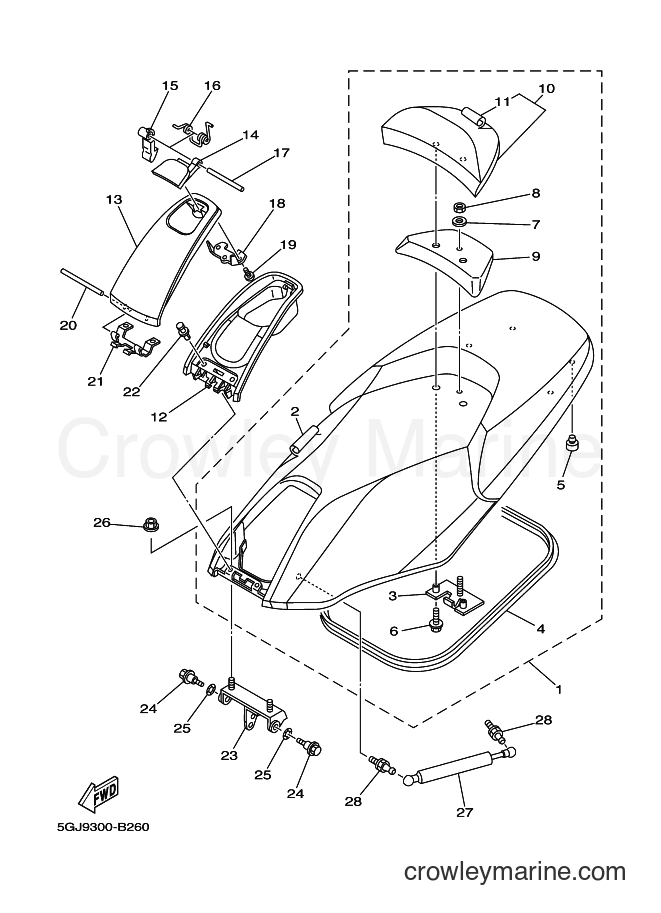

Yamaha Motors XP500 (5GJ9) [030] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5GJ-24730-20
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAT COVER COMP.
2
Yamaha Motors
. SEAT COVER COMP.5GJ-2470F-20
Required: 1
. SEAT COVER COMP.
Price unavailable
. BRACKET, SEAT
3
Yamaha Motors
. BRACKET, SEAT5GJ-24748-00
Required: 1
. BRACKET, SEAT
Price unavailable
. SEAL
4
Yamaha Motors
. SEAL5GJ-2475M-00
Required: 1
. SEAL
Price unavailable
. PAD, SEAT
5
Yamaha Motors
. PAD, SEAT5GJ-24741-00
Required: 4
. PAD, SEAT
Price unavailable
-15%
Plate Washer
7
Yamaha Motors
Plate Washer90201-06380-00
Required: 1
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$0.65
$0.55
You save $0.10
More details
-15%
95604-06200-00
8
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
. PLATE
9
Yamaha Motors
. PLATE5GJ-24792-00
Required: 1
. PLATE
Price unavailable
. SEAT BACK ASSY
10
Yamaha Motors
. SEAT BACK ASSY5GJ-24790-20
Required: 1
. SEAT BACK ASSY
Price unavailable
. . SEAT COVER ASSY
11
Yamaha Motors
. . SEAT COVER ASSY5GJ-2477A-20
Required: 1
. . SEAT COVER ASSY
Price unavailable
COVER, SEAT COMP.
12
Yamaha Motors
COVER, SEAT COMP.5GJ-2473F-00
Required: 1
COVER, SEAT COMP.
Price unavailable
LID 1
13
Yamaha Motors
LID 15GJ-2473T-00
Required: 1
LID 1
Price unavailable
LEVER, SEAT
14
Yamaha Motors
LEVER, SEAT5GJ-2477F-00
Required: 1
LEVER, SEAT
Price unavailable
-15%
Spring
16
Yamaha Motors
Spring4HC-24758-00-00
Required: 1
SPRING
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
-15%
Dowel Pin (4HC)
17
Yamaha Motors
Dowel Pin (4HC)93603-50195-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
COVER
18
Yamaha Motors
COVER5GJ-24217-00
Required: 1
COVER
Price unavailable
SCREW, TAPPING
19
Yamaha Motors
SCREW, TAPPING97707-04108
Required: 2
SCREW, TAPPING
Price unavailable
-15%
PIN
20
Yamaha Motors
PIN5GJ-24774-00-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
REINFORCEMENT
21
Yamaha Motors
REINFORCEMENT5GJ-24762-00
Required: 1
REINFORCEMENT
Price unavailable
-15%
Rivet
22
Yamaha Motors
Rivet90269-07076-00
Required: 3
RIVET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
HINGE 1
23
Yamaha Motors
HINGE 15GJ-2197J-00
Required: 1
HINGE 1
Price unavailable
-15%
Bolt
24
Yamaha Motors
Bolt90109-063F5-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Wave Washer
25
Yamaha Motors
Wave Washer90206-10036-00
Required: 2
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
-20%
Flange Nut
26
Yamaha Motors
Flange Nut95707-08500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.56
You save $0.39
More details
STOPPER
27
Yamaha Motors
STOPPER5GJ-2478G-00
Required: 1
STOPPER
Price unavailable
ARM
28
Yamaha Motors
ARM5GM-2474E-00
Required: 2
ARM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
