All diagrams for this model

2003 Scooter TZR50 - TZR50 (5WX2) [040] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

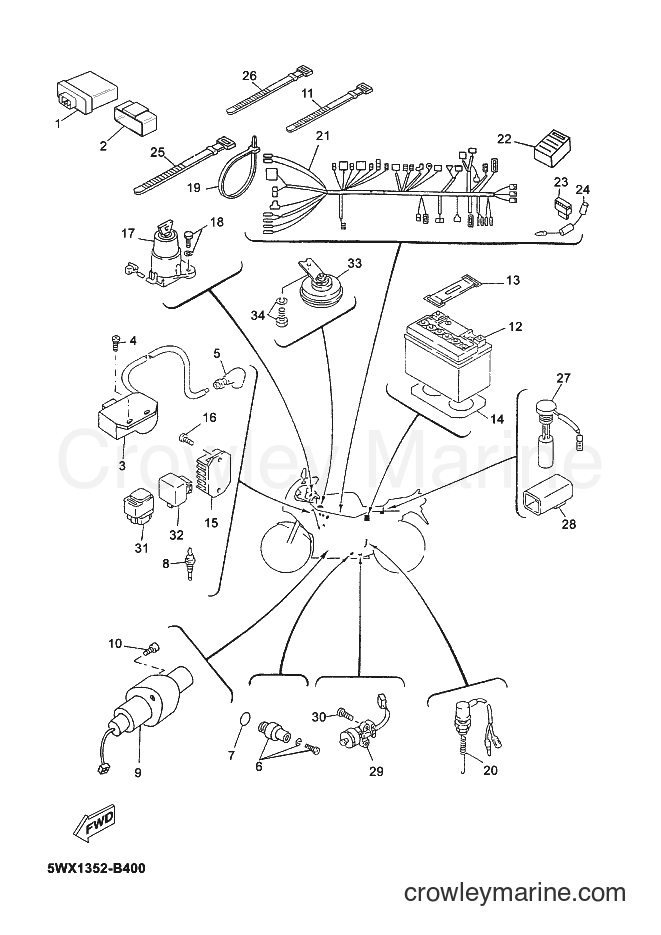

Yamaha Motors TZR50 (5WX2) [040] - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY5WX-H5540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BAND4BA-H5546-00
Required: 1
BAND
Price unavailable
IGNITION COIL ASSY
3
Yamaha Motors
IGNITION COIL ASSY5WX-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
BOLT
4
Yamaha Motors
BOLT9700L-06016
Required: 2
BOLT
Price unavailable
PLUG CAP ASSY
5
Yamaha Motors
PLUG CAP ASSY2JW-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
NEUTRAL SWITCH ASSY
6
Yamaha Motors
NEUTRAL SWITCH ASSY3NC-H2540-00
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
GASKET
7
Yamaha Motors
GASKET90430-09824
Required: 1
GASKET
Price unavailable
THERMO SWITCH ASSY
8
Yamaha Motors
THERMO SWITCH ASSY5WX-H2560-10
Required: 1
THERMO SWITCH ASSY
Price unavailable
STARTING MOTOR ASSY
9
Yamaha Motors
STARTING MOTOR ASSY4YV-H1800-10
Required: 1
STARTING MOTOR ASSY
Price unavailable
BOLT, HEXAGON SOCKET HEAD
10
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06X23
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
CLAMP
11
Yamaha Motors
CLAMP90464-50X03
Required: 5
CLAMP
Price unavailable
BATTERY ASSY
12
Yamaha Motors
BATTERY ASSY5KK-H2100-00
Required: 1
BATTERY ASSY
Price unavailable
BAND, BATTERY
13
Yamaha Motors
BAND, BATTERY4BA-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
SEAT, BATTERY
14
Yamaha Motors
SEAT, BATTERY4BA-H2122-00
Required: 1
SEAT, BATTERY
Price unavailable
RECTIFIER & REGULATOR ASSY
15
Yamaha Motors
RECTIFIER & REGULATOR ASSY5RN-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
BOLT, FLANGE
16
Yamaha Motors
BOLT, FLANGE9502L-06012
Required: 1
BOLT, FLANGE
Price unavailable
MAIN SWITCH STEERING LOCK
17
Yamaha Motors
MAIN SWITCH STEERING LOCK5WX-W2501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
BOLT, HEXAGON SOCKET HEAD
18
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-08X04
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
CLAMP
19
Yamaha Motors
CLAMP90464-21X00
Required: 1
CLAMP
Price unavailable
STOP SWITCH ASSY
20
Yamaha Motors
STOP SWITCH ASSY4BA-H2530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
21
Yamaha Motors
WIRE HARNESS ASSY5WX-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
BAND
22
Yamaha Motors
BAND4BA-H2155-00
Required: 1
BAND
Price unavailable
FUSE
23
Yamaha Motors
FUSE4BA-H2151-00
Required: 2
FUSE
Price unavailable
DIODE ASSY
24
Yamaha Motors
DIODE ASSY4YV-H1980-00
Required: 1
DIODE ASSY
Price unavailable
BAND, SWITCH CORD
25
Yamaha Motors
BAND, SWITCH CORD5T8-H3936-10
Required: 1
BAND, SWITCH CORD
Price unavailable
CLAMP
26
Yamaha Motors
CLAMP90464-50X03
Required: 3
CLAMP
Price unavailable
-15%
Oil Level Gauge Assembly
27
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
RELAY ASSY
28
Yamaha Motors
RELAY ASSY5RN-H1950-01
Required: 1
RELAY ASSY
Price unavailable
BOLT, HEXAGON SOCKET HEAD
30
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-05822
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
RELAY ASSY
31
Yamaha Motors
RELAY ASSY5DS-H1950-00
Required: 1
RELAY ASSY
Price unavailable
FLASHER RELAY ASSY
32
Yamaha Motors
FLASHER RELAY ASSY5WX-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
HORN
33
Yamaha Motors
HORN4MJ-H3371-00
Required: 1
HORN
Price unavailable
BOLT, WITH WASHER
34
Yamaha Motors
BOLT, WITH WASHER9750M-06416
Required: 1
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
