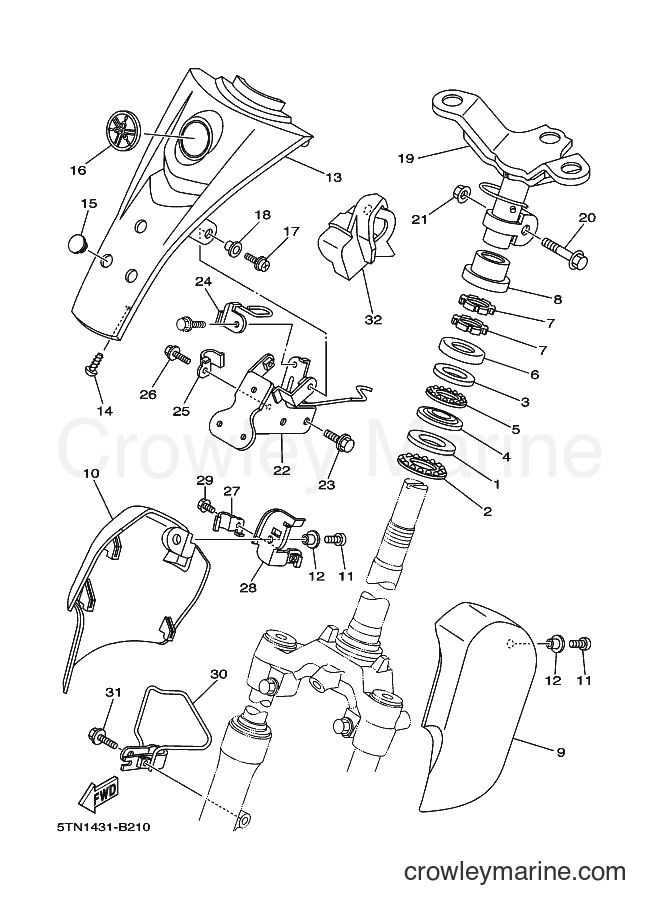

2003 Scooter L-110D - L-110D (5TN2) [010] STEERING diagram
![Yamaha Motors L-110D (5TN2) [010] - STEERING](https://cdn.crowleymarine.com/yamaha/jCGRdcid.png)
-15%
1
Yamaha Motors
Ball RaceB6E-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 156-23412-00-00
$12.32
You save $2.17
2
Yamaha Motors
RETAINER, BALL BEARING156-F341E-00
Required: 1
RETAINER, BALL BEARING
Price unavailable
-15%
3
Yamaha Motors
Ball RaceBP2-23412-00-00
Required: 1
RACE, BALL 2
Supersedes: 22F-23412-01-00
$7.22
You save $1.27
-15%
4
Yamaha Motors
BALL RACEBP2-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 22F-23411-01-00
$10.62
You save $1.87
5
Yamaha Motors
RETAINER, BALL BEARING22F-F341E-00
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Yamaha Motors
COVER, BALL RACE 22JH-F3416-00
Required: 1
COVER, BALL RACE 2
Price unavailable
-15%
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
$22.94
You save $4.05
8
Yamaha Motors
COVER, BALL RACE 14VK-F3415-00
Required: 1
COVER, BALL RACE 1
Price unavailable
9
Yamaha Motors
COVER, OUTER 15TN-F3122-00-P2
Required: 1
COVER, OUTER 1
Price unavailable
10
Yamaha Motors
COVER, OUTER 25TN-F3132-00-P2
Required: 1
COVER, OUTER 2
Price unavailable
-15%
11
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW, PAN HEAD
$2.96
You save $0.52
-15%
$8.92
You save $1.57
13
Yamaha Motors
PANEL, FRONT5TN-F3391-00-7M
Required: 1
PANEL, FRONT
Price unavailable
-15%
14
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42
15
Yamaha Motors
PLUG90338-15800
Required: 3
PLUG
Price unavailable
16
Yamaha Motors
EMBLEM 15LN-F313B-00
Required: 1
EMBLEM 1
Price unavailable
17
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 2
SCREW, WITH WASHER
Price unavailable
-15%
$8.92
You save $1.57
19
Yamaha Motors
BRACKET, HANDLE5TN-F3461-00
Required: 1
BRACKET, HANDLE
Price unavailable
-15%
$8.07
You save $1.42
-15%
21
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
$8.07
You save $1.42
22
Yamaha Motors
STAY5TN-F331A-00
Required: 1
STAY
Price unavailable
-15%
23
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08030-00
$8.07
You save $1.42
24
Yamaha Motors
HOLDER, BRAKE HOSE 25TN-F5876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
25
Yamaha Motors
HOLDER, BRAKE HOSE5TN-F5887-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
-15%
26
Yamaha Motors
Flange Bolt95817-08030-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-08030-00
$8.07
You save $1.42
27
Yamaha Motors
HOLDER, BRAKE HOSE5TN-F5886-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable
28
Yamaha Motors
HOLDER, BRAKE HOSE 15TN-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
29
Yamaha Motors
BOLT, FLANGE90105-06814
Required: 1
BOLT, FLANGE
Price unavailable
30
Yamaha Motors
GUIDE, CABLE5TN-F331E-00
Required: 1
GUIDE, CABLE
Price unavailable
31
Yamaha Motors
BOLT, FLANGE90105-06814
Required: 1
BOLT, FLANGE
Price unavailable
32
Yamaha Motors
PROTECTOR5TN-F3472-00
Required: 1
PROTECTOR
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
