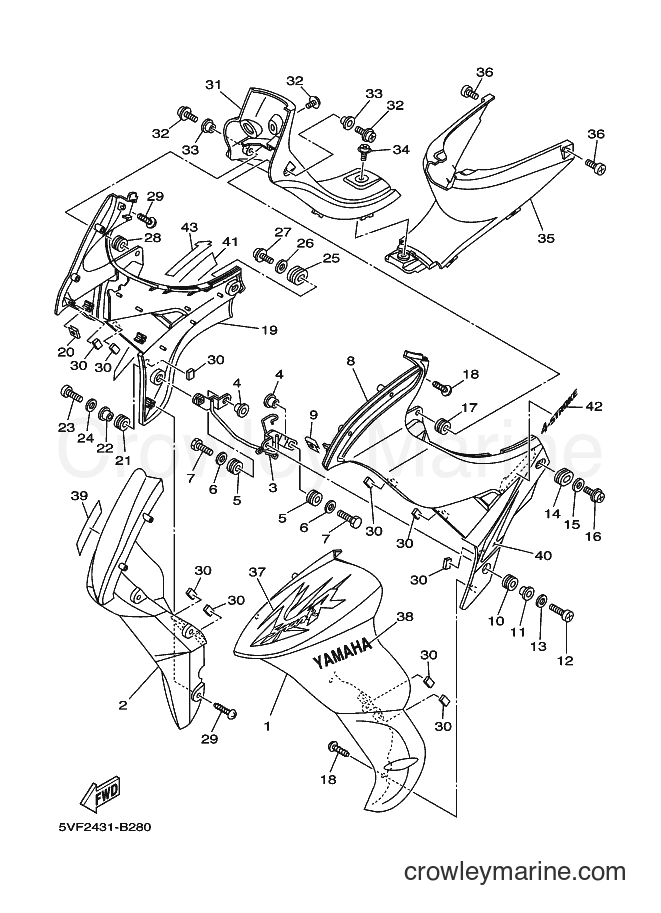

Yamaha Motors L-110C (5VF2) [010] - LEG SHIELD
Change View:
LEG SHIELD 1
1
Yamaha Motors
LEG SHIELD 15TN-F8311-00-P2
Required: 1
LEG SHIELD 1
Price unavailable
LEG SHIELD 2
2
Yamaha Motors
LEG SHIELD 25TN-F8312-00-P2
Required: 1
LEG SHIELD 2
Price unavailable
STAY, LEG SHIELD
3
Yamaha Motors
STAY, LEG SHIELD5TN-F8332-00
Required: 1
STAY, LEG SHIELD
Price unavailable
COLLAR
4
Yamaha Motors
COLLAR90387-06814
Required: 2
COLLAR
Price unavailable
-15%
Grommet
5
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
6
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
-15%
Hexagon Bolt
7
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
COVER, LOWER
8
Yamaha Motors
COVER, LOWER5TN-F8385-00-P2
Required: 1
COVER, LOWER
Price unavailable
-15%
Grommet (3AK)
10
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
11
Yamaha Motors
COLLAR90387-06846
Required: 1
COLLAR
Price unavailable
-15%
Binding Screw
12
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
13
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
GROMMET
14
Yamaha Motors
GROMMET90480-01800
Required: 1
GROMMET
Price unavailable
WASHER, PLATE
15
Yamaha Motors
WASHER, PLATE90201-06828
Required: 1
WASHER, PLATE
Price unavailable
SCREW, WITH WASHER
16
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
GROMMET
17
Yamaha Motors
GROMMET90480-13864
Required: 1
GROMMET
Price unavailable
-15%
Truss Screw
18
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
COVER, UNDER
19
Yamaha Motors
COVER, UNDER5TN-F8395-00-P2
Required: 1
COVER, UNDER
Price unavailable
-15%
Grommet (3AK)
21
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COLLAR
22
Yamaha Motors
COLLAR90387-09801
Required: 1
COLLAR
Price unavailable
-15%
Binding Screw
23
Yamaha Motors
Binding Screw98907-06020-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
-15%
Plate Washer
24
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
GROMMET
25
Yamaha Motors
GROMMET90480-01800
Required: 1
GROMMET
Price unavailable
WASHER, PLATE
26
Yamaha Motors
WASHER, PLATE90201-06828
Required: 1
WASHER, PLATE
Price unavailable
SCREW, WITH WASHER
27
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 1
SCREW, WITH WASHER
Price unavailable
GROMMET
28
Yamaha Motors
GROMMET90480-13864
Required: 1
GROMMET
Price unavailable
-15%
Truss Screw
29
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
DAMPER
30
Yamaha Motors
DAMPER5LN-F8371-00
Required: 10
DAMPER
Price unavailable
COVER 1
31
Yamaha Motors
COVER 15TN-F842M-00
Required: 1
COVER 1
Price unavailable
SCREW, WITH WASHER
32
Yamaha Motors
SCREW, WITH WASHER90159-06838
Required: 3
SCREW, WITH WASHER
Price unavailable
COLLAR
33
Yamaha Motors
COLLAR90387-06846
Required: 2
COLLAR
Price unavailable
-15%
Screw with Washer
34
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
COVER 2
35
Yamaha Motors
COVER 25LN-F842N-00
Required: 1
COVER 2
Price unavailable
-15%
Truss Screw
36
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GRAPHIC 3
37
Yamaha Motors
GRAPHIC 35VF-F8393-00
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 1
40
Yamaha Motors
GRAPHIC 15VF-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
41
Yamaha Motors
GRAPHIC 25VF-F8392-00
Required: 1
GRAPHIC 2
Price unavailable
EMBLEM
42
Yamaha Motors
EMBLEM5TN-F8315-00
Required: 1
EMBLEM
Price unavailable
EMBLEM
43
Yamaha Motors
EMBLEM5TN-F8315-00
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
