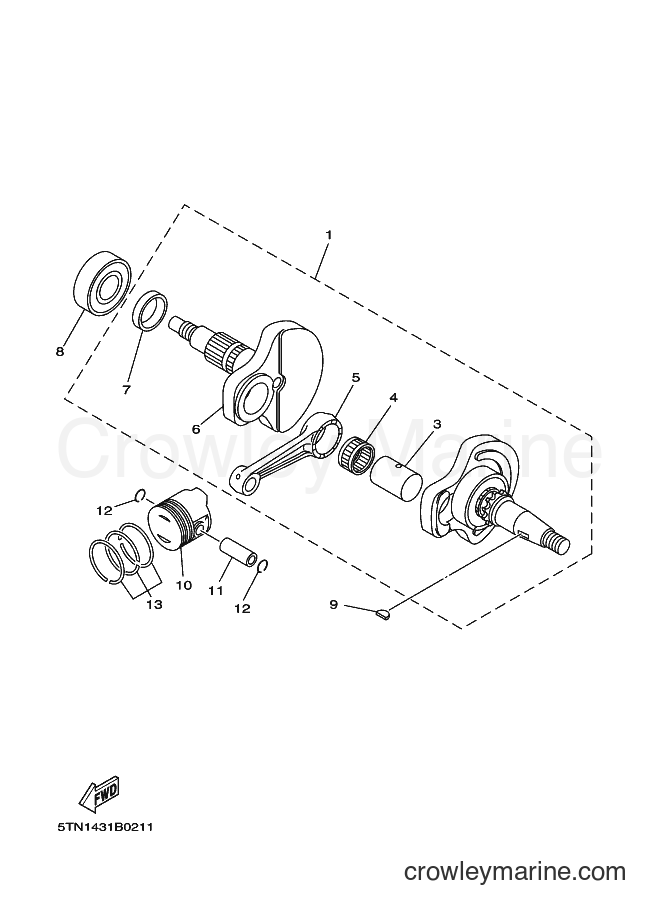

Yamaha Motors L-110C (5VF2) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSY5TN-WE140-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
. PIN, CRANK 1
3
Yamaha Motors
. PIN, CRANK 15HV-E1681-00
Required: 1
. PIN, CRANK 1
Price unavailable
. BEARING
4
Yamaha Motors
. BEARING93310-526Y2
Required: 1
. BEARING
Price unavailable
. ROD, CONNECTING
5
Yamaha Motors
. ROD, CONNECTING5TN-E1651-00
Required: 1
. ROD, CONNECTING
Price unavailable
. CRANK 2
6
Yamaha Motors
. CRANK 25TN-E1422-00
Required: 1
. CRANK 2
Price unavailable
. SPACER
7
Yamaha Motors
. SPACER5HV-E1445-00
Required: 1
. SPACER
Price unavailable
BEARING
8
Yamaha Motors
BEARING93306-205YK
Required: 1
BEARING
Price unavailable
-15%
Woodruff Key
9
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
1 aftermarket alternative
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
PISTON (0.50MM O/S)
10
Yamaha Motors
PISTON (0.50MM O/S)5TN-E1636-00
Required: 1
PISTON (0.50MM O/S)
Price unavailable
PISTON (1.00MM O/S)
10
Yamaha Motors
PISTON (1.00MM O/S)5TN-E1638-00
Required: 1
PISTON (1.00MM O/S)
Price unavailable
PISTON (STD)
10
Yamaha Motors
PISTON (STD)5TN-E1631-00
Required: 1
PISTON (STD)
Price unavailable
PIN, PISTON
11
Yamaha Motors
PIN, PISTON4YS-E1633-00
Required: 1
PIN, PISTON
Price unavailable
-15%
Circle Clip
12
Yamaha Motors
Circle Clip93450-14088-00
Required: 2
CIRCLIP
2 aftermarket alternatives
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
PISTON RING SET (STD)
13
Yamaha Motors
PISTON RING SET (STD)5TN-E1603-00
Required: 1
PISTON RING SET (STD)
Price unavailable
PISTON RING SET (1.00MM O/S)
13
Yamaha Motors
PISTON RING SET (1.00MM O/S)5TN-E1607-00
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
PISTON RING SET (0.50MM O/S)
13
Yamaha Motors
PISTON RING SET (0.50MM O/S)5TN-E1605-00
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
