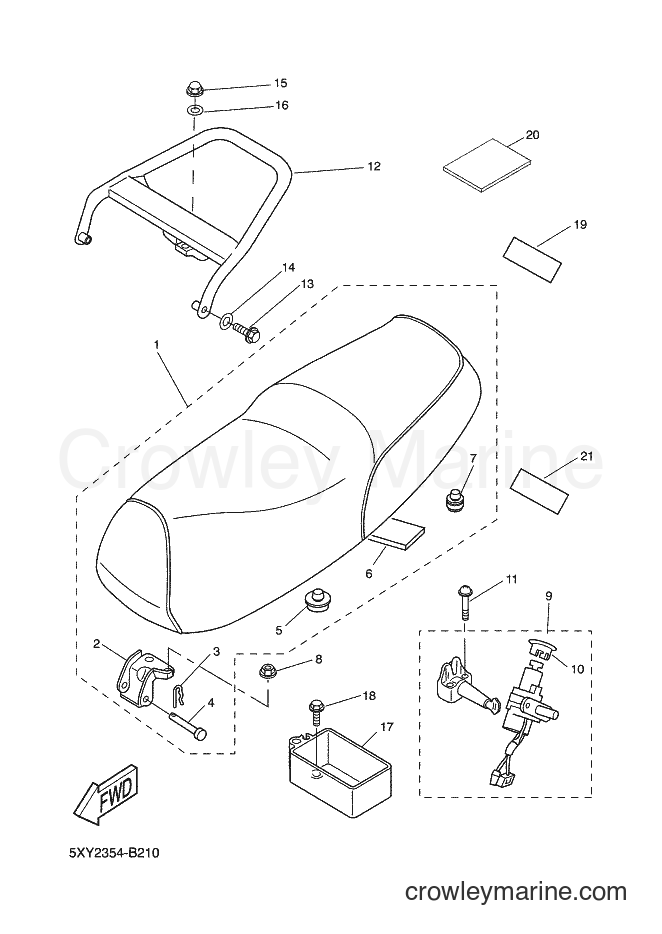

2003 Scooter CW50L - CW50L (5YA2) [020] SEAT diagram
![Yamaha Motors CW50L (5YA2) [020] - SEAT](https://cdn.crowleymarine.com/yamaha/viE6mvZq.png)
1
Yamaha Motors
DOUBLE SEAT ASSY5SA-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
-15%
2
Yamaha Motors
Seat Hinge3VL-F4726-00-00
Required: 1
. HINGE, SEAT
No longer availableSearch Nationwide Inventory
$13.59
You save $2.40
-15%
No longer availableSearch Nationwide Inventory
$2.80
You save $0.50
-15%
4
Yamaha Motors
SHAFT,FUEL CHARGE3VL-F4572-00-00
Required: 1
. SHAFT,FUEL CHARGE
No longer availableSearch Nationwide Inventory
$7.64
You save $1.35
-15%
$7.22
You save $1.27
-15%
6
Yamaha Motors
DAMPER SEAT3VL-F4737-00-00
Required: 1
. DAMPER, SEAT
No longer availableSearch Nationwide Inventory
$1.83
You save $0.32
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
$10.62
You save $1.87
9
Yamaha Motors
KEY SET5XW-H2021-00
Required: 1
KEY SET
Price unavailable
-15%
10
Yamaha Motors
Cap1S0-H2552-00-00
Required: 1
. CAP
Supersedes: 4VV-H2532-00-00
$6.79
You save $1.20
-15%
11
Yamaha Motors
Screw with Washer90159-06064-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
12
Yamaha Motors
CARRIER, REAR4VV-F4842-10-P0
Required: 1
CARRIER, REAR
Price unavailable
-15%
13
Yamaha Motors
Flange Bolt95024-08055-00
Required: 2
BOLT,FLG,(SMALL HEAD)
$8.07
You save $1.42
-20%
14
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08089-00
In stock
Only 5 remaining
$2.24
You save $0.56
15
Yamaha Motors
NUT, CROWN90176-08X00
Required: 1
NUT, CROWN
Price unavailable
-15%
16
Yamaha Motors
Plate Washer90201-08326-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42
-15%
No longer availableSearch Nationwide Inventory
$11.47
You save $2.02
-15%
18
Yamaha Motors
Bolt With Washer90119-06018-00
Required: 2
BOLT, WITH WASHER
$8.07
You save $1.42
19
Yamaha Motors
LABEL, CAUTION4FG-F415A-00
Required: 1
LABEL, CAUTION
Price unavailable
20
Yamaha Motors
MANUAL,OWNER'S 25XX-F819U-P0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
20
Yamaha Motors
MANUAL,OWNER'S 25XW-F819U-H0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
20
Yamaha Motors
MANUAL,OWNER'S 25XX-F819U-S0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
20
Yamaha Motors
MANUAL,OWNER'S 25XX-F819U-D0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
20
Yamaha Motors
MANUAL,OWNER'S 25XX-F819U-F0
Required: 1
MANUAL,OWNER'S 2
Price unavailable
21
Yamaha Motors
LABEL, CAUTION5HG-F118K-01
Required: 1
LABEL, CAUTION
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
