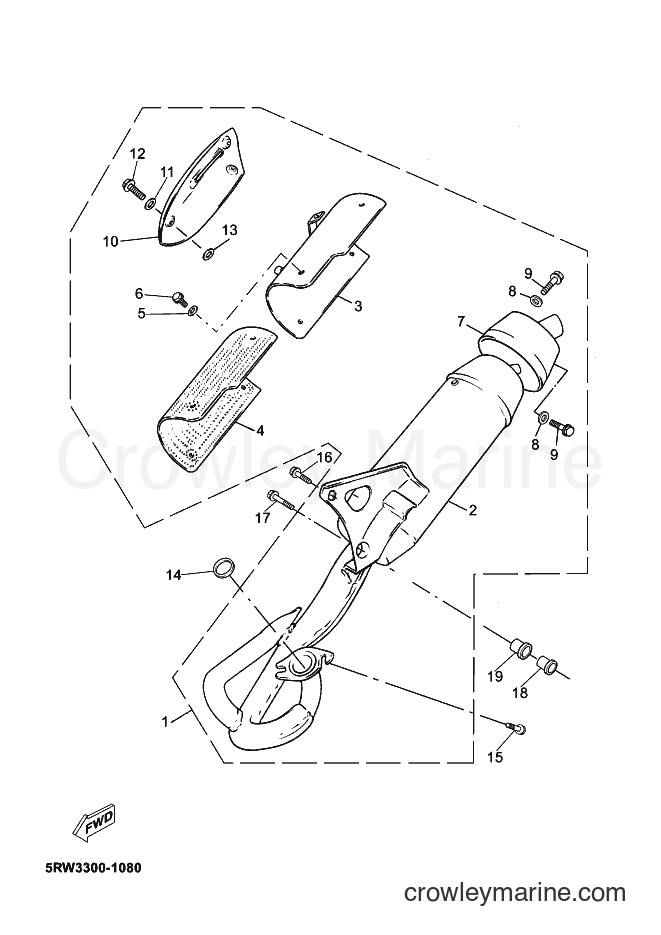

2003 Scooter CS50Z - CS50Z (5RW9) [060] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50Z (5RW9) [060] - EXHAUST
Change View:
EXHAUST PIPE COMP.
1
Yamaha Motors
EXHAUST PIPE COMP.5RW-E4602-00
Required: 1
EXHAUST PIPE COMP.
Price unavailable
. EXHAUST PIPE ASSY 1
2
Yamaha Motors
. EXHAUST PIPE ASSY 15RW-E4610-00
Required: 1
. EXHAUST PIPE ASSY 1
Price unavailable
. PROTECTOR, MUFFLER 1
3
Yamaha Motors
. PROTECTOR, MUFFLER 15RW-E4718-00
Required: 1
. PROTECTOR, MUFFLER 1
Price unavailable
. PROTECTOR, MUFFLER 2
4
Yamaha Motors
. PROTECTOR, MUFFLER 25BW-E4728-00
Required: 1
. PROTECTOR, MUFFLER 2
Price unavailable
-15%
WASHER
5
Yamaha Motors
WASHER9290M-06600-00
Required: 4
. WASHER
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
. SCREW, BIND
6
Yamaha Motors
. SCREW, BIND9890M-06008
Required: 4
. SCREW, BIND
Price unavailable
. PROTECTOR, MUFFLER 2
7
Yamaha Motors
. PROTECTOR, MUFFLER 25RN-E4728-00
Required: 1
. PROTECTOR, MUFFLER 2
Price unavailable
-15%
WASHER
8
Yamaha Motors
WASHER9290M-06600-00
Required: 3
. WASHER
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
. SCREW, BINDING
9
Yamaha Motors
. SCREW, BINDING90154-06X03
Required: 3
. SCREW, BINDING
Price unavailable
. EMBLEM, PROTECTOR
10
Yamaha Motors
. EMBLEM, PROTECTOR5RW-E4729-00
Required: 1
. EMBLEM, PROTECTOR
Price unavailable
-15%
WASHER
11
Yamaha Motors
WASHER9290M-06600-00
Required: 3
. WASHER
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
-15%
Bind Screw
12
Yamaha Motors
Bind Screw98907-06012-00
Required: 3
. SCREW, BIND
Supersedes: 9890M-06012-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
. WASHER, PROTECTOR
13
Yamaha Motors
. WASHER, PROTECTOR5BW-E4766-00
Required: 3
. WASHER, PROTECTOR
Price unavailable
GASKET, EXHAUST PIPE
14
Yamaha Motors
GASKET, EXHAUST PIPE5AD-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
SCREW
15
Yamaha Motors
SCREW90149-06X04
Required: 2
SCREW
Price unavailable
BOLT, FLANGE
16
Yamaha Motors
BOLT, FLANGE9581M-08020
Required: 1
BOLT, FLANGE
Price unavailable
BOLT, FLANGE
17
Yamaha Motors
BOLT, FLANGE9581M-08030
Required: 1
BOLT, FLANGE
Price unavailable
-15%
GROMMET, WATER TUBE (UPPER)
18
Yamaha Motors
GROMMET, WATER TUBE (UPPER)4MJ-E4445-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
COLLAR
19
Yamaha Motors
COLLAR4MJ-E4779-00
Required: 1
COLLAR
Price unavailable
