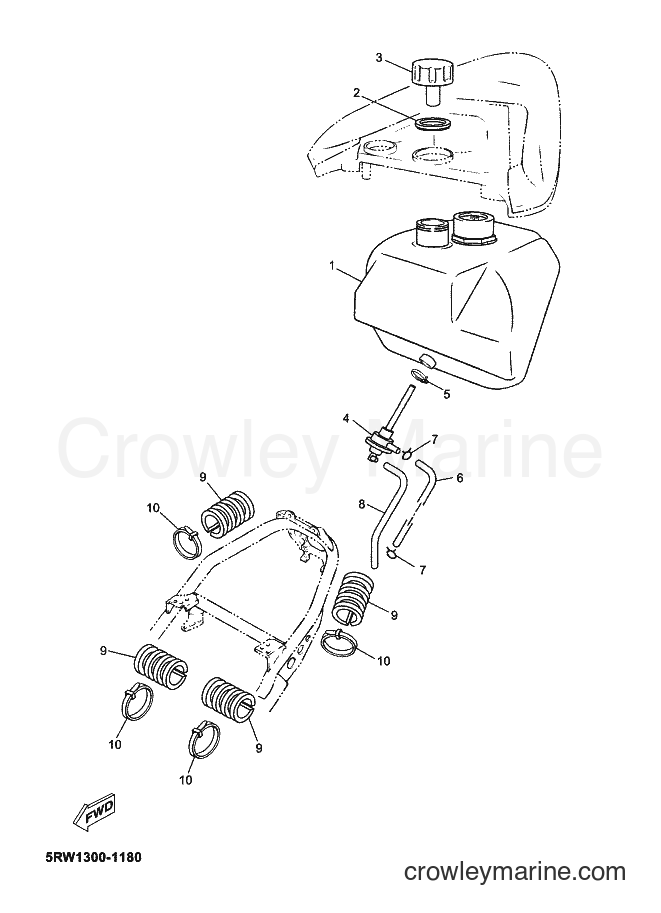

2003 Scooter CS50 - CS50 (5RW7) [080] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (5RW7) [080] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.5RW-F4110-00
Required: 1
FUEL TANK COMP.
Price unavailable
SEAL
2
Yamaha Motors
SEAL5AD-F414G-00
Required: 1
SEAL
Price unavailable
CAP ASSY
3
Yamaha Motors
CAP ASSY5BV-F4610-00
Required: 1
CAP ASSY
Price unavailable
FUEL COCK ASSY 1
4
Yamaha Motors
FUEL COCK ASSY 15KK-F4500-00
Required: 1
FUEL COCK ASSY 1
Price unavailable
HOSE CLAMP ASSY
5
Yamaha Motors
HOSE CLAMP ASSY90450-27X00
Required: 1
HOSE CLAMP ASSY
Price unavailable
PIPE, FUEL 1
6
Yamaha Motors
PIPE, FUEL 15RW-F4311-00
Required: 1
PIPE, FUEL 1
Price unavailable
CLIP
7
Yamaha Motors
CLIP90467-08853
Required: 2
CLIP
Price unavailable
PIPE
8
Yamaha Motors
PIPE5RW-E4349-00
Required: 1
PIPE
Price unavailable
DAMPER, LOCATING 1
9
Yamaha Motors
DAMPER, LOCATING 15RW-F4181-00
Required: 4
DAMPER, LOCATING 1
Price unavailable
CLAMP
10
Yamaha Motors
CLAMP90464-50X03
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
