2002 Scooter DT50R - DT50R (5BK3) [020] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

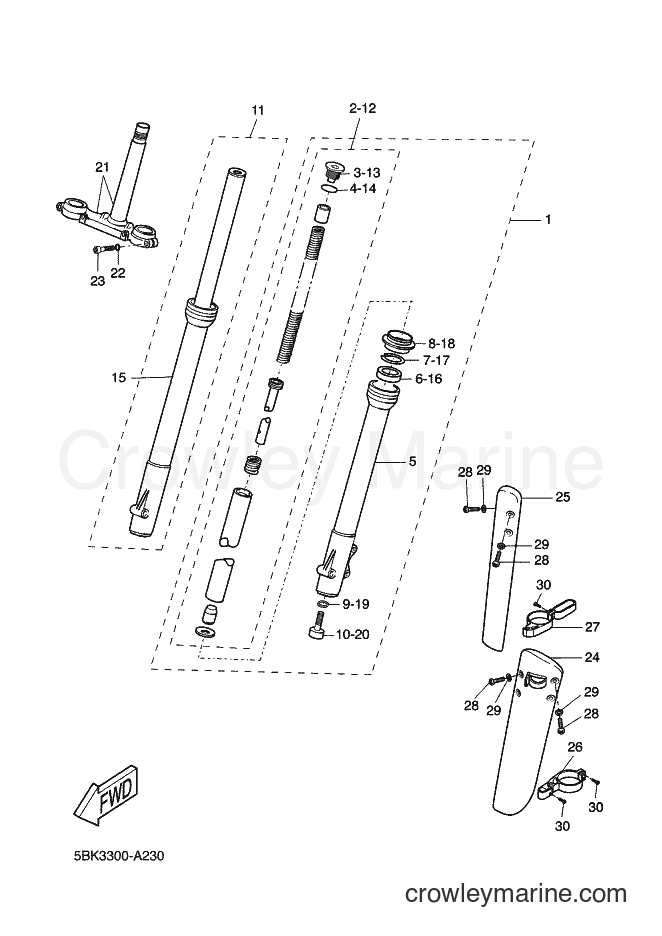

Yamaha Motors DT50R (5BK3) [020] - FRONT FORK
Change View:
ARM ASSY 1
1
Yamaha Motors
ARM ASSY 15BK-F3360-00
Required: 1
ARM ASSY 1
Price unavailable
. INNER TUBE COMP.1
2
Yamaha Motors
. INNER TUBE COMP.15BK-F3110-00
Required: 1
. INNER TUBE COMP.1
Price unavailable
. . BOLT, CAP
3
Yamaha Motors
. . BOLT, CAP5BK-F3111-00
Required: 1
. . BOLT, CAP
Price unavailable
. . GASKET
4
Yamaha Motors
. . GASKET5BK-F3114-00
Required: 1
. . GASKET
Price unavailable
. TUBE, OUTER (L.H)
5
Yamaha Motors
. TUBE, OUTER (L.H)5BK-F3126-00
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
. OIL SEAL
6
Yamaha Motors
. OIL SEAL5BK-F3145-00
Required: 1
. OIL SEAL
Price unavailable
. RING, SNAP
7
Yamaha Motors
. RING, SNAP3HL-F3156-00
Required: 1
. RING, SNAP
Price unavailable
. SEAL, DUST
8
Yamaha Motors
. SEAL, DUST5BK-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
. WASHER
9
Yamaha Motors
. WASHER5BK-F3456-00
Required: 1
. WASHER
Price unavailable
. BOLT, HEXAGON SOCKET HEAD
10
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD3HL-F3181-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
ARM ASSY 2
11
Yamaha Motors
ARM ASSY 25BK-F3370-00
Required: 1
ARM ASSY 2
Price unavailable
. INNER TUBE COMP.1
12
Yamaha Motors
. INNER TUBE COMP.15BK-F3110-00
Required: 1
. INNER TUBE COMP.1
Price unavailable
. . BOLT, CAP
13
Yamaha Motors
. . BOLT, CAP5BK-F3111-00
Required: 1
. . BOLT, CAP
Price unavailable
. . GASKET
14
Yamaha Motors
. . GASKET5BK-F3114-00
Required: 1
. . GASKET
Price unavailable
. TUBE, OUTER 2
15
Yamaha Motors
. TUBE, OUTER 25BK-F3136-00
Required: 1
. TUBE, OUTER 2
Price unavailable
. OIL SEAL
16
Yamaha Motors
. OIL SEAL5BK-F3145-00
Required: 1
. OIL SEAL
Price unavailable
. RING, SNAP
17
Yamaha Motors
. RING, SNAP3HL-F3156-00
Required: 1
. RING, SNAP
Price unavailable
. SEAL, DUST
18
Yamaha Motors
. SEAL, DUST5BK-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
. WASHER
19
Yamaha Motors
. WASHER5BK-F3456-00
Required: 1
. WASHER
Price unavailable
. BOLT, HEXAGON SOCKET HEAD
20
Yamaha Motors
. BOLT, HEXAGON SOCKET HEAD3HL-F3181-00
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
UNDER BRACKET SUB COMP.
21
Yamaha Motors
UNDER BRACKET SUB COMP.5BK-F3440-00
Required: 1
UNDER BRACKET SUB COMP.
Price unavailable
WASHER
22
Yamaha Motors
WASHER5BK-F3456-00
Required: 2
WASHER
Price unavailable
BOLT, FITTING 2
23
Yamaha Motors
BOLT, FITTING 25BK-F3452-00
Required: 2
BOLT, FITTING 2
Price unavailable
PROTECTER COMP., 1
24
Yamaha Motors
PROTECTER COMP., 15BK-F314H-10
Required: 1
PROTECTER COMP., 1
Price unavailable
PROTECTER COMP., 1
24
Yamaha Motors
PROTECTER COMP., 15BK-F314H-00
Required: 1
PROTECTER COMP., 1
Price unavailable
PROTECTER COMP., 2
25
Yamaha Motors
PROTECTER COMP., 25BK-F314J-10
Required: 1
PROTECTER COMP., 2
Price unavailable
PROTECTER COMP., 2
25
Yamaha Motors
PROTECTER COMP., 25BK-F314J-00
Required: 1
PROTECTER COMP., 2
Price unavailable
PROTECTER GUIDE COMP., 1
26
Yamaha Motors
PROTECTER GUIDE COMP., 15BK-F314F-00
Required: 1
PROTECTER GUIDE COMP., 1
Price unavailable
PROTECTER GUIDE COMP., 1
26
Yamaha Motors
PROTECTER GUIDE COMP., 15BK-F314F-10
Required: 1
PROTECTER GUIDE COMP., 1
Price unavailable
PROTECTER GUIDE COMP., 2
27
Yamaha Motors
PROTECTER GUIDE COMP., 25BK-F314G-10
Required: 1
PROTECTER GUIDE COMP., 2
Price unavailable
PROTECTER GUIDE COMP., 2
27
Yamaha Motors
PROTECTER GUIDE COMP., 25BK-F314G-00
Required: 1
PROTECTER GUIDE COMP., 2
Price unavailable
SCREW
28
Yamaha Motors
SCREW5BK-F3119-10
Required: 8
SCREW
Price unavailable
WASHER
29
Yamaha Motors
WASHER5BK-F3444-00
Required: 8
WASHER
Price unavailable
SCREW
30
Yamaha Motors
SCREW5BK-F3119-00
Required: 5
SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
