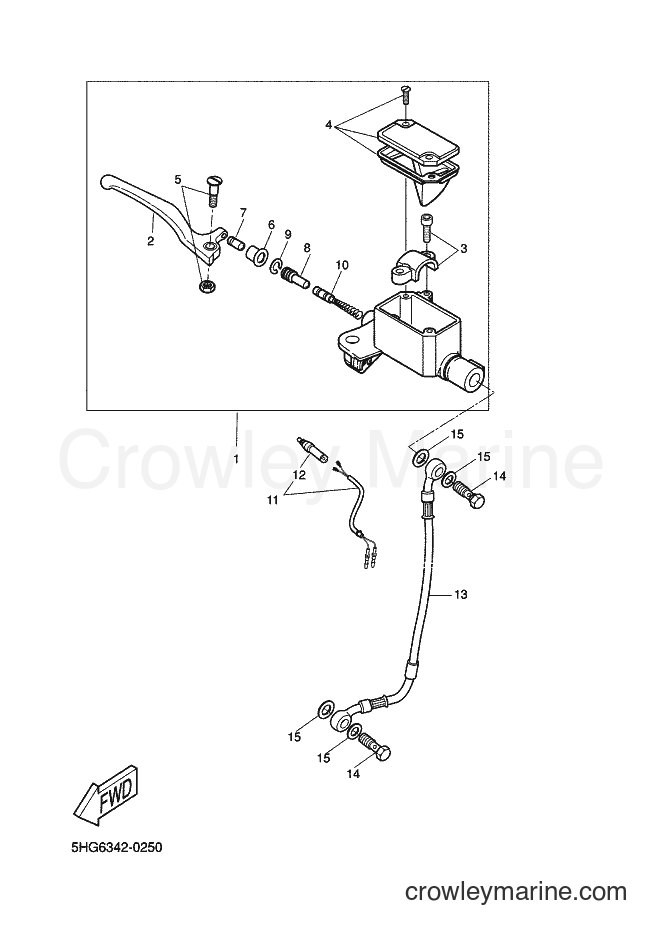

2002 Scooter CW50 - CW50 (5MS2) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5MS2) [010] - FRONT MASTER CYLINDER
Change View:
. LEVER 2
2
Yamaha Motors
. LEVER 24VV-H3922-00
Required: 1
. LEVER 2
Price unavailable
. BRACKET, MASTER CYLINDER
3
Yamaha Motors
. BRACKET, MASTER CYLINDER4TD-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
. CAP, RESERVOIR
4
Yamaha Motors
. CAP, RESERVOIR4VV-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
. BOLT, LEVER
5
Yamaha Motors
. BOLT, LEVER4VV-H3945-00
Required: 1
. BOLT, LEVER
Price unavailable
. BOOT
6
Yamaha Motors
. BOOT4TD-F6339-00
Required: 1
. BOOT
Price unavailable
. PISTON, MASTER CYLINDER
7
Yamaha Motors
. PISTON, MASTER CYLINDER4TD-F5856-00
Required: 1
. PISTON, MASTER CYLINDER
Price unavailable
. PIN, PAD
8
Yamaha Motors
. PIN, PAD4TD-F5924-00
Required: 1
. PIN, PAD
Price unavailable
. CLIP
9
Yamaha Motors
. CLIP4TD-F5925-00
Required: 1
. CLIP
Price unavailable
. MASTER CYLINDER SUB ASSY
10
Yamaha Motors
. MASTER CYLINDER SUB ASSY4VV-F5870-00
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
-15%
FRONT STOP SWITCH ASSY
11
Yamaha Motors
FRONT STOP SWITCH ASSY5JH-H3980-01-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5JH-H3980-00-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
. FRONT STOP SWITCH ASSY
12
Yamaha Motors
. FRONT STOP SWITCH ASSYNM5-83980-10
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
-15%
Union Bolt (3GM)
14
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
