2001 Scooter YW100 - YW100 (4VPB) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

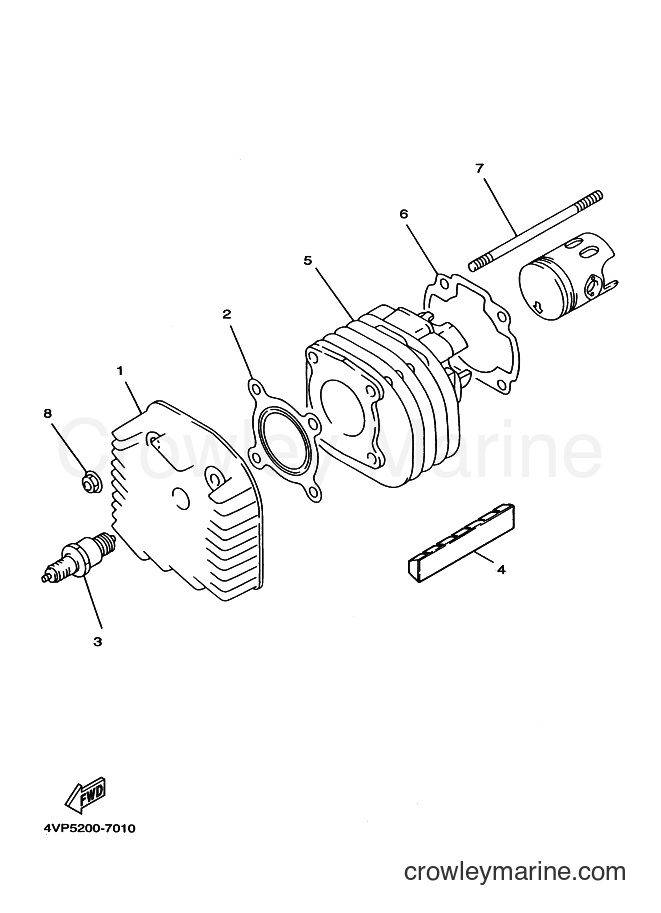

Yamaha Motors YW100 (4VPB) [010] - CYLINDER

Change View:

Yamaha Motors

HEAD, CYLINDER 14VP-E1111-00

Required: 1

HEAD, CYLINDER 1

Price unavailable

Yamaha Motors

GASKET, CYLINDER HEAD 14VP-E1181-00

Required: 1

GASKET, CYLINDER HEAD 1

Price unavailable

-15%

Yamaha Motors

BP7HS10 NGK SPLUGBP7-HS100-00-00

Required: 1

PLUG, SPARK

Supersedes: 94700-00836-00

~~$4.55~~

$3.87

You save $0.68

More details

Yamaha Motors

ABSORBER 24VP-E1162-00

Required: 1

ABSORBER 2

Price unavailable

Yamaha Motors

CYLINDER 14VP-E1311-10

Required: 1

CYLINDER 1

Price unavailable

Yamaha Motors

GASKET, CYLINDER5FA-E1351-00

Required: 1

GASKET, CYLINDER

Price unavailable

Yamaha Motors

BOLT, STUD90116-07834

Required: 4

BOLT, STUD

Price unavailable

-15%

Yamaha Motors

SPECIAL SHAPE NUT90179-07381-00

Required: 4

NUT

~~$6.49~~

$5.52

You save $0.97

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
