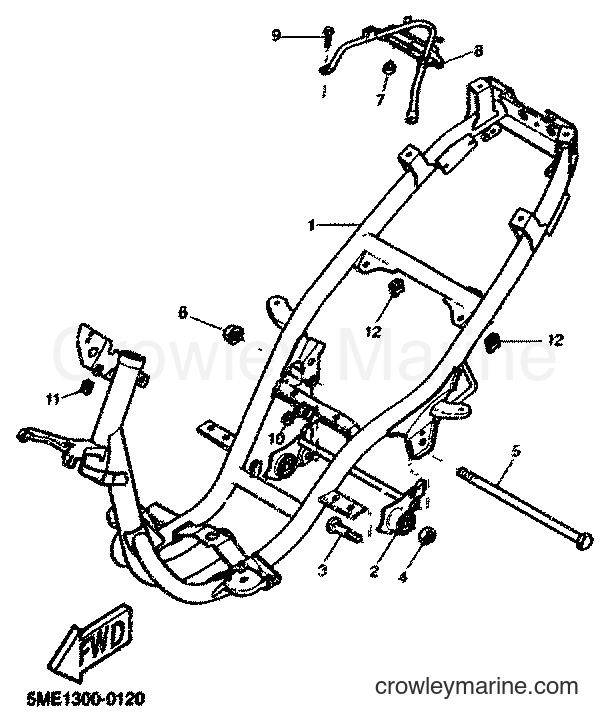

2001 Scooter YQ100 - YQ100 (5ME4) [080] FRAME diagram
![Yamaha Motors YQ100 (5ME4) [080] - FRAME](https://cdn.crowleymarine.com/yamaha/n5c8Asaj.png)
1
Yamaha Motors
FRAME COMP.5ME-F1110-00
Required: 1
FRAME COMP.
Price unavailable
2
Yamaha Motors
ENGINE BRACKET COMP.5ME-F1410-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Yamaha Motors
BOLT, ENGINE MOUNTING 15DS-F1481-00
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
-15%
4
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 2
NUT, SELF-LOCKING
$8.07
You save $1.42
-15%
5
Yamaha Motors
Engine Mounting Bolt3KJ-21481-00-00
Required: 1
BOLT, ENGINE MOUNTING 1
No longer availableSearch Nationwide Inventory
$14.87
You save $2.62
-15%
6
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
$5.52
You save $0.97
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
8
Yamaha Motors
REINFORCEMENT, TAIL5HE-F1232-00
Required: 1
REINFORCEMENT, TAIL
Price unavailable
9
Yamaha Motors
BOLT, FLANGE95817-03016
Required: 4
BOLT, FLANGE
Price unavailable
-15%
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
-15%
$6.37
You save $1.12
-15%
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 4
NUT, SPRING
Supersedes: 90183-05X00-00
No longer availableSearch Nationwide Inventory
$7.22
You save $1.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
