All diagrams for this model

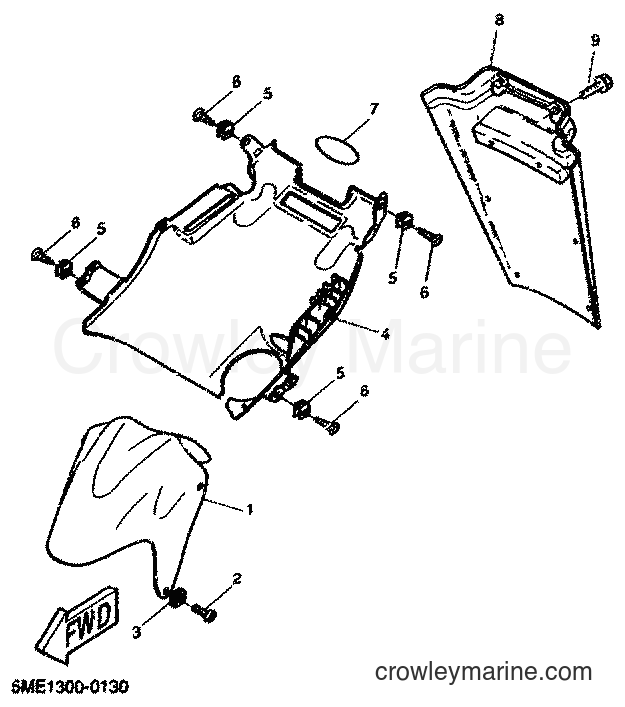

2001 Scooter YQ100 - YQ100 (5ME4) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ100 (5ME4) [010] - FENDER
Change View:
FENDER, FRONT 2
1
Yamaha Motors
FENDER, FRONT 25BR-F1556-01-P2
Required: 1
FENDER, FRONT 2
Price unavailable
FENDER, FRONT 2
1
Yamaha Motors
FENDER, FRONT 25BR-F1556-01-P5
Required: 1
FENDER, FRONT 2
Price unavailable
SCREW, PAN HEAD
2
Yamaha Motors
SCREW, PAN HEAD90157-05X02
Required: 4
SCREW, PAN HEAD
Price unavailable
WASHER, PLATE
3
Yamaha Motors
WASHER, PLATE90202-05X00
Required: 4
WASHER, PLATE
Price unavailable
GUARD, MUD
4
Yamaha Motors
GUARD, MUD5BR-F1629-00
Required: 1
GUARD, MUD
Price unavailable
SCREW, TAPPING
6
Yamaha Motors
SCREW, TAPPING90167-05X02
Required: 4
SCREW, TAPPING
Price unavailable
EMBLEM 3
7
Yamaha Motors
EMBLEM 35BR-F152A-50
Required: 1
EMBLEM 3
Price unavailable
GUARD, FLAP
8
Yamaha Motors
GUARD, FLAP5BR-F1642-10
Required: 1
GUARD, FLAP
Price unavailable
BOLT
9
Yamaha Motors
BOLT90109-06X05
Required: 2
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
