All diagrams for this model

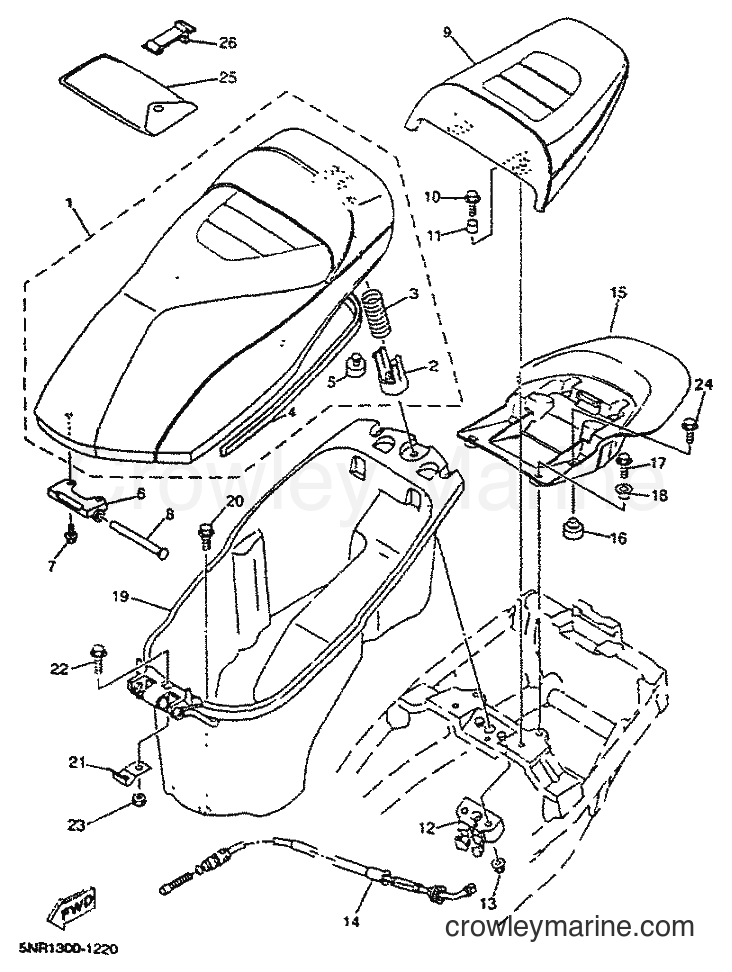

2001 Scooter YP150D - YP150D (5NS1) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP150D (5NS1) [010] - SEAT
Change View:
SINGLE SEAT ASSY
1
Yamaha Motors
SINGLE SEAT ASSY5NR-F4710-00
Required: 1
SINGLE SEAT ASSY
Price unavailable
. SUPPORT, SPRING 1
2
Yamaha Motors
. SUPPORT, SPRING 15DS-F4781-00
Required: 1
. SUPPORT, SPRING 1
Price unavailable
. SPRING
3
Yamaha Motors
. SPRING5DS-F479A-00
Required: 1
. SPRING
Price unavailable
. SEAL
4
Yamaha Motors
. SEAL5DS-F475M-00
Required: 1
. SEAL
Price unavailable
. PAD, SEAT
5
Yamaha Motors
. PAD, SEAT2RN-F4741-00
Required: 4
. PAD, SEAT
Price unavailable
HINGE, SEAT
6
Yamaha Motors
HINGE, SEAT5DS-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-15%
Flange Nut
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570N-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
-15%
PIN
8
Yamaha Motors
PIN90241-10015-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
TANDEM SEAT ASSY
9
Yamaha Motors
TANDEM SEAT ASSY5NR-F4750-00
Required: 1
TANDEM SEAT ASSY
Price unavailable
BOLT, FLANGE
10
Yamaha Motors
BOLT, FLANGE9582N-06020
Required: 2
BOLT, FLANGE
Price unavailable
-15%
COLLAR
11
Yamaha Motors
COLLAR90387-07573-00
Required: 2
COLLAR
Supersedes: 90387-06694-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
SEAT LEVER ASSY
12
Yamaha Motors
SEAT LEVER ASSY5AD-F4708-00
Required: 1
SEAT LEVER ASSY
Price unavailable
-15%
SPECIAL SHAPE NUT
13
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
CABLE, SEAT LOCK
14
Yamaha Motors
CABLE, SEAT LOCK5DS-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
HANDLE, SEAT
15
Yamaha Motors
HANDLE, SEAT5NR-F4773-00-0M
Required: 1
HANDLE, SEAT
Price unavailable
HANDLE, SEAT
15
Yamaha Motors
HANDLE, SEAT5NR-F4773-00-P0
Required: 1
HANDLE, SEAT
Price unavailable
HANDLE, SEAT
15
Yamaha Motors
HANDLE, SEAT5NR-F4773-00-P1
Required: 1
HANDLE, SEAT
Price unavailable
PAD, SEAT
16
Yamaha Motors
PAD, SEAT2RN-F4741-00
Required: 2
PAD, SEAT
Price unavailable
WASHER, PLATE
18
Yamaha Motors
WASHER, PLATE90201-06815
Required: 2
WASHER, PLATE
Price unavailable
BOX 1
19
Yamaha Motors
BOX 15DS-F473R-00
Required: 1
BOX 1
Price unavailable
BOLT
20
Yamaha Motors
BOLT90109-06X05
Required: 2
BOLT
Price unavailable
SPRING
21
Yamaha Motors
SPRING5DS-F4758-00
Required: 1
SPRING
Price unavailable
NUT, FLANGE
23
Yamaha Motors
NUT, FLANGE9570L-06300
Required: 1
NUT, FLANGE
Price unavailable
-15%
95817-06016-00
24
Yamaha Motors
95817-06016-009580M-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
TOOL KIT
25
Yamaha Motors
TOOL KIT5DS-F8100-00
Required: 1
TOOL KIT
Price unavailable
BAND, BATTERY
26
Yamaha Motors
BAND, BATTERY1TK-H2131-00
Required: 1
BAND, BATTERY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
