All diagrams for this model

2001 Scooter YP150D - YP150D (5NS1) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

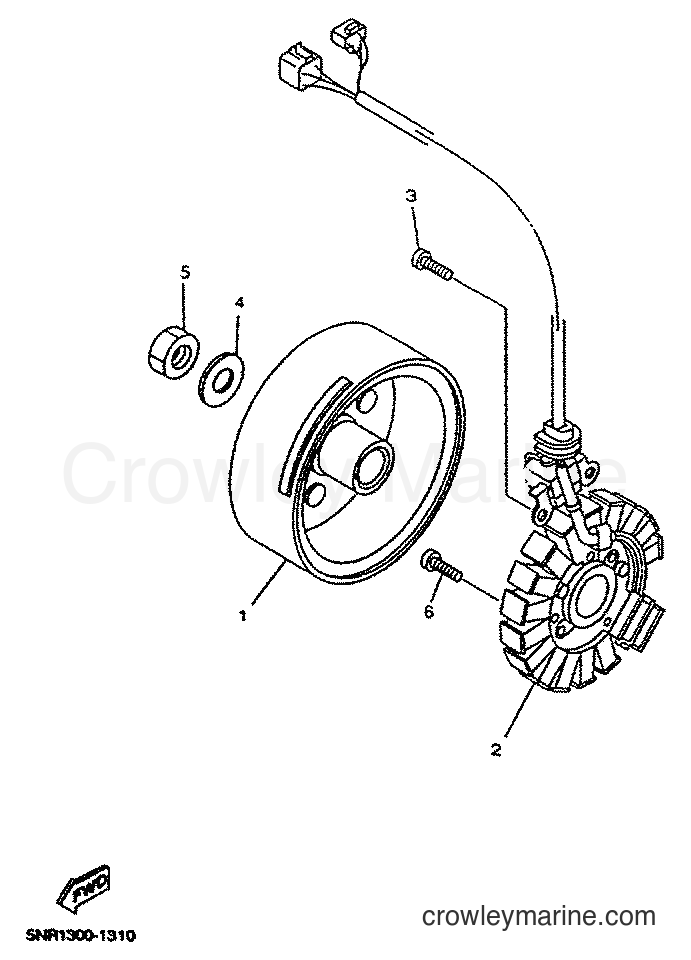

Yamaha Motors YP150D (5NS1) [010] - GENERATOR
Change View:
ROTOR ASSY
1
Yamaha Motors
ROTOR ASSY5DS-H5550-00
Required: 1
ROTOR ASSY
Price unavailable
STATOR ASSY
2
Yamaha Motors
STATOR ASSY5DS-H5510-00
Required: 1
STATOR ASSY
Price unavailable
SCREW
3
Yamaha Motors
SCREW90149-06X03
Required: 2
SCREW
Price unavailable
-15%
Plate Washer
4
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
-15%
Hexagon Nut
5
Yamaha Motors
Hexagon Nut90170-12181-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
SCREW, BINDING
6
Yamaha Motors
SCREW, BINDING90154-06X13
Required: 3
SCREW, BINDING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
