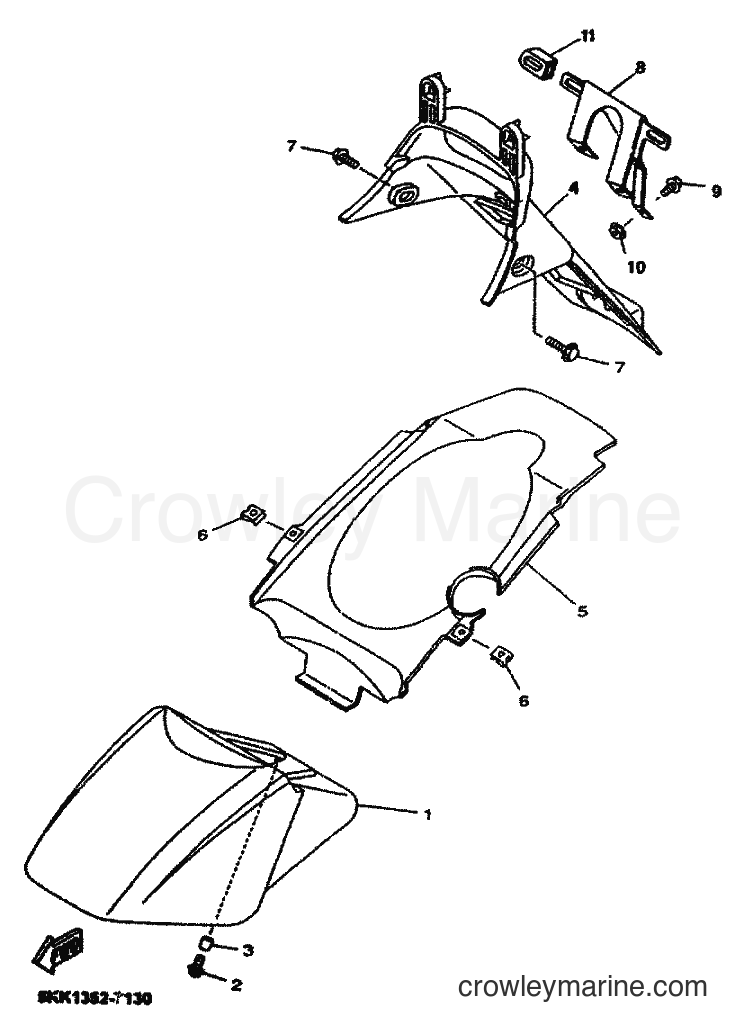

2001 Scooter YN100 - YN100 (5KKE) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN100 (5KKE) [010] - FENDER
Change View:
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT5AD-F1511-00-PF
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT5AD-F1511-00-PG
Required: 1
FENDER, FRONT
Price unavailable
FENDER, FRONT
1
Yamaha Motors
FENDER, FRONT5AD-F1511-00-3H
Required: 1
FENDER, FRONT
Price unavailable
BOLT, FLANGE
2
Yamaha Motors
BOLT, FLANGE9580L-06016
Required: 3
BOLT, FLANGE
Price unavailable
FENDER, REAR
4
Yamaha Motors
FENDER, REAR5KK-F1611-00
Required: 1
FENDER, REAR
Price unavailable
GUARD, MUD
5
Yamaha Motors
GUARD, MUD5AD-F1629-01
Required: 1
GUARD, MUD
Price unavailable
-15%
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BRACKET, LICENCE
8
Yamaha Motors
BRACKET, LICENCE5KK-H4551-00
Required: 1
BRACKET, LICENCE
Price unavailable
-15%
Socket Bolt
9
Yamaha Motors
Socket Bolt98907-06016-00
Required: 3
SCREW, BIND
Supersedes: 9890M-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
-15%
Flange Nut
10
Yamaha Motors
Flange Nut95707-06500-00
Required: 3
NUT, FLANGE
Supersedes: 9570N-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
DAMPER
11
Yamaha Motors
DAMPER5KK-H4559-00
Required: 2
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
