2001 Scooter YH50 - YH50 (5JB6) [030] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

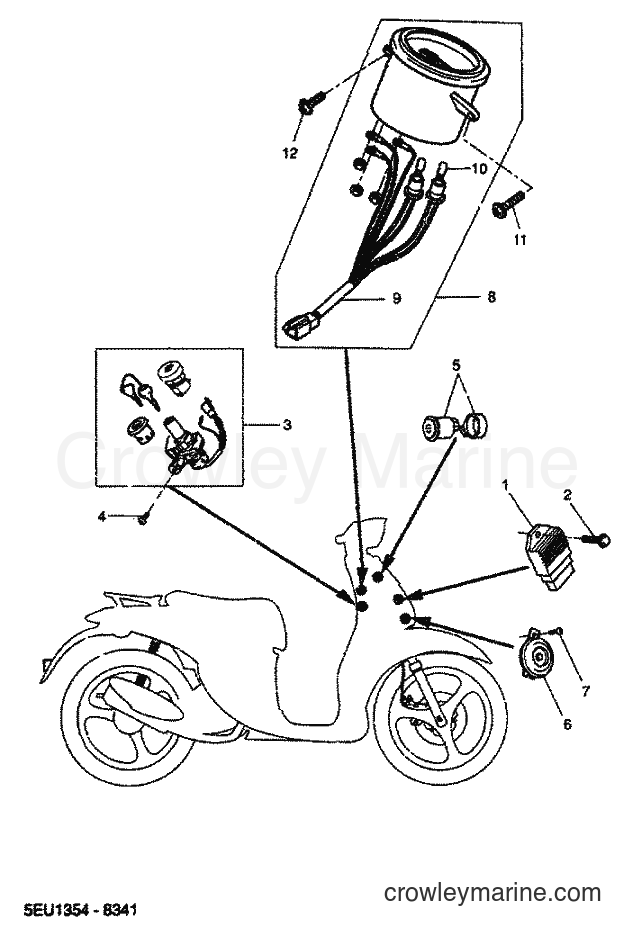

Yamaha Motors YH50 (5JB6) [030] - ELECTRICAL 1

Change View:

Yamaha Motors

RECTIFIER & REGULATOR ASSY5FX-H1960-00

Required: 1

RECTIFIER & REGULATOR ASSY

Price unavailable

Yamaha Motors

SCREW, BINDING90154-06X02

Required: 1

SCREW, BINDING

Price unavailable

Yamaha Motors

KEY SET5EU-H2021-01

Required: 1

KEY SET

Price unavailable

-15%

Yamaha Motors

BOLT90109-06851-00

Required: 2

BOLT

~~$1.95~~

$1.66

You save $0.29

More details

Yamaha Motors

FLASHER RELAY ASSY5BK-H3350-01

Required: 1

FLASHER RELAY ASSY

Price unavailable

Yamaha Motors

HORN5EU-H3371-01

Required: 1

HORN

Price unavailable

Yamaha Motors

SCREW, BINDING90154-06X02

Required: 1

SCREW, BINDING

Price unavailable

Yamaha Motors

FUEL METER ASSY5EU-H5750-00

Required: 1

FUEL METER ASSY

Price unavailable

Yamaha Motors

. CORD 15EU-H572A-00

Required: 1

. CORD 1

Price unavailable

Yamaha Motors

. BULB5BK-H3517-00

Required: 2

. BULB

Price unavailable

-15%

Yamaha Motors

Tapping Screw90167-05X01-00

Required: 1

SCREW, TAPPING

No longer availableSearch Nationwide Inventory

~~$4.15~~

$3.53

You save $0.62

More details

Yamaha Motors

SCREW, TAPPING90167-05X02

Required: 1

SCREW, TAPPING

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
